Solar Power Manager Embedded 10000mAh Li-Po Battery, Supports 6V~24V Solar Panels
Solar Power Manager Embedded 10000mAh Li-Po Battery, Supports 6V~24V Solar Panels
Compatible with 6V~24V solar panels, embedded 10000mAh Li-po battery
Recharged From Solar Panel, Or TYPE-C Power Adapter
5V/3A Regulated Output
Product Features
The Solar Power Manager (B) is compatible with general 6V~24V solar panels. It can recharge the 3.7V rechargeable Li-po battery through a solar panel or USB TYPE-C connection and provides 5V / 3A regulated output (with multi protocols support including PD/QC/FCP/PE/SFCP).
The module features MPPT (Maximum Power Point Tracking) function and multi-protection circuits, therefore, it is able to keep operating with high efficiency, stability, and safety. It is suitable for solar-powered, low-power IoT, and other environmental protection projects.
- Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
- Flexible battery recharging: from a solar panel or USB TYPE-C power adapter
- Compatible with 6V~24V solar panels, DC-002 jack input or screw terminal input
- Onboard MPPT SET switch, select the level closed to input level to improve recharging efficiency
- An onboard aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance
- PH2.0 battery connector, with embedded 10000mAh 3.7V rechargeable Li-po battery
- Several LED indicators, for monitoring the status of solar panel and battery
- Multi-protection circuits: over charge / over-discharge / reverse-proof / overheat / over current, stable and safe to use
Specifications
| SOLAR POWER MANAGER (B) | |
|---|---|
| SOLAR IN | 6V ~ 24V (18V by default) |
| RECHARGING | Solar panel, power adapter, USB |
| BATTERY | 3.7V 10000mAh Li-po battery |
| USB INPUT | 5V (TYPE-C, with PD quick charge support) |
| 5V OUTPUT | 5V / 3A (USB-OUT, TYPE-C) |
| RECHARGING CUTOFF VOLTAGE | 4.2V ± 1％ |
| OVER DISCHARGING PROTECTION VOLTAGE | 2.9V ± 1％ |
| SOLAR PANEL RECHARGING EFFICIENCY | ~78% |
| USB RECHARGING EFFICIENCY | ~93% |
| BATTERIES BOOST OUTPUT EFFICIENCY | ~92% |
| QUIESCENT CURRENT (MAX) | <2mA |
| CASE | Metal case |
| OPERATING TEMPERATURE | -40℃ ~ 85℃ |
| DIMENSIONS | 108.0 × 71.0 × 25.2mm |
Supports 6V~24V Solar Panels
5-Level Voltage Switch, For Setting Solar Panel Input Voltage To Improve Efficiency

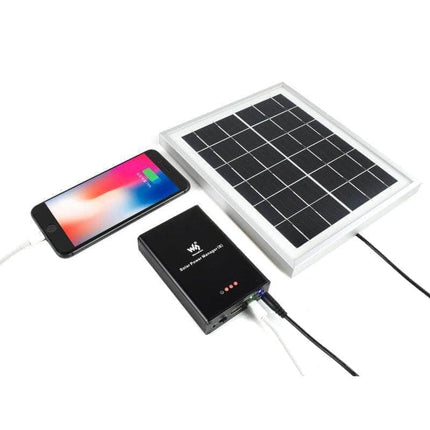

Application Example
Solar-Powered Control System For MCUs / Development Boards Like:
Raspberry Pi / Jetson Nano / Arduino...
More Possibilities
Suitable For Mini Solar Road Lamp, Intelligent Agriculture, Or IoT Applications
-

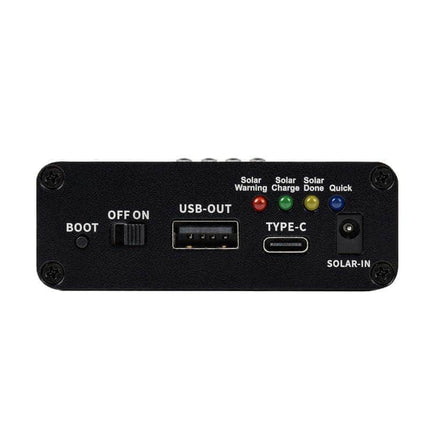

Solar panel input

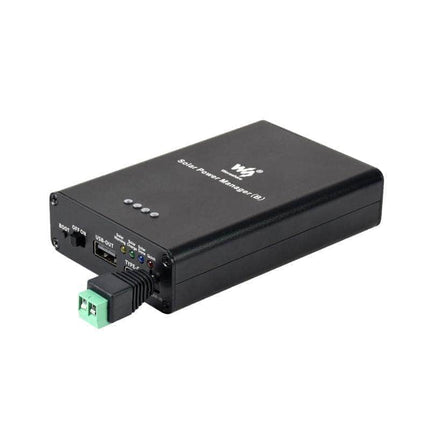

recharging through DC-002 jack or screw terminal -
TYPE-C recharging/output port
supports 5V power adapter for recharging
supports PD protocol quick charge adapter
supports PD/QC/FCP/PE/SFCP multi protocols output -
USB output port
5V/3A regulated output
supports PD/QC/FCP/PE/SFCP multi protocols output
- Battery on/off switch
- BOOT button
- Quick charge indicator
-
Solar panel status indicators
Solar Warning: lights up if solar panel is reversed
Solar Charge: lights up when recharging from solar panel
Solar Done: lights up when the battery is fully recharged - Battery life indicators
Outline Dimensions
