Premium Industrial Sollae 1-Port Ethernet Remote I/O Controller Modbus/TCP - CIE-H12

  • $99.00
  • Save $50
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

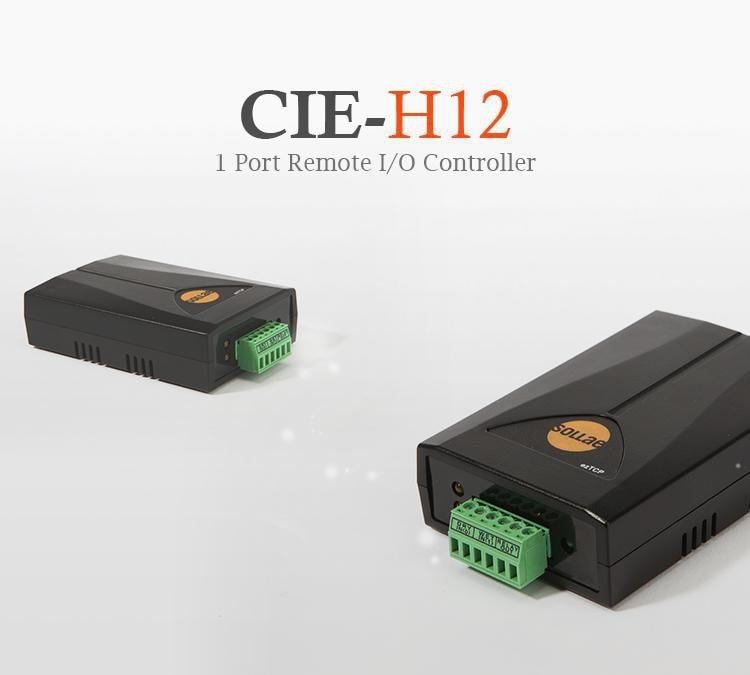

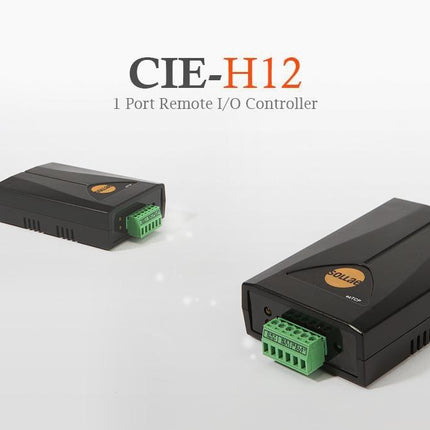

  • Sollae 1-Port Ethernet Remote I/O Controller Modbus/TCP - CIE-H12 (Industrial Premium Controller)

    CIE-H12 is a high-quality Ethernet remote I/O controller that has 2 input ports and 1 relay output port. This remote I/O controller is additionally equipped with a 10base-T and 100base-TX LAN port to establish an Ethernet networking connection. CIE-H12 mainly enables you to extend the distance of the I/O control system, therefore you are able to remotely control and monitor your I/O devices over the Internet from anywhere in the world.

    This Ethernet remote I/O controller provides two input options, dry contact, and wet contact, to meet diverse needs. You will benefit from this compact and cost-effective Ethernet I/O controller if you have just one or two I/O equipment to control and monitor.

    As well as with a simple management tool (ModMap), this Ethernet remote I/O controller comes preloaded with a user web page, which is available to customize with your own graphic images, to ease control and surveillance on the website. Besides, a Macro function allows each relay output to be automatically controlled as set by simple logic formula. Thanks to these features, CIE-H12 can be applied in various environments such as Remote PC Power Control, Internet Switch, etc.



    Features:

    • Compact size and cost-effective
    • 2 x digital input port (dry/wet contact)
    • 1 x digital output port
    • Modbus/TCP
    • Controlled by simple logic formula operating autonomously
    • Web-based control over custom web page
    • Used as Internet Switch
    • Free mobile application

    Specifications:

    Digital Input Port:
    2 Ports, Interface Isolated by Photo-coupler
    Electric Parameter: MAX VIL=1.2V, MIN VIH=1.8V
    Maximum Input Voltage: DC 24V

    Digital Output Port:
    1 Ports, Interface Isolated by Relay
    Relay Capacity: 5A (DC28V)
    Network Interface:
    10Base-T/100Base-TX Ethernet (RJ45)
    Ethernet Speed Auto Sense
    1:1 or Cross-over Cable Auto Sense
    1000 VAC Isolation
    Operating Environment:
    Input Voltage: DC 5±0.5V
    Power Consumption: 305mA typical
    Operating Temperature: 0℃ ~ +70℃
    Storage Temperature: -40℃ ~ +85℃
