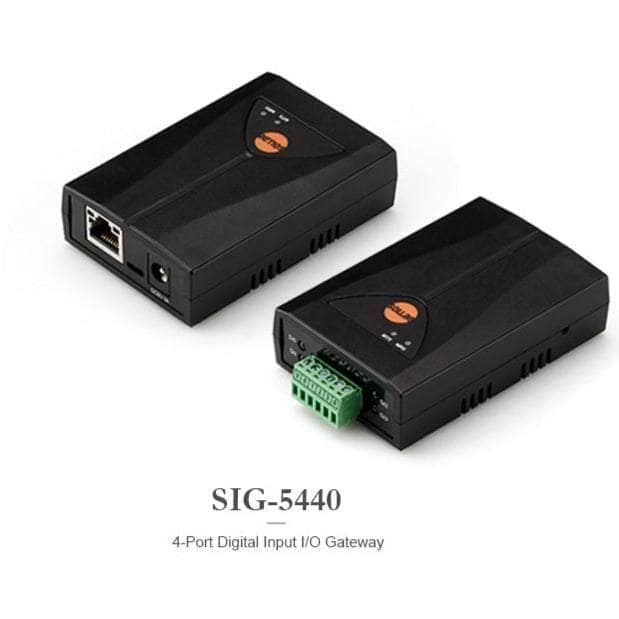

Sollae SIG-5440 4-Port Digital Input I/O Gateway

Description

Sollae SIG-5440 4-Port Digital Input I/O Gateway

SIG-5440 is a remote I/O gateway equipped with 4 digital input ports and an Ethernet interface. The device can be used to monitor the state of equipment/sensors from remote data centers or HMI devices via Modbus TCP protocol. The device can also be monitored by using any Modbus TCP software/app.



Especially, we provide free software and a smartphone app, called ModMap, which lets you manage multiple devices easily and conveniently.

Each individual digital input also has a counter function. This makes SIG-5440 not only suitable for state monitoring, but also counting applications.

The SIG-5440 is the ideal solution for integrating digital inputs into SCADA systems. It ensures accurate data readings and seamless data transmission via Modbus TCP.

Each device supports up to four TCP connections simultaneously, enabling to monitor equipment/sensors from different HMI/software/apps at the same time.

Features

  • 4 digital input ports: Wet contact or Dry contact input
  • Support counter function on digital input ports
  • Support Modbus/TCP
  • Support multiple TCP connections (Max. 4 channels)
  • Support the Internet Switch
  • Free Modbus/TCP program
  • Industrial temperature range (-40℃ ~ +85℃)

Specififcations:

Digital Input
Input Type Dry Contact / Wet Contact / NPN / PNP
Input Voltage Range 4.5V ~ 25V
Number of Ports 4 ports

Network Physical Interface
Network Interface 10Base-T/100Base-TX Ethernet(RJ45)
Ethernet Speed Auto Sense
1:1 or Cross-over Cable Auto Sense

Software Functions
Protocols IPv4/IPv6 Dual Stack
TCP/UDP
ICMP, DHCP, mDNS, Modbus/TCP
SSL/TLS

Indicators
LED MTX, MRX, Di0, Di1, Di2, Di3

Management
spFinder Configuration and Monitoring Tool
Security Password

Dimension
Size 94mm x 57mm x 23mm
Weight about 65g

Operating Environment
Input Voltage DC 5±0.5V
Protection Reverse Voltage Protection / Surge Protection
Current Consumption typically, 150mA
Operating Temperature -40℃ ~ +85℃
Storage Temperature -40℃ ~ +85℃



Technical Documents

BASIC
1 SIG-5440 DataSheet
2 SIG-5440 User Manual
3 CE Сertificate
4 FCC Сertificate
5 Declaration of RoHS Compliance
MODBUS/TCP
1 Modbus/TCP Protocol
2 SIG Series I/O Applications (Internet Switch)
SOFTWARE
1 ModMap Users' manual
FAQ
1 SIG-5440 Frequently Asked Questions faq icon


Utilities





Read more

Sollae SIG-5440 4-Port Digital Input I/O Gateway

Product form
Free pickup in our shop(s)

SKU: SIG-5440-BO

$249.00 $229.00 Excl. GST

$229.00
New stock coming, dispatch in 8-10 days.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
