7″ Touch Screen All-In-One Kit for Raspberry Pi CM4, 5MP Camera

  • $249.00
  • Save $50
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

    7″ Touch Screen All-In-One Kit for Raspberry Pi CM4, 5MP Camera



     * The Compute Module 4 is NOT included.

    Specifications
    CM4 SOCKET suitable for all variants of Compute Module 4
    NETWORKING Gigabit Ethernet RJ45
    M.2 M KEY, supports NVME SSD
    USB USB 2.0 × 4
    CONNECTOR isolated RS485, RS232, GPIO, and I2C
    DISPLAY 7inch, 800 × 480 pixels, 5-points capacitive touch, toughened glass panel
    CAMERA 5MP, F2.4, 3.89mm fixed focal length, supports video recording
    VIDEO HDMI, supports 4K 30fps output
    RTC Real-time clock with battery socket and ability to wake Compute Module 4
    STORAGE MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
    FAN 5V/12V, allows speed adjustment and measurement
    SPEAKER 8Ω 2W dual track speakers
    POWER INPUT 7-36V
    DIMENSIONS 196.68 × 114.42mm

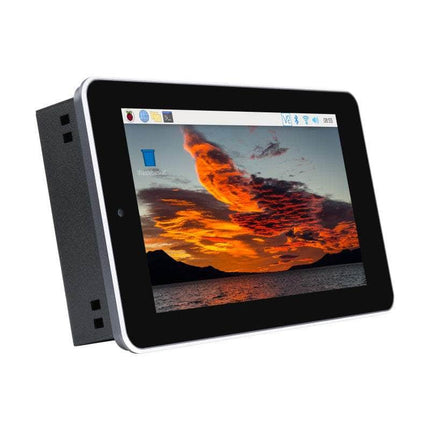

    Toughened Glass Screen



    7inch Capacitive Touch Screen, 5-Points Capacitive Touch Along With Toughened Glass Panel, More Safe To Use

    5MP Front Camera
    Design Details

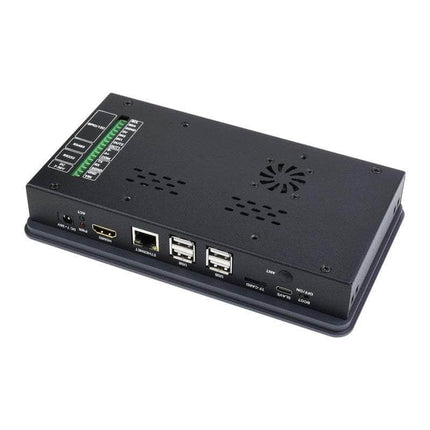

    Rich Interfaces

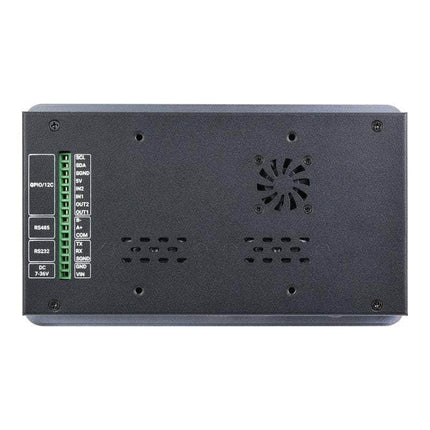

    Providing Interfaces Including: CSI, HDMI, USB, M.2, ETH, RS232, RS485

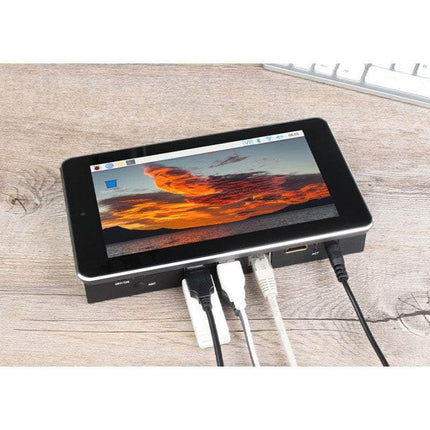

    Application Example

    Suitable For Raspberry Pi Projects Where Multi Peripherals Are Required, Or Other Industrial Applications



    Adjustable Brightness Via Software
    What's On Board
    1. CM4 socket
      suitable for all variants of Compute Module 4
    2. DC power supply
      7 ~ 36V DC input
    3. CM4 status indicator
      PWR: Raspberry Pi power indicator
      ACT: Raspberry Pi operating status indicator
    4. HDMI connector
      supports 4K 30fps output
    5. RJ45 Gigabit Ethernet
      10/100/1000M compatible
    6. USB 2.0 ports
      4x USB 2.0, for connecting sorts of USB devices
    7. Micro SD card slot
      for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)
    8. USB SLAVE port
      USB programming port
    9. BOOT selection
      ON: CM4 will be booted from USB-C interface
      OFF: CM4 will be booted from eMMC or Micro SD card
    10. MIPI CSI connector
      connected to the 5MP front camera
    11. Isolated I2C
      for controlling or reading data from devices via I2C
    12. Isolated GPIO
      for controlling or detecting devices via GPIO
    13. Isolated RS485
    14. Isolated RS232
    15. DC power supply
      7 ~ 36V DC input
    16. RS485 terminal resistor and GPIO logic level selection
      RS485: connect/disconnect the 120R resistor
      GPIO: GPIO logic level selection

    1. RTC battery holder
      supports CR1220 button cell
    2. Touch screen header
      connected to the capacitive touch screen
    3. Display connector
      connected to the 7inch 800×480 display
    4. M.2 M KEY
      supports M.2 M KEY NVME SSD, or other communication modules using PCIe channel
    5. Speaker header
      audio output
    6. FAN header
      for connecting cooling fan, allows speed adjustment and measurement
    7. RTC interruption configuration
      GL-EN: CM4 powerdown on RTC interruption
      PI-RUN: CM4 will reboot on RTC interruption
      D16: D16 pin is triggered on RTC interruption (default)
    8. System function configuration
      BT_DIS: Bluetooth disabled, for CM4 with antenna variant ONLY
      WiFi_DIS: WiFi disabled, for CM4 with antenna variant ONLY
      WP_DIS: boot mode switch, ONLY be used when NOT booted from eMMC or SD card
    9. FAN power supply selection
      select 5V (default) or 12V power to drive the fan
    10. IO-VREF selection
      set the CM4 IO logic level as 3.3V (default) or 1.8V
    11. RS485 switch
      GPIO13/12: using ttyAMA1 device (default)
      GPIO15/14: using ttyS0 device
    12. RTC/FAN I2C bus selection
      SDA0/SCL0: I2C-10 is shared with CSI/DSI
      GPIO3/2: I2C-1 is shared with 40PIN GPIO (default)
    Outline Dimensions
