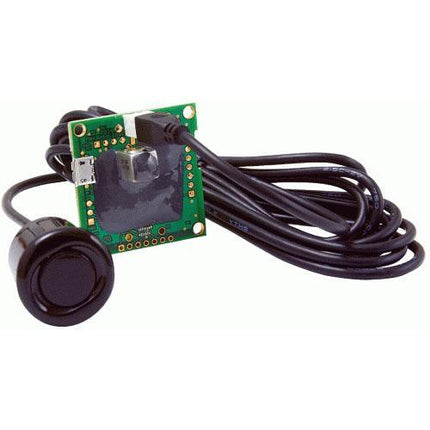

MB8450 MaxBotix Ultrasonic Car Detection Sensor

  • $109.00
  • Save $80
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • MB8450 MaxBotix Ultrasonic Car Detection Sensor

    The MB8450 Car Detection Sensor is a low‑cost vehicle detection sensor that uses ultrasonic technology for non-contact sensing. The MB8450 is designed to be an easy to use the sensor for applications where vehicle detection is desired. This sensor is great for applications such as vehicle kiosks, ATMs, and bank drive thru’s.

    The MB8450 Car Detection Sensor provides a component module solution that offers an easy to use interface, calibrated beam patterns, stable range and proximity information, and a host of other features detailed in the product datasheets.

    The Interface

    The MB8450 Car Detection Sensor interface was designed to be easy and intuitive to use. The interface is an easy to use Micro-B USB connection, the same connection used on many smartphones.

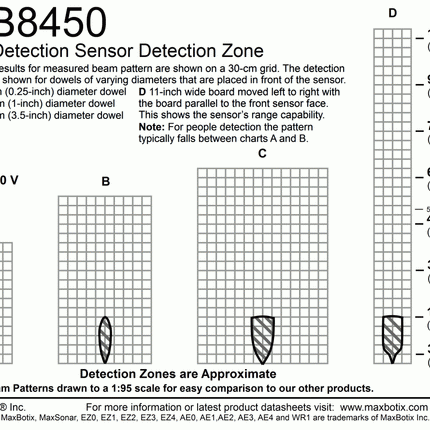

    The Controlled Beam Shape

    The MB8450 Car Detection Sensor offers a controlled beam that is designed to reject small objects (clutter) outside of the central beam area without detecting frivolous or unwanted targets.

    The Calibration

    Each MB8450 Car Detection Sensor is tested for proper operation at our facility and comes with a factory calibrated beam pattern to ensure consistent operation of the sensor even from part‑to‑part.

    The MB8450 Car Detection Sensor automatically calibrates to its environment after power-up, before taking the first reading. Because this power-up calibration only occurs on power-up, it is recommended that users power off and then on the sensor when temperature or humidity conditions change.

    Product Specifications

    • USB interface
    • ~ 4-second target acquire time
    • ~ 5-second target release time
    • Multi-sensor operation
    • ~250mS between range readings
    • Maximum range of 500 cm (196 inches)
    • Preset proximity detection zone of 150cm
    • Vehicle detection sensor
    • 42kHz Ultrasonic sensor measures distance to objects
    • RoHS compliant
    • Virtually no sensor dead zone, objects closer than 50 cm typically range as 50 cm
    • Small, light weight module
    • Designed for easy integration into your project or product

    Product Documents

    Car Detection Sensor-datasheet

    Application Notes

    Terminal.zip
    Terminal Configuration
    Sensor Selection Guide
    RoHS Declaration of Conformity
    CE Declaration of Conformity
    MTBF Report
    High Resolution Pictures.zip
