Milesight AM107 and AM104 LoRaWAN Mutli Ambience Monitoring Sensors
Milesight AM100 LoRaWAN Mutli Ambience Monitoring Sensors

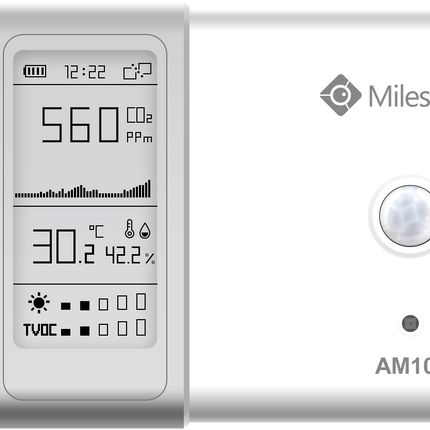

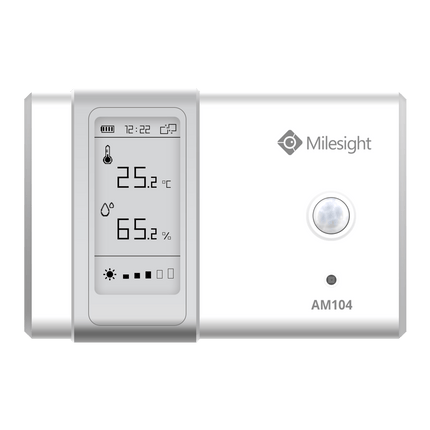

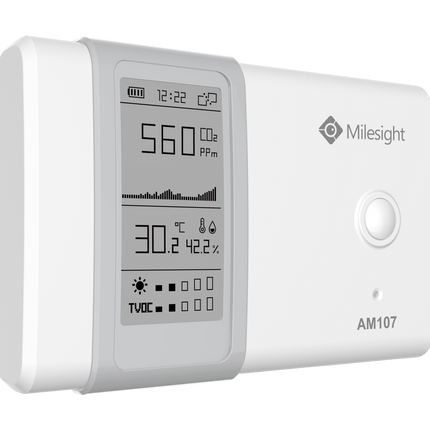

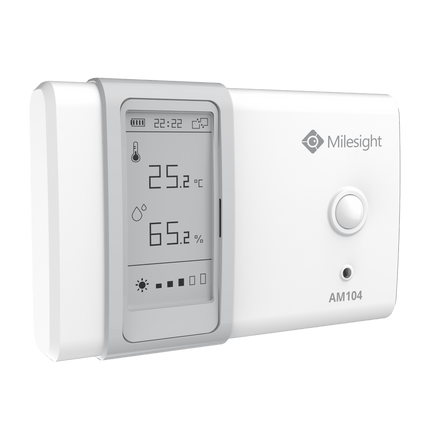

Milesight AM100 Series consists of multiple smart sensors that are built specifically for indoor ambient measurements. It has a clean and modern design that makes it discrete in indoor ambience.
- AA Battery Powered and charging via USB
- NFC enabled, Configuring via NFC
- Easy Installation
- Multiple Sensors in One (Motion, Humidity, Temperature, Light, CO2, TVOC, Barometric Pressure)
- E-Ink Screen Display
Specifications
AM104 | AM107 | |||
Hardware | Frequency | AU915/AS923 | ||
Tx Power | 20dBm | |||
Sensitivity | -147dBm @300bps | |||
Mode | OTAA/ABP | |||
Power Supply | 2 × alkaline AA batteries | |||
Battery Lifetime | 1 years (SF7) 0.9 years (SF12) |
1.5 years (SF7) 1.2 years (SF12) |
||
Sensors | ||||
Temperature | Range | -40°C to + 70°C (operating temperature for screen: 0-45°C) | ||
Accuracy | ±0.3°C (0°C – 70°C), ±0.6°C (-40°C – 0°C) | |||
Humidity | Range | 0% to 100% RH | ||
Accuracy | ±3% RH (10% – 90%), ±5% RH (0% – 10%, 90% – 100%) | |||
PIR | Detection Area | 94 ° Horizontal, 82 ° Vertical | ||
Detection Distance | 5 m | |||
Light | Range | 60000 lux (Visible + IR, IR) | ||
Accuracy | ±30% | |||
CO2 | Range | 400 – 5000 ppm | N/A | |
Accuracy | ±30 ppm or ±3 % of reading | |||
TVOC | Range | 0 – 60000 ppb (total VOC) | ||
Accuracy | ±15 % of reading | |||
Long-term Stability | 1.3 % accuracy drift per year | |||
Barometric Pressure | Range | 300 – 1100 hPa (-40°C – 85°C) | ||
Accuracy | ±1 hPa |
Documentations:
AM100 Series User Guide
AM100 Series Payload Structure
