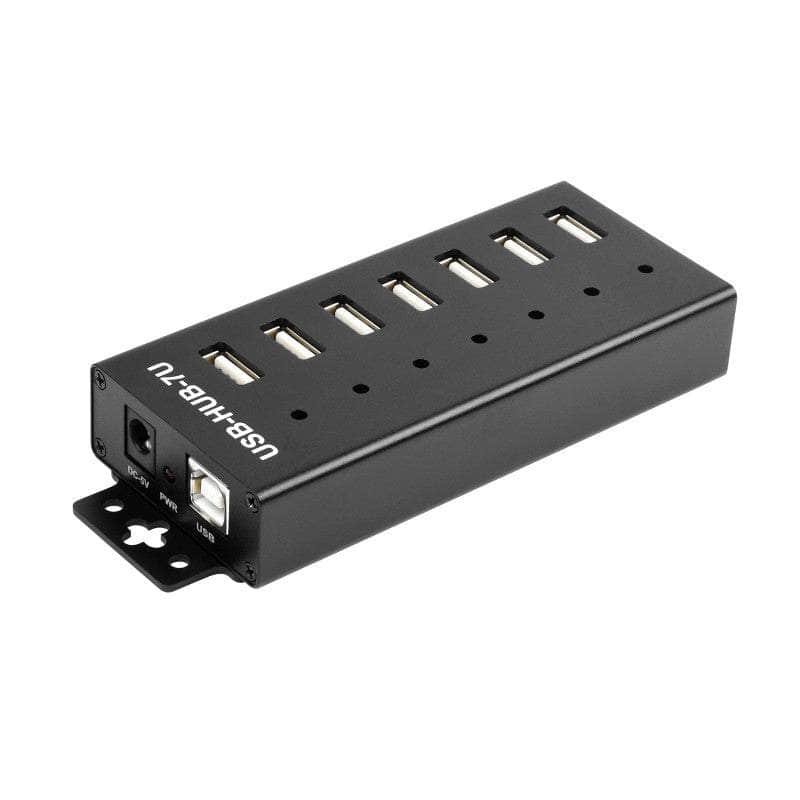

Industrial Grade USB HUB Extending 7x USB 2.0 Ports

  • $59.00
  • Save $10
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

    Industrial Grade USB HUB Extending 7x USB 2.0 Ports

    Industrial-Grade Materials, Stable And Reliable Performance,
    Rugged and durable, With A Variety Of Protective Functions
    Suitable For Industrial/Office With Higher Level Device Requirements

    Features at a glance:

    • 7x extended USB ports, compatible with USB 2.0 / 1.1
    • Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 7x concurrent USB connections
    • ESD protection for each USB port, preventing electric surge damage and data loss
    • Over-voltage protection, effectively preventing other high-voltage power inputs from damaging the connected devices
    • Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
    • LED indicators for monitoring operating statuses of power supply and USB ports
    • Industrial grade metal case, rugged & durable, with mounting holes for easy installation


    USB PORT USB 2.0
    BAUD RATE Theoretically up to 480Mbps
    USB HUB INPUT operating voltage: 5V
    connector: USB-B
    USB OUTPUT operating voltage: 5V@Imax:1.2A①
    connector: USB-A
    EXTERNAL POWER power supply voltage: DC 5V②
    connector: DC jack
    OS SUPPORT Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP
    ① up to 1.2A Max output current for each USB ports, when there's enough power input

    7x Extended USB Ports
    Allows Concurrent Use Of Multiple Devices

    Extended 7x USB2.0 Ports For Raspberry Pi Or PC At The Same Time
    Avoid Repeated Unplugging, More Convenient To Use

    Industrial Grade USB HUB Chip

    MTT Technology, 7x Concurrent USB Connections, More Stable And Smooth

    Multiple Protections, More Safe

    Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, Under Voltage Lock-Out, 8KV ESD Protection, Filtering Protection...

    Multiple OS Support, Plug & Play
    Application Environments

    Suitable For Industrial/Office Environments With Higher Level Device Requirements

    7x USB
    Industrial chip, allows 7x USB connections, stable & smooth


    Small and compact, easy to install
    Flexible installation, USB port extension for sorts of devices


    Reserved screw holes
    Easy to mount, industrial metal case, rugged & durable


    Detachable bracket
    Suitable for industrial applications in different scenarios

    Common Device Support

    Interface Introduction

    Outline Dimensions
