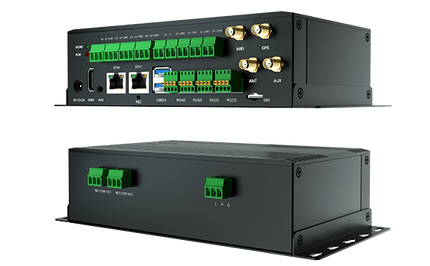

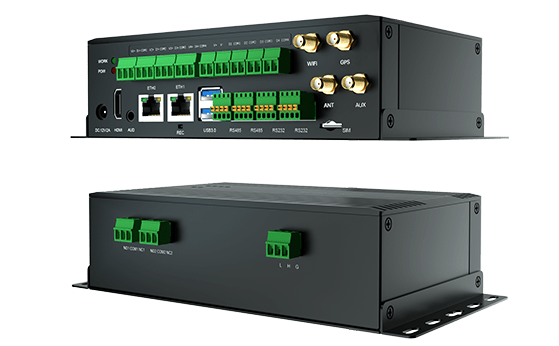

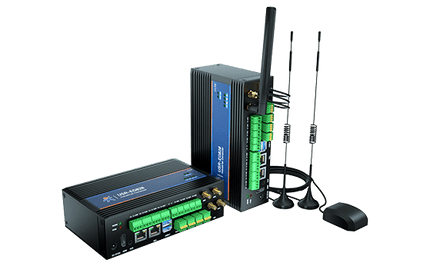

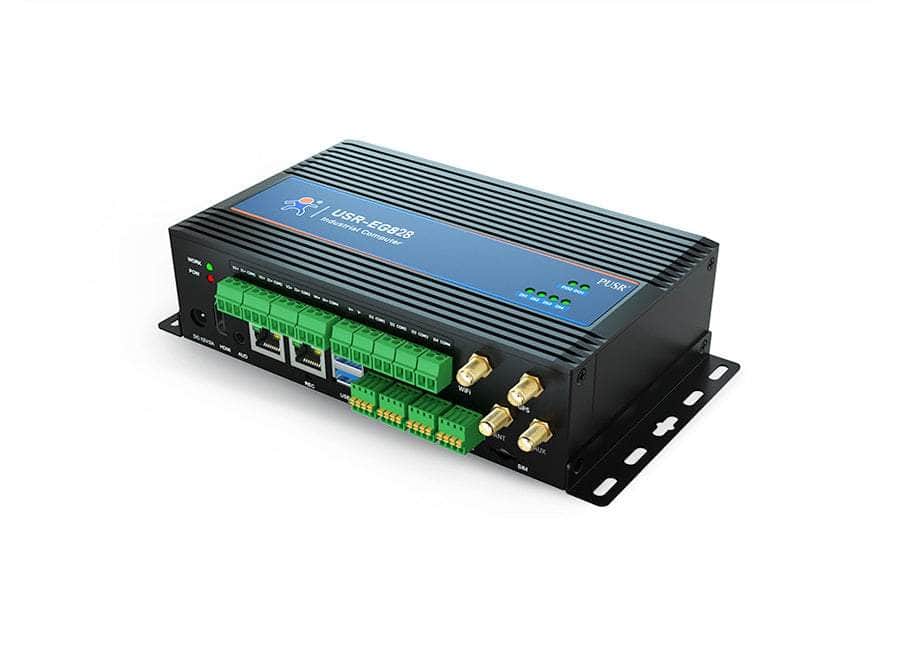

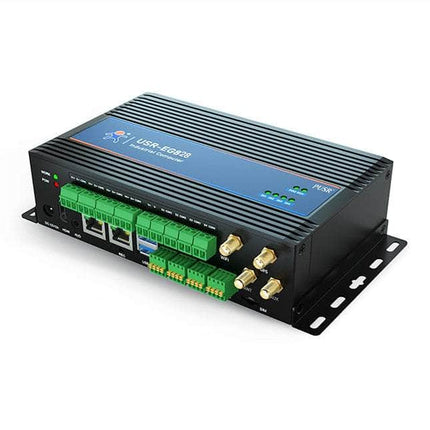

USR-EG828 Edge Gateway Industrial ARM Embedded Computer with 4G

Description



USR-EG828 Industrial ARM Embedded Computer Edge Gateway with 4G

USR-EG828 is a new generation of industrial box computer, supporting global 4G cellular frequencies. It is a Linux open source and an ARM architecture industrial computer which is eqquiped with a 4-core 64-bit high-performance ARM architecture CPU design with a main frequency of up to 2.0G ensuring the strong general computing performance. It has AI neural network processor NPU integrated, computing performance up to 1.0TOPS, support a variety of AI development tools and interfaces. It comes with Linux OS with Android OS optional.

Powerful Hardware Performance

  1. Processor: Rockchip RK3568, ARM architecture, Cortex-A55 with 4-core 64-it, main frequency up to 2.0 GHz
  2. GPU: ARM G52 2EE GPU, embedded high performance 2D acceleration hardware
  3. AI Algorithm: Improve edge computing speed with AI power based on 1 Tops
  4. Memery&Storage: 4G DDR, 32G SSD

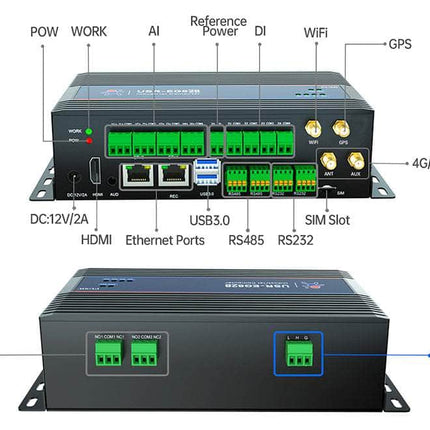

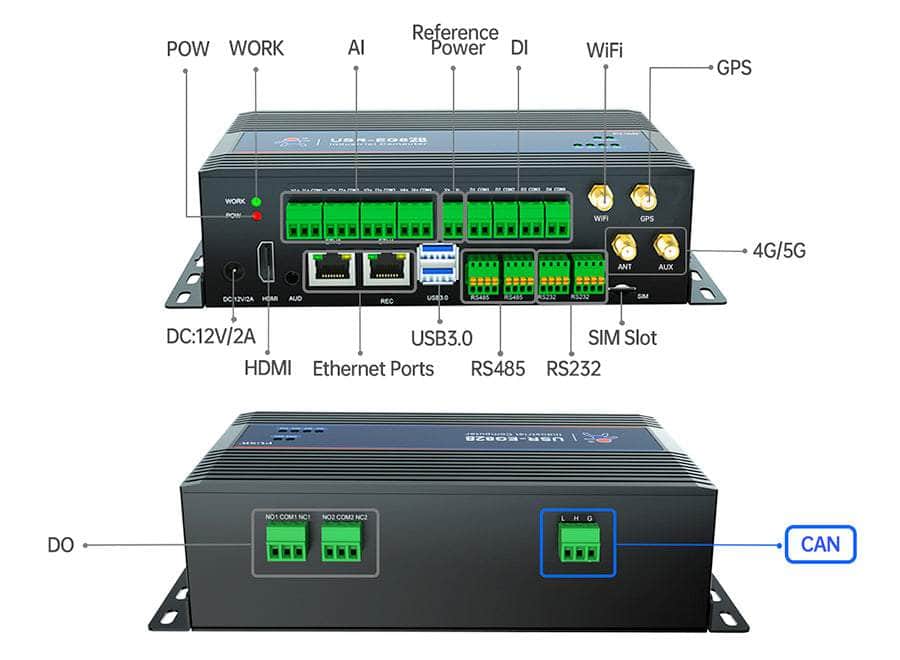

Rich Hardware Interface

  • I/Os: AI, DI, DO
  • Serial Port: RS232, RS485, CAN
  • Others: Ethernet ports, WiFi, GPS, USB3.2, etc.

Linux OS, easy for your deployment of applications

  1. Released Linux Ubuntu 20.04 version, supporting visual development
  2. Full integration of interface driver, faster application development
  3. Re-installed Node-RED and Docker, save your time
  4. Android OS is optional

Multi-network access, reliable data transmission

  1. Support globle 4G cellular networks, Gigabit Ethernet and Wi-Fi, mutual backup of networks
  2. Built-in router function: VPN, firewall, and network diagnosis to ensure data security
  3. With PUSR platform, can realize remote networking, quick network construction

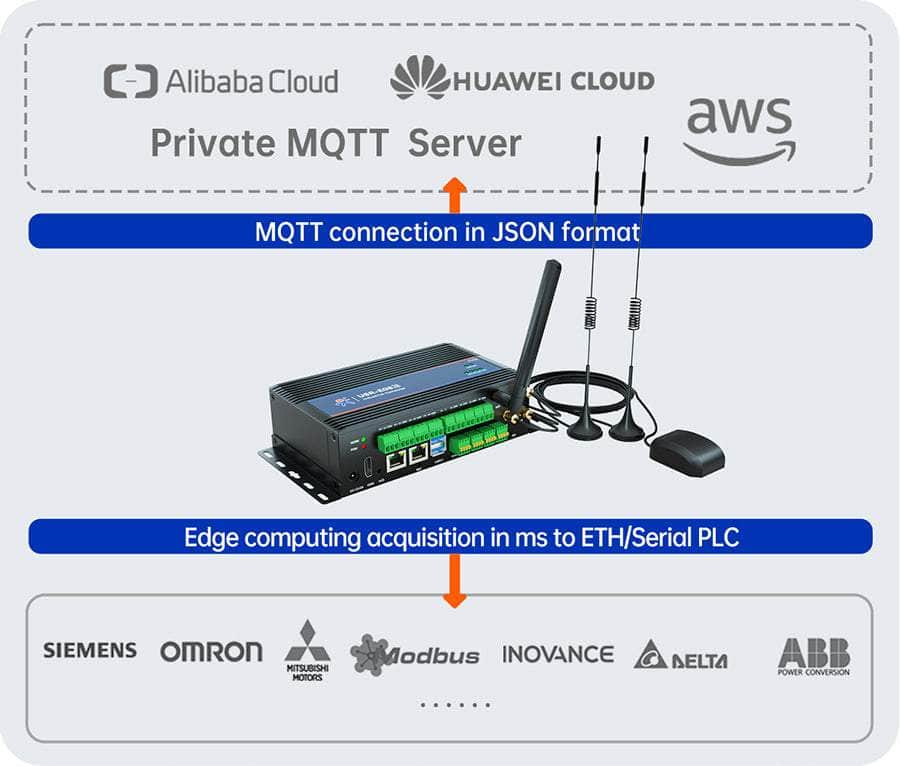

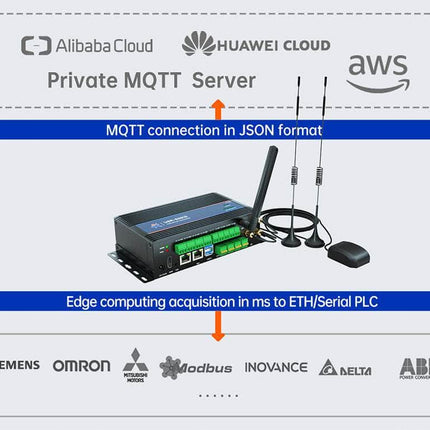

Edge Computing Gateway

  1. Built-in edge computing service, simple configuration, fast application
  2. Support multiple industry protocols and PLC protocols, applicable for different device
  3. Local linkage, flexible reporting method, communication with MQTT server or mainsteam IoT platform

Support video AI model

  1. Support AI model such as: Caffe/Mxnet/TensorFlow/TF Lite/ONNX/Darknet
  2. Rich examples, perfect execution of marginal AI tasks, such as face recognition, speech recognition, image recognition, etc



Specification

CPU

Rockchip  RK3568

Quad-core ARM Cortex-A55 64bit CPU,up to 2.0GHz

GPU

ARM G52 2EE GPU

SupportOpenGLES1.1/2.0/3.2,OpenCL2.0,Vulkan1.1, embedded high performance 2D acceleration hardware

NPU

 1.0TOPS@INT8

SupportCaffe/Mxnet/TensorFlow/TFLite/ONNX/Darknet models.

operating system

Linux Ubuntu 20.04

RAM

DDR4 4GB

Memory

eMMC 32GB

network

Dual 10/100 Ethernet ports

2.4GHz Wi-Fi 802. 11b/g/n

4G mobile network

GPS

GPS, GLONASS, BDS, Galileo and QZSS

Protocol: NMEA 0183

Data update rate: 1 Hz by default

Sensitivity:-162dBm

Receive frequency: 1575.42MHz

Acquisition Autonomous -146 dBm Tracking Autonomous -157 dBm

Accuracy: Autonomous @ open sky 10m

SIM

1*SIM slot Nano-SIM(4FF)

Displays

1*HDMI OUT 2.0 ,4K 60fps

Audio

1 * Ear output

RTC

Built-in real-time clock battery, supports scheduled power on/off.

USB

1*USB3.0 HOST

1 * USB 3.0 OTG

LED

1*PowerLED(RED),1*SystemLED(Blue, blinking)

2*DOLED

4*DI LED

Button

1*upgrade for OTA, REC

Serial Ports

2*RS232 ,2*RS485

IO

4*DI： dry/wet contact

--DI voltage range 0-36V (Max. 36V), High 5-36V, Low 0-2V

2*DO：Relay

--DO Max. 10A-277VAC/28VDC for NO,5A-250VAC for NC

4*AI： Analog quantity

--Voltage  range  0-10v;Analog  input  Current  range  4~20mA

Power Input

DC12V/2A (Max. 15V)

Connector: Jack Barrel Type DC5.5*2.1mm Round socket

Working Temperature

-10 - 70°C

Storage Temperature

-20 - 70 °C

Working Humidity

10%-80%

Dimension

160mm*85mm*28mm

Multi-media

Support for 4K 60fps H.265/H.264 Video decoding

Support for 1080P 100fps H.265/H.264 Video decoding

Support for 8 MISP, and support for HDR

Language

Default English, and you can download other languages online



USR-EG828 User Manual

USR-EG828 Datasheet



Read more
