Water Detect click - MikroElektronika Leakage Alarm Sensor

  • $14.00
  • Save $6
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • Water Detect click - MikroElektronika Leakage Alarm Sensor

    Water Detect click is used for detecting water and other electroconductive liquids. If the detection area is wet the output of Microchip's MCP606 CMOS op-amp will go positive, signaling the presence of liquid.

    Water Detect click can be used as a household flood alarm sensor, rain detector for smart buildings or for water tanks that act as a limit switch for a pump.

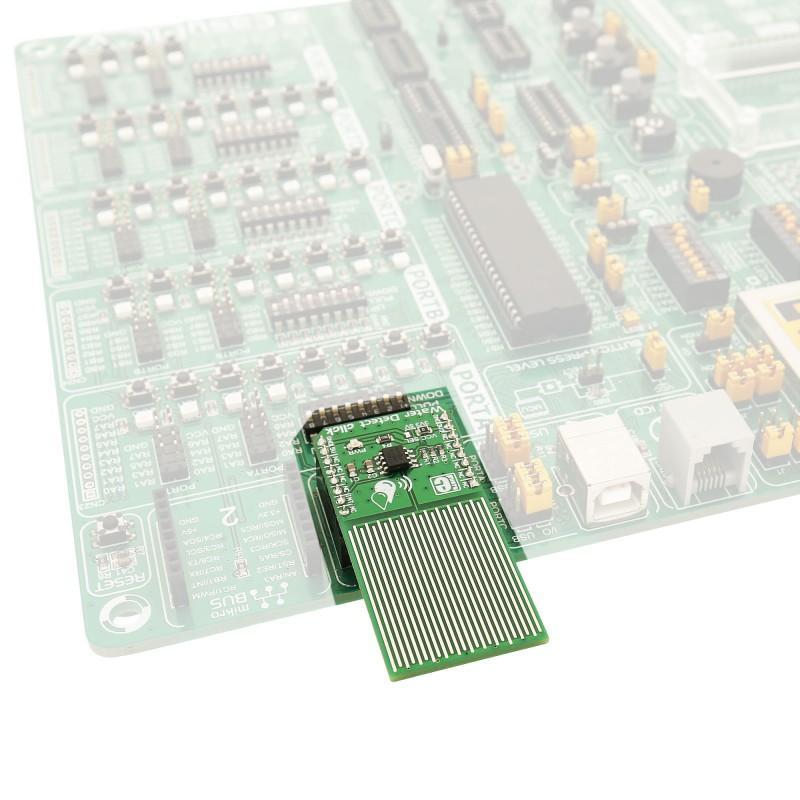

    You could use it on one of our clicker 2 development boards, with GSM 4 click, or any other from the wireless range, and create a home flood alarm. Any time Water Detect click detects water it will send you an SMS.

    How the click works

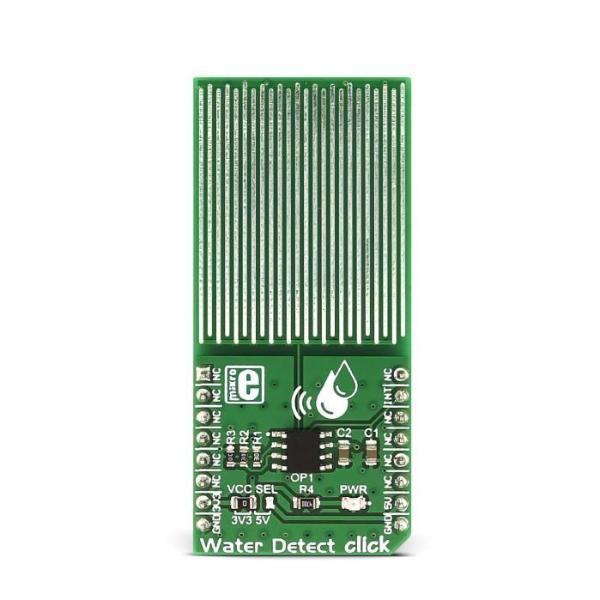

    Water Detect click works by comparing the voltage of two resistor dividers using the MCP606 comparator. The resistor divider (made of R2 and R3) is used as a voltage reference.


    The MCP606 functions as a comparator on this click board™.

    The second divider is made of resistor R1 and the sensory area. When the sensory area is dry, it's resistance is near infinite, and the voltage applied to the inverting terminal of the comparator equals VCC.

    Since the voltage of the reference divider connected to the non-inverting input is VCC/2, the output of the comparator is at zero voltage. Once the liquid is present at the sensory area, it's resistance drops and pulls the voltage on the inverting input of the comparator toward zero volts. Once this voltage falls below VCC/2, the comparator output swings toward VCC signaling the presence of liquid. The comparator output is tied to the INT pin on the mikroBUS™ header.

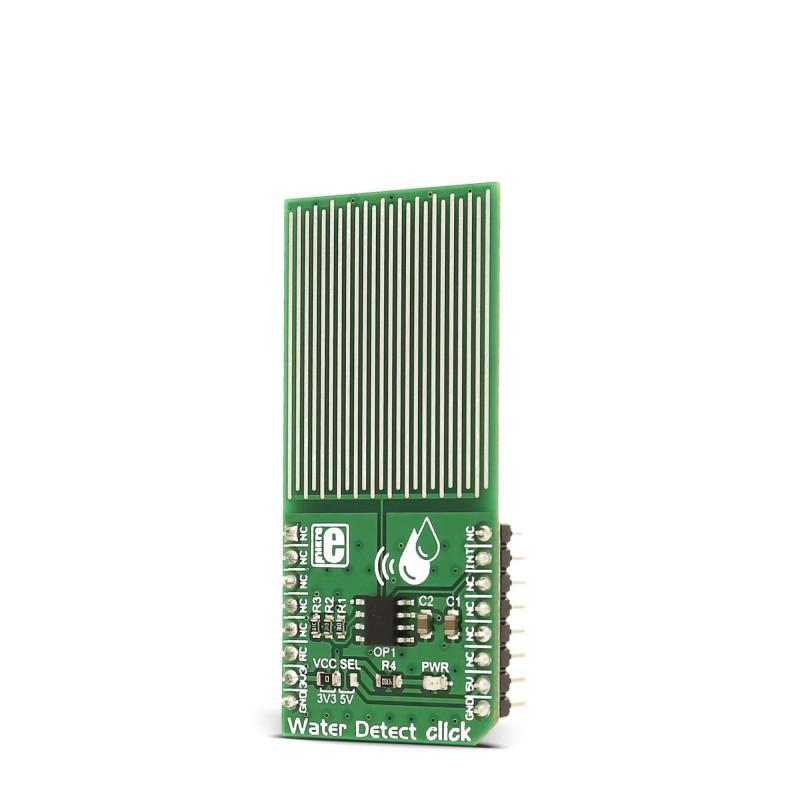

    The water detection area is actually made of exposed conducting wires - simple but effective technology.

    Specifications

    Type Various
    Applications Household flood alarm sensor, rain detector for smart buildings or water tank fill sensor, automated watering systems, etc.
    On-board modules Water detection area, MCP606 comparator

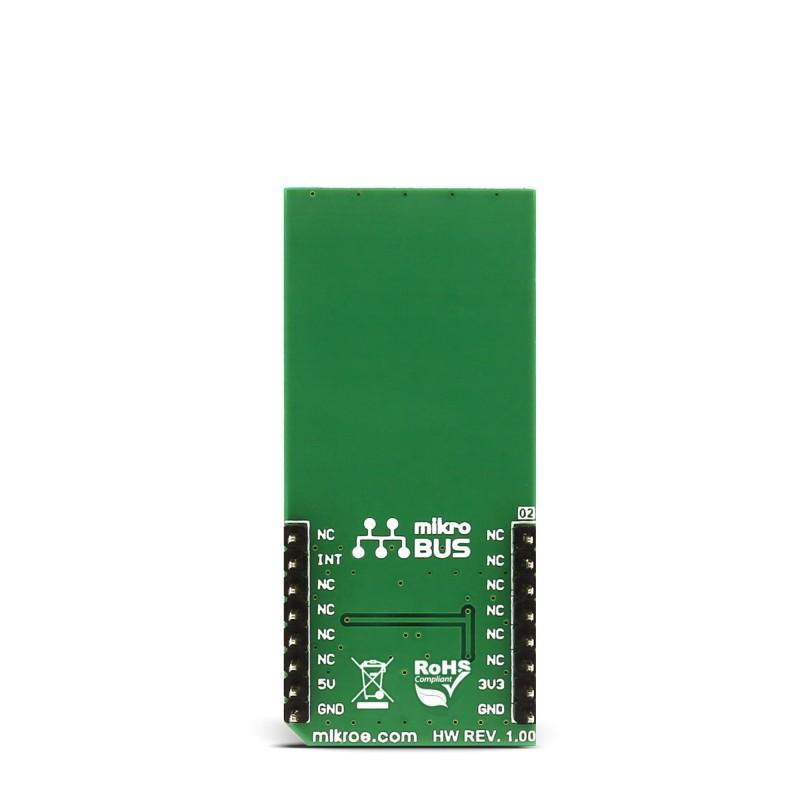

    Interface GPIO
    Input Voltage 3.3V or 5V
    Click board size L (57.15 x 25.4 mm)
