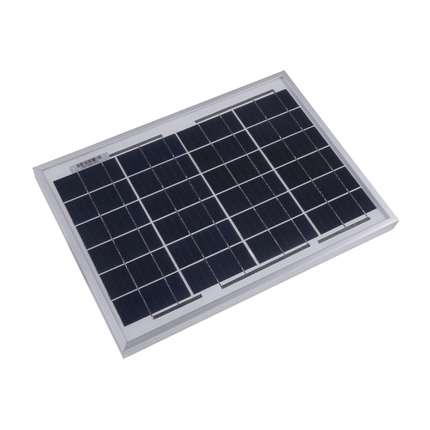

    High-efficiency Waterproof PV-12W Solar Panel, w/ Brackets for Easy Installation

    A high-efficiency robust 12W solar panel to supply power to various application scenarios such as smart agriculture and smart city.

    Features:

    • Mono Cel Solar Cells
    • Working temperate from -20°C to 70°C
    • Peak Power: 12W
    • Durable: suitable for long-term outdoor applications
    • Robustness: the sturdy frame protects the solar panel from deformation
    • Easy installation: comes with a bracket

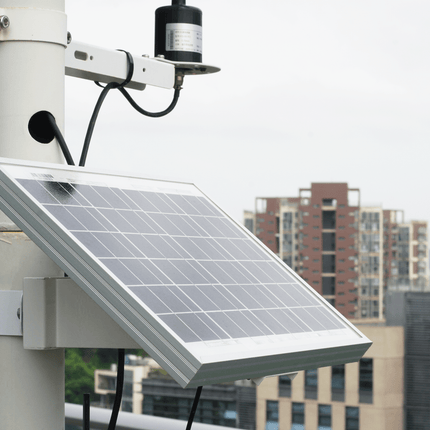

    Measuring weather and other data for outdoor application scenarios often requires sensors and data loggers in places far from any power grid. To supply power to remote sensor infrastructure, a sensor system can generate its own power. In most cases, the cheapest and most convenient method is solar panels combined with a battery. When the sun is bright enough solar panels provide enough electricity to power the sensor system and charge the battery for the night or during times when the sunlight is not sufficient.

    The 12W Solar Panel can be used as a convenient, cheap, and clean solution for supplying power of your applications such as environmental monitoring in agriculture, forestry, garden, or a security camera in your home or garden, etc.

    As most of Seeed IIoT products are aiming for environmental sensing scenarios, this 12 Solar Panel will come in handy for your applications with Seeed IIoT products: SenseCAP Sensor Hub and its Sensors. The Solar panel is robust enough to withstand the harsh conditions required in agriculture and environmental monitoring. The 6-pin waterproof aviation connector can be directly connected to the Sensor Hub. It charges the integrated battery of the Sensor Hub to supply electricity when the solar panels do not supply enough power.

    Applications:

    Solar panels can be used where there is no power grid and enough sunlight to generate the necessary power for the sensor infrastructure.


    Environmental monitoring in remote areas like monitoring weather conditions in national parks or monitoring soil conditions on farmland are just some possible applications.

    • Environmental Monitoring
    • Agriculture
    • Research
    • Meteorological Monitoring
    • Smart Home/ Garden/ Security Camera
    • Other applications that needs 12W power supply











    Solar panel parameters

    Module type

    Monocrystalline silicon

    Peak power

    12Wp

    Open circuit voltage

    14V

    Short circuit current

    1A

    Package size

    350mm*250mm*25mm

    Package weight

    around 1.1kg



    Technical Parameters of Photovoltaic Modules

    Solar cell type

    Monocrystalline silicon

    Index

    Unit

    Data

    Peak power

    Wp

    12

    Open circuit voltage(Voc)

    V

    14

    Short circuit current (Isc)

    A

    1

    Working voltage (Vmppt)

    V

    12

    Working current (Imppt)

    A

    1

    maximum voltage the system

    can withstand

    Vdc

    1000

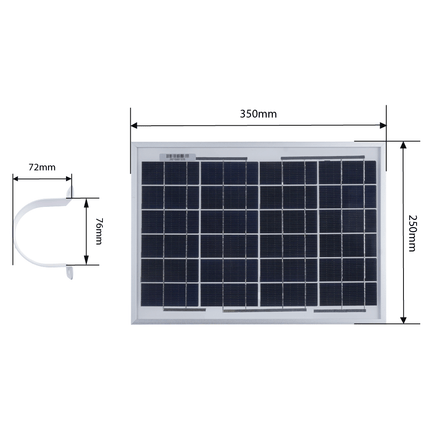

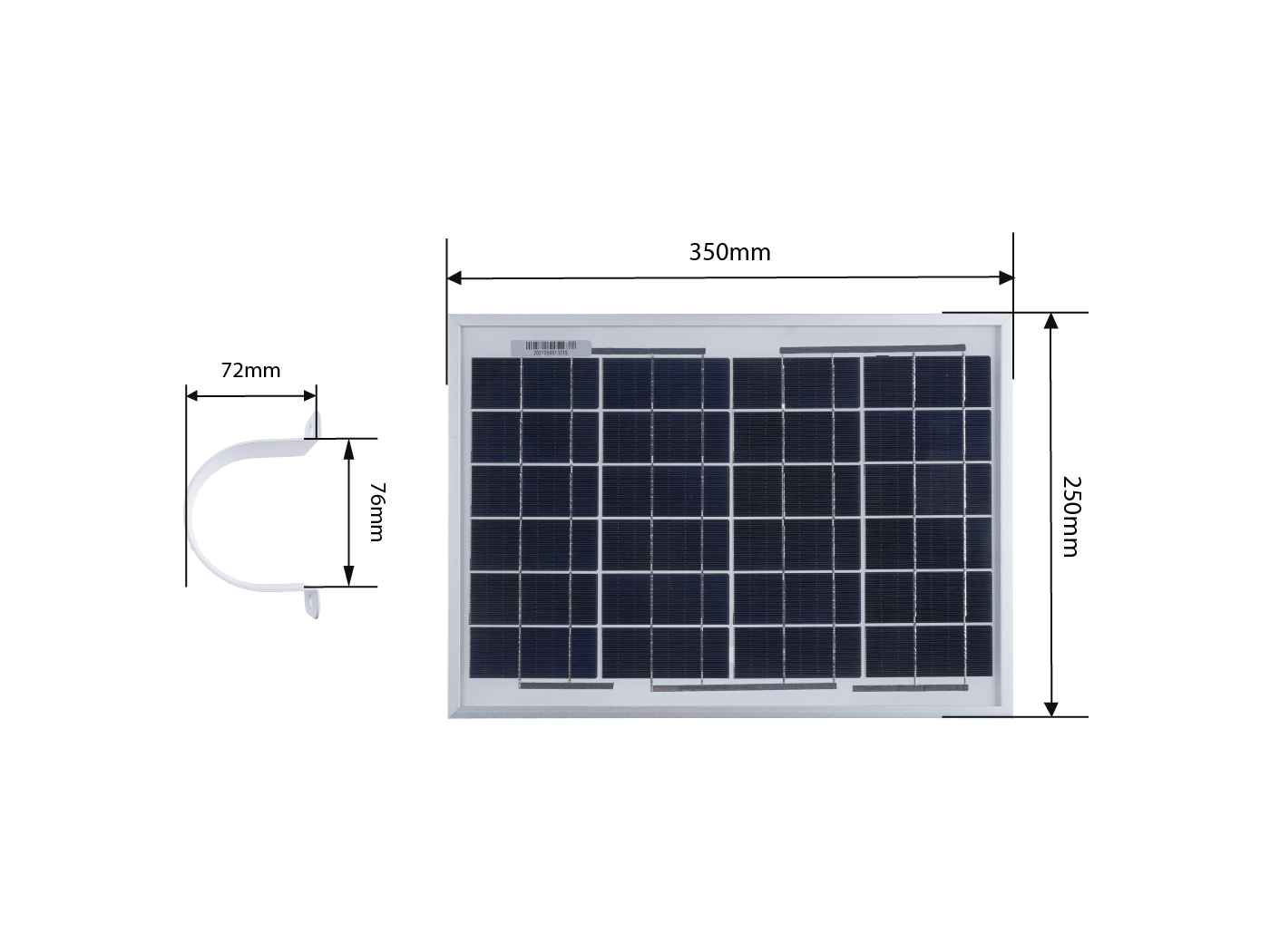

    Module size

    mm

    350*250*25

    Peak power temperature

    coefficient

    %/℃

    -0.45

    Open circuit voltage

    temperature coefficient

    %/℃

    -0.35

    Short-circuit current

    temperature coefficient

    %/℃

    +0.05

    Operating temperature range

    -20~70

    Maximum wind/snow load

    Pa

    2400/5400

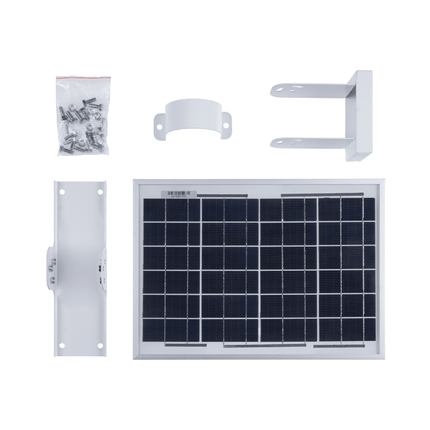

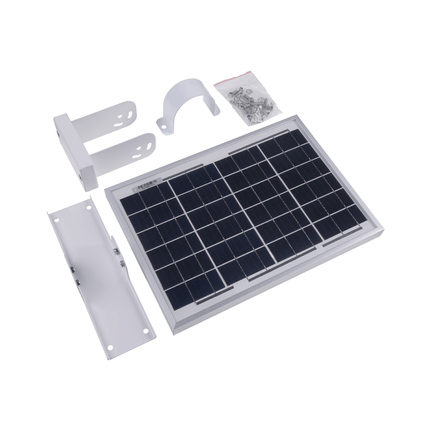

    Equipment
     list

    Item

    Name

    Specification

    Quantity

    Remarks

    1

    Photovoltaic module

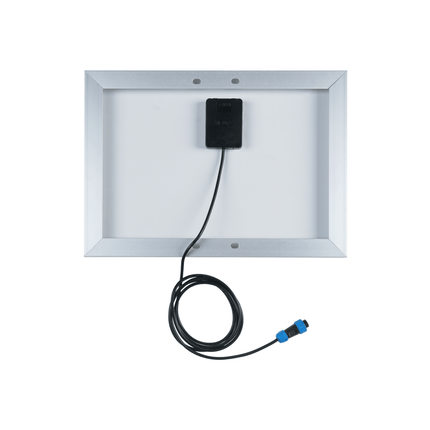

    12W solar panel with 1.5m cable and six core plugs:

    1. Photovoltaic panel orientation: red + black
    2. Six-pin plug: red connects to 2 pins, black connects to 5 pins

    1

    Right-angle single crystal silicon

    Note: the wiring diagram for details

    2

    Stand

    Equipment to install the solar panel

    1



    3

    Packing box

    Customized according to the size

    1
