Phidgets Cable Gland Waterproof 2-Pin Circular Cable Connector (for Enclosures)

Waterproof 2-Pin Circular Cable Connector (for Enclosures)

  • $10.00
  • Save $3
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

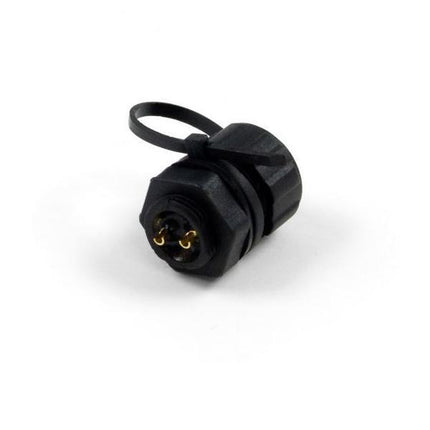

  • Waterproof 2-Pin Circular Cable Connector (for Enclosures)

    These waterproof connectors allow you to attach 2 cables together while protecting the connection from the elements.

    This connector is the female half of a connection that will allow two cables to be securely connected while protecting the connection from the elements. It also allows for quick and easy detaching if you want to switch between external sensors for example. This unit is designed to connect to an enclosure and allow you to plug cables into the enclosure.

    This connector is suitable for cables from 3 - 8mm in diameter.

    Connection

    This connector is designed to fit inside the wall of a waterproof plastic enclosure. For more details on installation and a list of compatible enclosures, see the "Compatible Products" tab.

    You can attach this connector to another by pushing to two together and twisting the ring on (the ring is part of the female connector).

    This cable connector makes it easy to create a connection point on the wall of an enclosure. You need to drill a hole approximately 12mm in diameter into the side of the enclosure, and then you can slide the connector through the hole and fasten it in place with the nut. The cable solders to the inside, and you can connect another cable connector of opposing gender to the outside of the enclosure (the matching connector is sold separately). When not in use, the cap can be screwed onto the enclosure's connector.
