Waterproof DS18B20 Temperature Sensor Kit

  • $19.00
  • Save $10
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • Waterproof DS18B20 Temperature Sensor Kit

    This waterproof temperature sensor kit is using the DS18B20 probe. It contains a probe with a resister module. So it is easy to connect on the Arduino board.

    The DS18B20 temperature sensor provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor. Compatible with 3.0-5.5V systems.

    SPECIFICATION

    • Operating voltage: 3.0~ 5.5V
    • ±0.5°C Accuracy from -10°C to +85°C
    • Usable temperature range: -55 to 125°C (-67°F to +257°F)
    • 9 to 12 bit selectable resolution
    • Uses 1-Wire interface- requires only one digital pin for communication
    • Unique 64 bit ID burned into chip
    • Multiple sensors can share one pin
    • Temperature-limit alarm system
    • Query time is less than 750ms
    • 3 wires interface:
      • Type A
        • Red wire - VCC
        • Black wire - GND
        • Yellow wire - DATA
      • Type B
        • Red wire - VCC
        • Yellow wire - GND
        • Green wire - DATA
    • Stainless steel tube 6mm diameter by 35mm(1.34") long
    • Cable diameter: 4mm(0.16")
    • Length: 90cm(35.43")

    DOCUMENTS

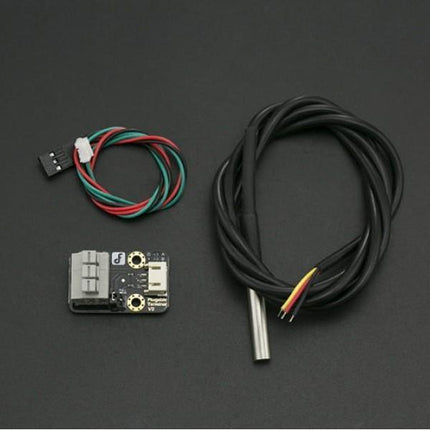

    SHIPPING LIST

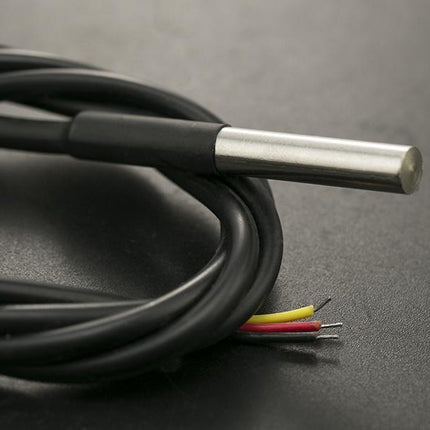

    • Waterproof DS18B20 Digital temperature sensor (DFR0198)  x1

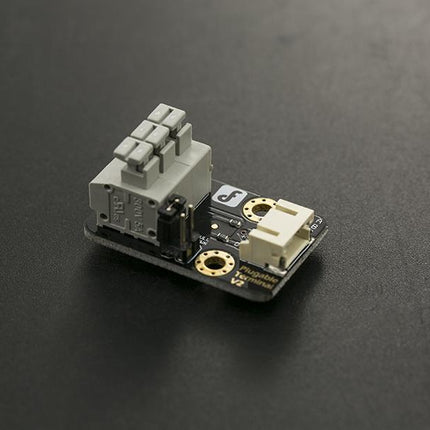

    • Terminal sensor adapter (DFR0055)  x1
    • Digital sensor cable (FIT0011)
