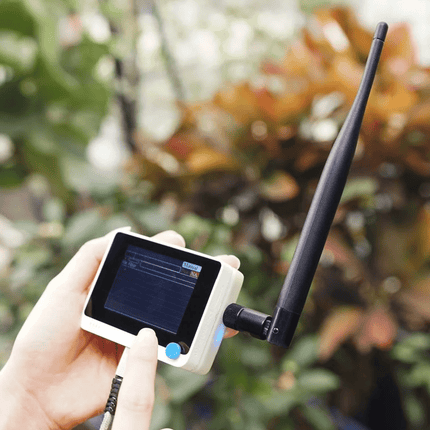

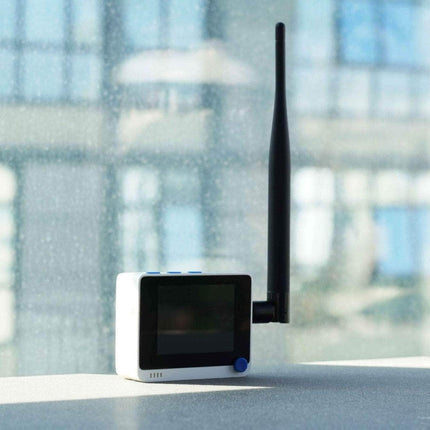

    Wio Terminal LoRaWAN Helium Mapper: Plug&Play LongFi Network Monitor for Helium Network



    With Wio Terminal LoRaWAN Field Tester + Wio Terminal Battery Chassis, you can stack everything in a compact as Paul used in this video!

    Features

    • Ready to go Wio Terminal LoRaWAN Field Tester. No setup, just power it on! The included communication allows a normal use for 3 to 5 years.
    • Compact size, support Type C power bank charge to bring the device everywhere.
    • Monitor the LongFi network performance from the field to verify the coverage and know the different Gateways / Hotspots covering a given place.
    • Find the best places to deploy new Gateways / Hotspots.
    • Directly display network and GPS information on the Wio Terminal screen

    Description

    This Wio LoRaWAN FieldTester is a plug-and-play and all-in-one LongFi network monitor for Helium network. It will help you particularly know how many Hotspots around can be touched for a given position, enrich the network mappers to know each other and share the real network coverage.

    Wio Terminal LoRaWAN Field Tester, disk91

    It helps to build the global coverage map. This map proves that the network can be used for professional / industrial applications by making sure sensors can be deployed in desired areas. This gives long-term value to our assets.

    In a particular zone where no hotspot has been yet deployed, you can make sure it will be witnessed by some other hotspot and that way verify the viability to deploy new hotspot in excentered zones where the scale reward is higher.

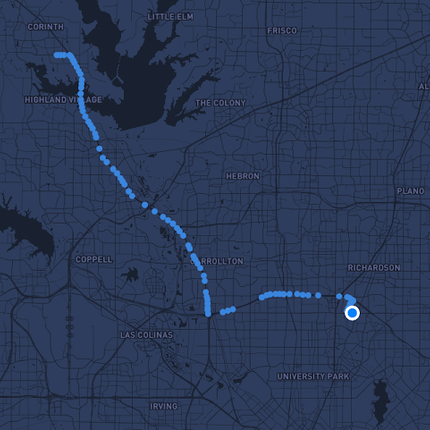

    With the Helium Cargo application, you can real-time track yourself or an asset over a covered zone.

    Applications

    The Wio LoRaWan Field Tester provides different features, all-in-one:

    • Field Tester - it allows to monitor the LoRaWan / LongFi network performance from the field. That way you can verify the coverage and know the different Gateways / Hotspots covering a given place. It helps to find the best places to deploy new Gateways / Hotspots, compare different places to optimize the network deployment. It can show signal strength in real-time and allows the testing of different network parameters.

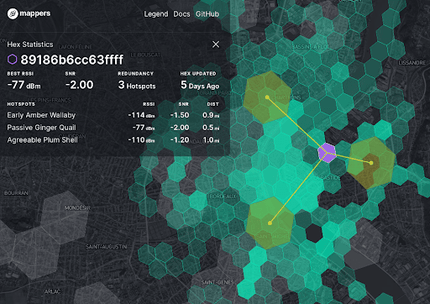

    • Mapper - it automatically transfers the positions to the network mappers - Helium Mappers and Coverage Map - to create a map of coverage. This map is really important to understand where it is possible to use the network. It is a key point for giving trust to the network and motivating the service providers to use it.
    • Tracker - it can be connected to tracking services like cargo to track cars, people, assets in real-time.
    • Multi-zone: supports AU915, AS923, EU868, US915, KR920, IN865
    • Friendly to developers: compatible with over 300 Plug&Play Grove modules to create IoT nodes. The firmware is open-source and can be upgraded like moving a file to a directory.

    Principles

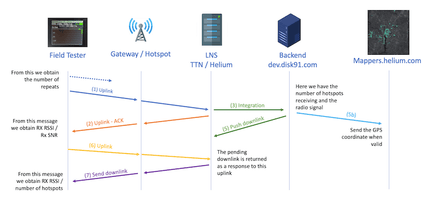

    When Wio Terminal is connecting to the network, it starts sending messages on regular basis, meanwhile, the onboarded GPS is getting the device’s position in real-time. This message is acknowledged by the network to retrieve the information requested for field testing. Each of the messages is processed by a dedicated application computing advanced Field Testing information later transmitted back to the device. When the GPS signal quality is correct, the location is transferred to the mappers and tracking services.

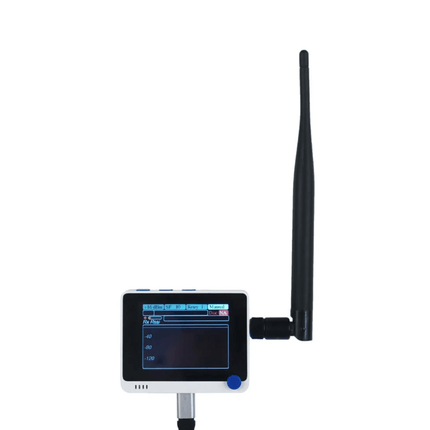

    All the Field Testing information is displayed on the Wio Terminal screen where you can also set up different radio parameters.

    Learn more: How WioLoRaWanFieldTester works.

    Hardware re-use

    Wio LoRaWan Field tester is made of standard pieces that can be used for many different applications and you will be able to reuse the hardware for many different applications. If you flash a different firmware on the device than the official build available on the GitHub project you have a risk of losing the device configuration. We won’t be able to provide you with the corresponding credentials and your subscription will be lost. You can at any time configure the device with your own credentials on the helium console following the configuration process described on the open-source project Github.

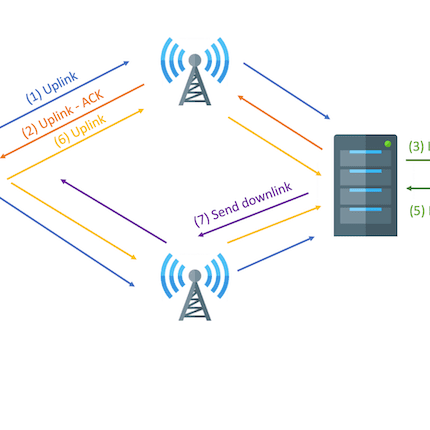

    ... and the way, they are interacting over time:

    About Wio Terminal

    Wio Terminal is compatible with Arduino and Micropython, built with an ATSAMD51 microcontroller with wireless connectivity supported by Realtek RTL8720DN. Its CPU speed runs at 120MHz (Boost up to 200MHz). Realtek RTL8720DN chip supports both Bluetooth and Wi-Fi providing the backbone for IoT projects. The Wio Terminal is Highly Integrated with a 2.4” LCD Screen, there is an onboard IMU(LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, and infrared emitter(IR 940nm)

    With Wio Terminal, sense and tag the Real-World data with over 300 Groves created by Seeed and visualize through Azure IoT Central Platform to create an end-to-end IoT project

    Documentation

    Specifications

    Main Chip

    Manufacturer Part Number

    ATSAMD51P19

    Core Processor

    ARM® Cortex®-M4F running at 120MHz

    Memory

    4 MB External Flash, 192 KB RAM

    Maximum Speed

    200MHz

    External Flash

    4MBytes

    Operating Temperature

    -40°C ~ 85°C (TA)

    LCD Screen

    Resolution

    320x240

    Display Size

    2.4inch

    Drive IC

    ILI9341

    Wireless Connectivity

    Manufacturer Part Number

    RTL8720DN

    KM4 CPU

    ARM® Cortex®-M4F @ 200MHz

    KM0 CPU

    ARM® Cortex®-M0

    Wi-Fi

    802.11 a/b/g/n 1x1, Dual Band 2.4GHz & 5GHz

    Bluetooth

    Support BLE5.0

    Built-in Modules

    Accelerometer

    LIS3DHTR

    Microphone

    1.0V-10V -42dB

    Speaker

    ≥78dB @10cm 4000Hz

    Light Sensor

    400-1050nm

    Infrared Emitter

    940nm

    Interface

    MicroSD Card Slot

    Maximum 16GB

    GPIO

    40-PIN (Raspberry Pi Compatible)

    Supported Protocol

    SPI, I2C, I2S, ADC, DAC, PWM, UART(Serial)

    Grove

    2 (Multifunction), for Digital, Analog, I2C, and PWM

    FPC

    20-Pins

    USB Type-C

    Power & USB-OTG

    Operation Interface

    5-Way Switch

    Power/Reset Switch

    User-defined button *3

    Enclosure

    Mounting

    Built-in magnets and two mounting holes

    Dimension

    72mm*57mm*12mm

    Materials

    ABS+PC

    Software Support

    Arduino

    MicroPython

    ArduPy

    AT Firmware

    Visual Studio Code

    CircuitPython ( How to run CircuitPython on Wio Terminal?)

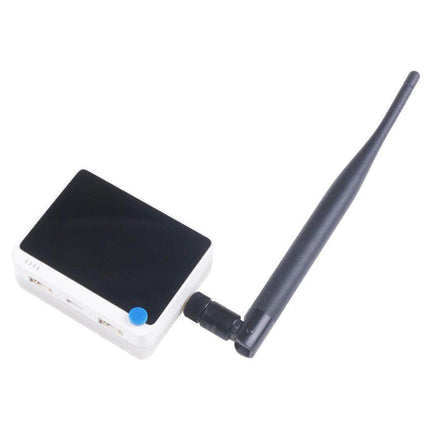

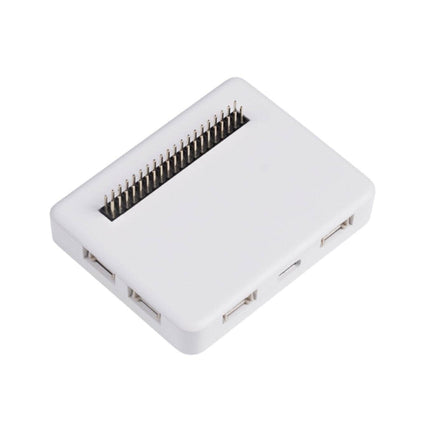

    Wio Terminal LoRaWan Chassis with Antenna

    Parameters

    Specifications

    Voltage - supply

    3V3

    LoRa-E5

    Frequency

    AU915 / AS923 / EU868 / US915 / KR920 / IN865

    Protocol

    LoRaWAN

    Sensitivity

    -116.5dBm ~ -136dBm

    modulation

    LoRa, (G)FSK, (G)MSK, BPSK

    Quectel L76-LB

    Receiving Bands

    GPS L1/Galileo E1 C/A: 1575.42MHz

    GLONASS L1 C/A: 1602.5625MHz

    BeiDou B1 C/A: 1561.098MHz

    Channel

    33 Tracking Channels

    99 Acquisition Channels

    210 PRN Channels

    Sensitivity

    Acquisition: -148dBm

    Tracking: -165dBm

    Reacquisition: -160dBm

    Interfaces

    Wio Terminal 40-PIN(2x20 Male Headers)

    Enclosure

    Dimension

    72mm*57mm*12mm

    Materials

    3D Printing with ABS
