Wireless Charging Module Couple 9V PW-WCG-9V

  • $10.00
  • Save $5
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • Wireless Charging Module Couple 9V PW-WCG-9V

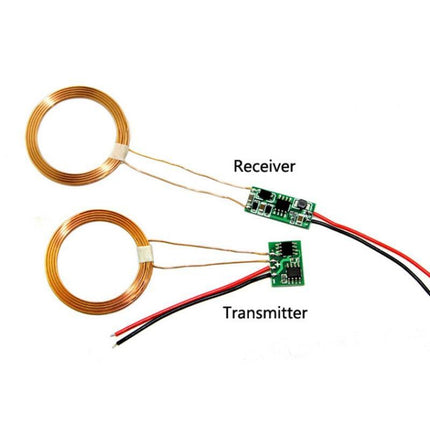

    The Wireless Charging Module can be applied in electronic equipment in common use for close wireless charging or power supply. Consisted of a transmitter and insulation coil, it could serve as a replacement for the Wireless Power Supply with the stable 9V output voltage and maximum 600mA output current. Its small size and insulation coil are more suitable for using in a wireless project.

    Features

    • Stable power supply
    • Insulation Coil
    • Space-saving design

    Specifications

    • Input Voltage: 12Vdc
    • Input Voltage(limits): 13.5Vdc
    • Output Voltage: 9Vdc
    • Output Current(maximum): 600mA
    • Transmitter Coil Inductance: 30uH
    • Transmit-receive distance: 1-20mm

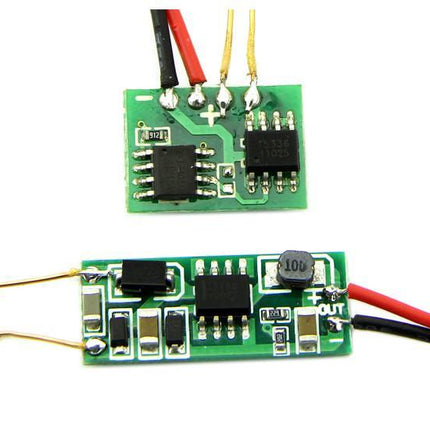

    • Transmitter : 12x7x1mm
    • Receiver: 15x10x1mm
    • Coil Diameter: 38mm
    • Coil Height: 2mm

    • XKT-510 Datasheet
