WisLink Cellular BG96 Arduino Shield LTE Cat-M1, NB-IoT

  • $159.00
  • Save $40
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • WisLink Cellular BG96 Arduino Shield LTE Cat-M1, NB-IoT


    RAK2011 WisLink Cellular BG96 َArduino Shield simultaneously supporting 3 cellular standards: 2G/EGPRS, 4G/LTE Cat-M1(eMTC), Cat-NB1(NB-IoT)

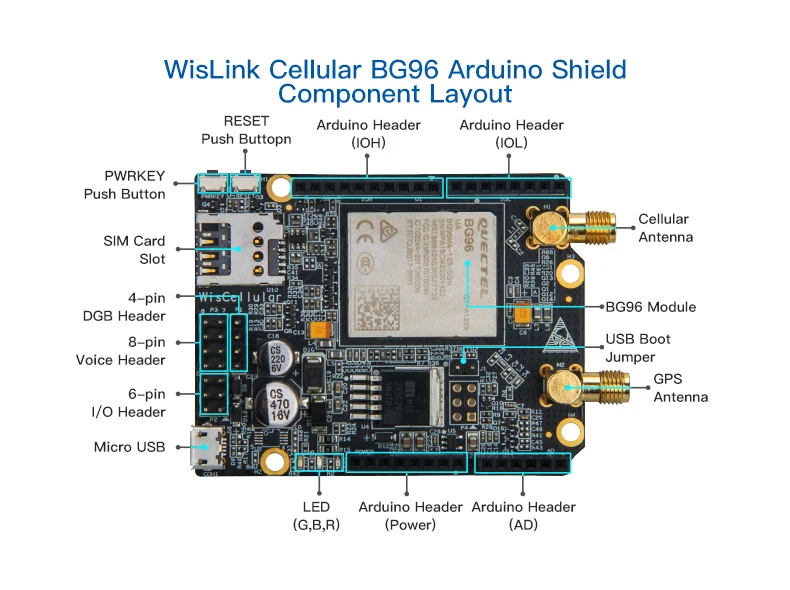

    RAK2011 WisLink Cellular BG96 Arduino Shield RAK2011 is a compact cellular communications module that supports Low-Power Wide-Area (LPWA) technology for networking Internet-of-Things (IoT) devices. It can simultaneously support 2G, 4G/LTE, NB-IoT and GPS, with an additional feature of Voice-over-LTE (VoLTE) for high definition (HD) and uninterrupted voice calls.

    This multitude of features allow users the flexibility of migrating from 2G to 4G/LTE without requiring any hardware change, improve power consumption, system capacity and spectrum efficiency by utilizing the Narrow Band Internet-of-Things, tracking units through GPS and location base services (LBS), stay on the 4G/LTE network even when making or receiving calls and other networking features. The RAK2011 is based on the Quectel BG96 module and comes with drivers for Windows, Linux and Android support via AT commands. It supports networking protocols such as PPP, TCP, UDP, SSL, TLS, FTP(S), HTTP(S), NITZ, PING and MQTT. This is useful for facilitating software development and system integration into any IoT applications.

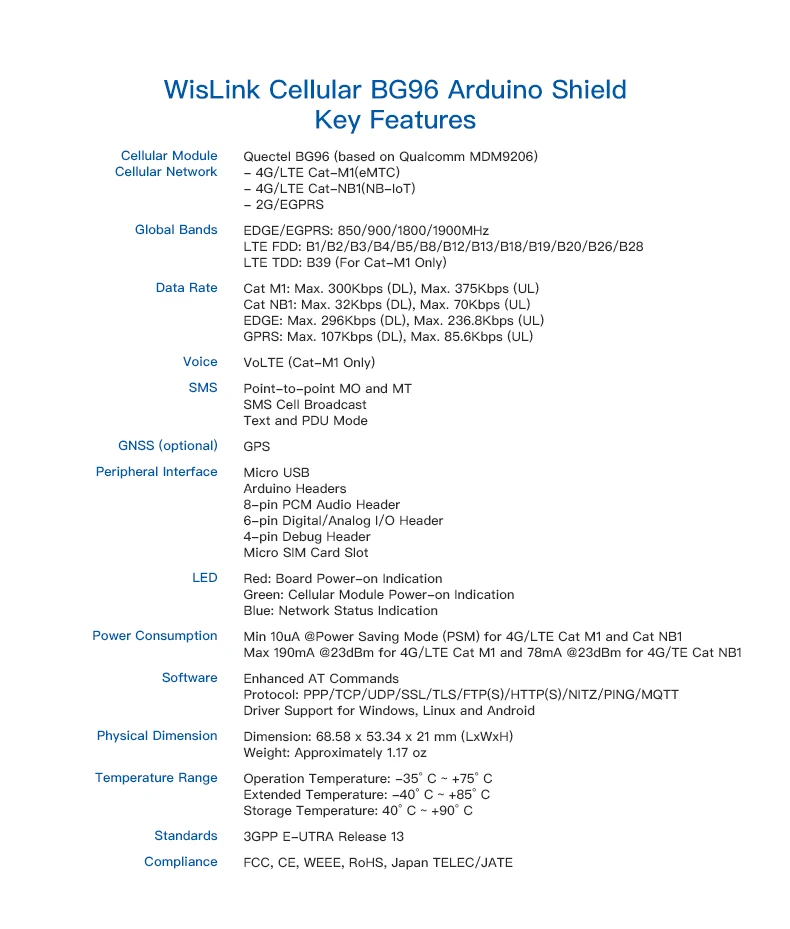

    Key Features

    • Cellular Module: Quectel BG96 (based on Qualcomm MDM9206)
    • Cellular Networks:
      • 4G/LTE Cat-M1 (eMTC)
      • 4G/LTE Cat-NB1(NB-IoT)
      • 2G/EGPRS
    • Voice: VoLTE (Cat-M1 Only)


    Quectel BG96 Hardware Design

     RAK Wireless Resources


    0102WisLink-Cellualr-1030_03WisLink-Cellualr-1030_040506 0709  -  WisLink-Cellualr-1030_1012WisLink-Cellualr-1030_12
