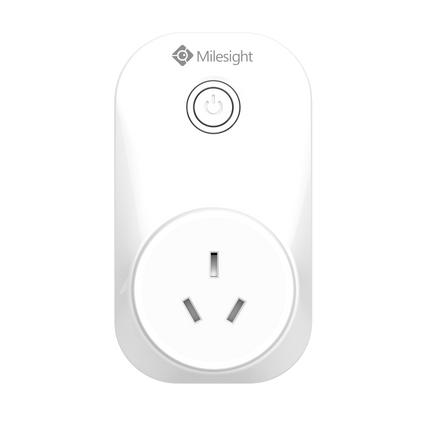

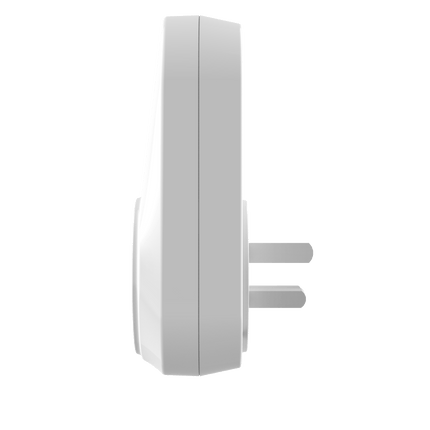

WS523-10A-AU LoRaWAN Smart Portable Socket

  • $99.00
  • Save $20
  • (Exc. GST)


  • In stock with a short lead time. Ship in 10-15 days.

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

    WS523-10A-AU LoRaWAN Smart Portable Socket

    • Remote ON/OFF
    • Electricity Statistics
    • Time-Based ON/OFF
    • Overload Protection

    Automate Traditional Electrical Appliances with Ease



    Time-Based ON/OFF

    Create schedules to turn the remote appliances on/off automatically



    Electricity Statistics

    The Electricity Statistics feature and flexible schedule settings would help to save power and lower electric bills

    milesight lorawan socket electricity statistics interface

    Overload Protection

    The overload protection prevents connected appliances, safety fuse and the smart socket itself from damage of overcurrent

    Easy to Use

    Switching on/off and configuring the device via NFC technology from mobile phone or PC

    Specifications

    Wireless Transmission Technology LoRaWAN®
    Frequency AU915
    Tx Power 22 dBm (915 MHz)
    Sensitivity -137 dBm
    Mode OTAA/ABP Class C
    Electrical Socket Type AU
    Operating Voltage 100~250 VAC, 50~60 Hz
    Max Load Capacity 10 A/16 A (Optional), 250 VAC
    Measurement Voltage (VAC), Current (A), Power Factor (%), Power Meter (kWh)
    Software Configuration NFC
    Power Control Button or Remote Control
    Advanced Features Schedule Switch, Button Lock, Overcurrent Protection/Alarm
    Others LED Indicator 1
    Button ON/OFF, Reset
    Physical Characteristics Material Polycarbonate
    Color White
    Operating Temperature -10°C to +60°C (14℉ to +140℉)
    Relative Humidity 10% to 90% (non-condensing)
    Dimensions 110 × 62 × 35 mm (4.33 × 2.44 × 1.38 in)



    Documents:

    Datasheet
