TG453 Industrial 5G/4G Gigabit IoT Router WiFi Edge Gateway DIN-Rail

  • $499.00
  • Save $100
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

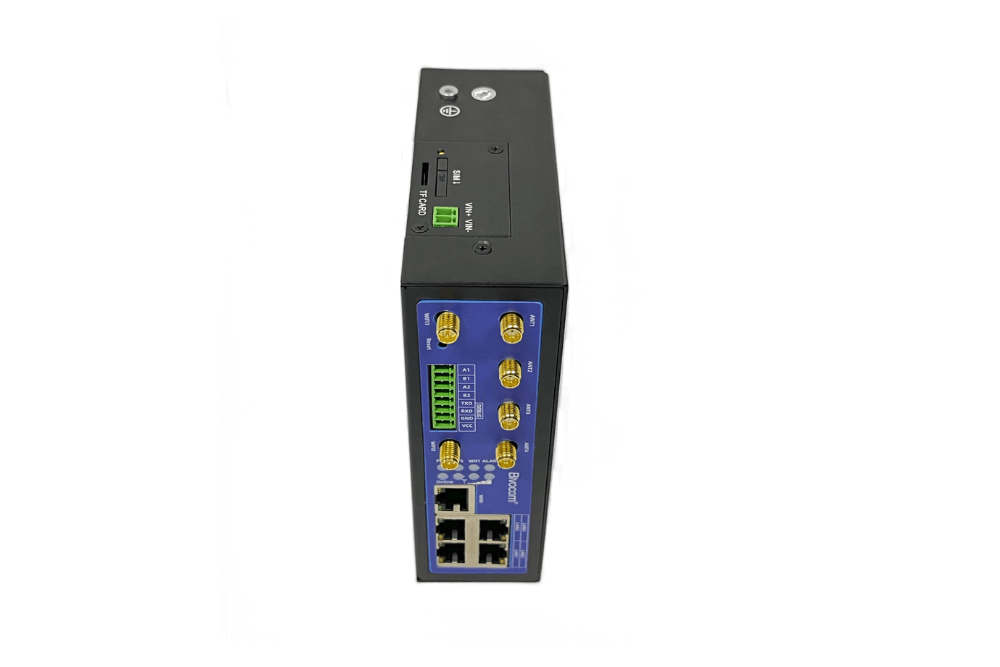

    TG453 Industrial 5G/4G Gigabit IoT Router WiFi Edge Gateway DIN-Rail

    The TG453 is a compact 5G NR (or 4G) IoT gateway designed for IoT, M2M, and eMBB applications requiring higher speed, lower latency data transmission, and capacity of basic edge computing. It provides OpenWRT based Linux OS embedded environment that allows developers and engineers to program and install their own applications based on Python, C/C++ to the hardware themselves.

    The TG453 gateway has 5-Gigabit ethernet ports, 1x RS232, 2x RS485 to connect to diverse field equipment and sensors, transferring the data to the cloud server via 5G/4G LTE cellular network. It comes with industrial protocols, such as MQTT, Modbus RTU/TCP, JSON, TCP/UDP and VPN to provide you an efficient and secure IoT data connectivity between field devices and cloud servers.

    The TG453 gateway has the option of dual sim/dual module for failover/load balance, providing robust and reliable wireless and wired connectivity for your mission-critical industrial applications, such as EV charging stationsolar power, smart pole, smart cities, smart office, smart buildings, smart traffic light, digital signage advertising, vending machines, ATM, etc.

    Key Features

    1. Global 5G NR Sub-6 bands or mmWave(Option), SA and NSA dual modes, or 4G LTE
    2. 5-RJ45(GbE),1-RS232(Debug), 2-RS485, 1-Power Output, 1-TF, 2.4G WIFI, GNSS(Option)
    3. Dual SIM/Dual Module(Option) for failover/load balance
    4. Up to 32GB local data storage and backup via Micro SD
    5. OpenWRT based Linux OS, Python, C/C++ programmable
    6. Wide operating temperature: -35~+75 °C
    7. Modbus RTU/TCP, MQTT, JSON, TCP/UDP and customized industrial protocols VPN, SNMP, BGP, HTTP, Telnet, SSH, CLI, SPI firewall

    Specification

    System
      ● CPU: 32-bit, dual-core
      ● Flash: 32MB
      ● RAM: 256MB DDR3

    Cellular Interfaces
      ● Antenna Connector: 4 × 50 Ω SMA Female(5G Version TG453-NR)
                                          2 × 50 Ω SMA Female(4G Version TG453-LF)
      ● SIM Slot: 1, or 2(DSSM, or DSDM, Option)
      ● ESD Protection: 15KV

    Ethernet Interface
      ● Ports: 5-RJ45 (1-WAN, 4-LAN or 5-LAN configurable)
      ● Data Rates: 10/100/1000 Mbps (Auto-Sensing), Auto MDI/MDIX
      ● ESD Protection: 1.5KV

    Serial Interfaces
      ● Connector Ports: Terminal block, 3.5 mm female socket,    1-RS232(Debug), 2-RS485
      ● Baud Rate: 300bps to 230400bps
      ● ESD protection: 8KV for RS232, 15KV for RS485

    Wi-Fi
      ● Antenna Connector: 2 × 50 Ω RP-SMA Female
      ● Standard: IEEE 802.11b/g/n, AP and Client modes
      ● Transmission Rate: IEEE802.11b/g: Up to 54Mbps IEEE802.11n: Up to 300Mbps
      ● Securit: Open, WPA, WPA2, WPA/WPA2 Enterprise, Radius

    GNSS/GPS (Pre-order Option)
      ● Module: Built-in independent GPS Module, or GNSS from cellular module
      ● Antenna Connector: 1 × 50 Ω SMA Female

    External Storage(Option)
      ● SD Card Slot: 1x Micro SD interface, Up to 32G
      ● Usag: User Program, Data Storage and Firmware Upgrade

    Power Supply and Consumption
      ● Connector: Terminal block, 3.5 mm female socket
      ● Standard Power: DC 12V/1.5A
      ● Input Voltage: 5-35 VDC
      ● Idle Mode: 451~509mA@12VDC
      ● Working Mode: 483~625mA@12VDC
      ● Power Output: 1 channel DC 12V/1A, for field sensors, devices

    Software
      ● Network Protocols: PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH
      ● Serial Port: MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP)
      ● VPN Tunnel: IPsec/PPTP/L2TP/GRE/OpenVPN
      ● Firewall: ACL/DMZ/Port Mapping/MAC Binding
      ● Management: Web, CLI, SMS, Cloud DMP (Device Management Platform, license fee required)
      ● Reliability: WWAN and WAN Failover, Hardware & Software Watchdog
      ● Secondary Development: OpenWrt based Linux OS, C/C++, Python, LUA and SDK
    Note: Only available on customized firmware, and Bivocom only provides an environment for developers

    Physical Characteristics
      ● Ingress Protection: IP30
      ● Housing & Weight: Metal, 630g(1.39lbs), without accessories
      ● Dimensions: 145 x 114 x 45mm (5.71 x 4.49 x 1.77in)
      ● Mounting: Desktop, DIN-Rail

    Environmental
      ● Operating Temperature: -35°C to +75°C (-31℉ to +167℉)
      ● Storage Temperature: -40°C to +80°C (-40℉ to +176℉)
      ● Relative Humidity: 5% to 95% (non-condensing)
      ● Ethernet Isolatio: 1.5 kV RMS

    Others
      ● Reset Button: 1
      ● LED Indicators: Signal strength, WIFI, System, Online, Power, Alarm
      ● Built-in: Watchdog, RTC, Timer
      ● Approvals: CE*, RCM*, FCC*
      ● Warranty Period: Standard: 12 Months
                                     Extended: 2-5 Years

    Standard Package Content
      ● TG453 Gateway: 1PCS
      ● Power Adapter(DC 12V/1.5A, EU/US/UK/AU plug optional) : 1PCS
      ● Mag-mount Cellular Antenna (SMA Male, 1 meter, 5dBi) :
           5G Version: 4 PCS
           4G Version: 2 PCS
      ● WIFI Antenna: 1PCS
      ● RS232 Cable (DB9 Female, 1 meter): 1PCS
      ● Ethernet Cable(1 meter) : 1PCS
      ● 8-Pin Terminal Block: 1PCS
      ● 2-Pin Terminal Block: 1PCS
      ● DIN-Rail Mount Kits: 1PCS

    Dimensions(mm)


    Dimension TG453
    Side Views
    Note:
    TG453 Diagram
