GroPoint Air - LoRaWAN Multi Segment Soil Sensor Converter

  • $109.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

    GroPoint Air - LoRaWAN Multi Segment Soil Sensor Converter

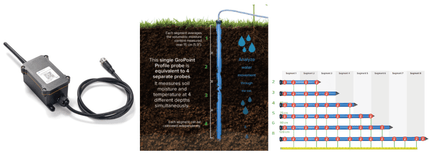

    The Dragino GroPoint is a LoRaWAN Multi Soil Segment Converter for IoT of Agriculture. It is designed to connect to GroPoint Profile Multi-depth Soil moisture and temperature profile Sensor and get GroPoint Profile’s reading and send it to IoT server via LoRaWAN wireless network.

    GroPoint Profile is plug-and-play with GroPoint Air to get soil moisture and send via wireless. GroPoint Profile is powered by GroPoint Air, no need external power source.

    The LoRa wireless technology used in GroPoint Air allows devices to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

    GroPoint Air is powered by an 8500mAh Li-SOCI2 battery, it is designed for long-term use for up to 5 years.

    Each GroPoint Air is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to the local LoRaWAN server and it will auto-connect after power on.

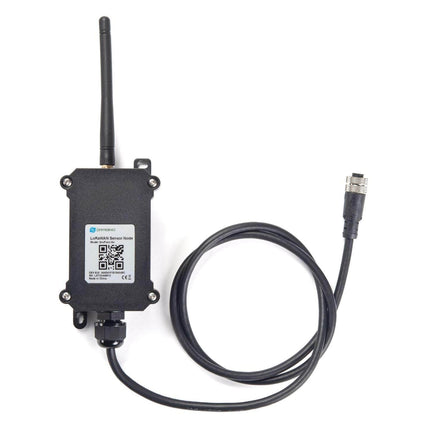

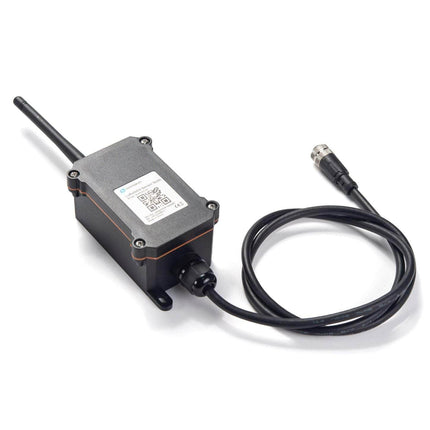

    GroPoint Air includes an M12 5-pin connector, the pins definition matches GroPoint Profile M12 version probes. Users can connect this connector to GroPoint Profile directly.

    GroPoint Profile includes a series of multi-depth soil moisture and temperature sensors. The specification for GroPoint Profile can be found here:  https://www.gropoint.com/products/soil-sensors/gropoint-profile

    Features:

    • LoRaWAN 1.0.3 Class A
    • Ultra-low power consumption
    • Supports GroPoint Profile
    • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
    • AT Commands to change parameters
    • Uplink on periodically
    • Downlink to change configure
    • IP66 Waterproof Enclosure
    • 8500mAh Battery for long term use

    Documents:
