LSN50v2-D20 LoRaWAN Waterproof Outdoor Temperature Sensor
LSN50v2-D20 LoRaWAN Waterproof Outdoor Temperature Sensor

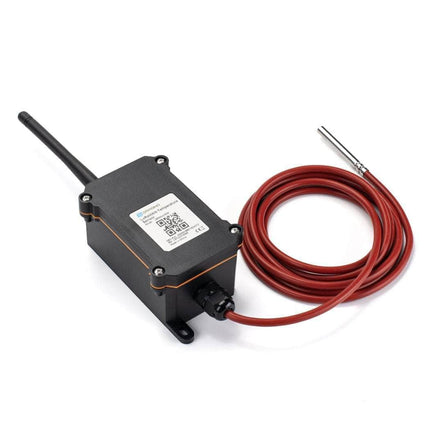

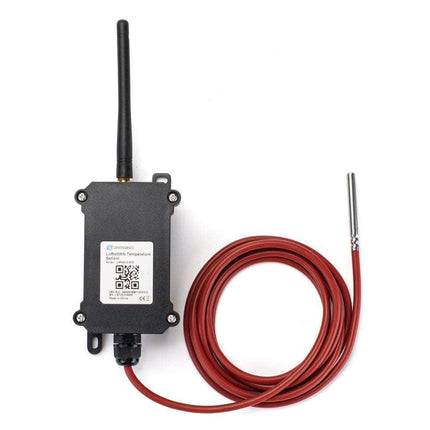

The Dragino LSN50v2-D20 is a LoRaWAN Temperature Sensor for the Internet of Things solution. It can be used to measure the temperature of air, liquid or object, and then upload to IoT server via LoRaWAN wireless protocol.

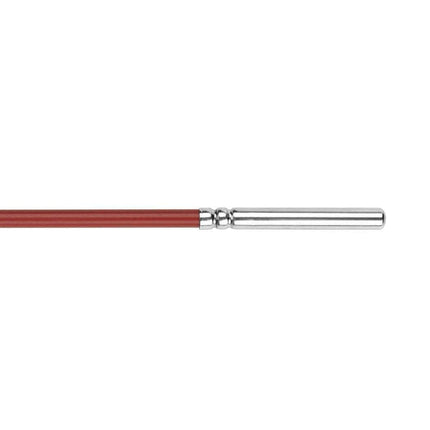

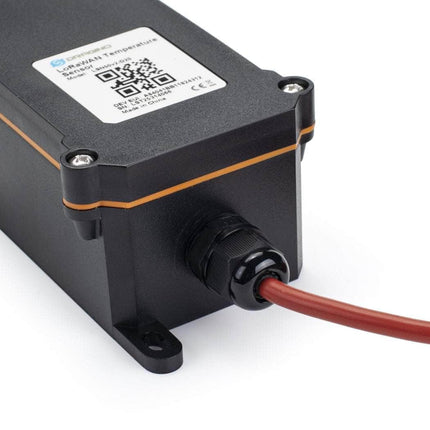

The temperature sensor used in LSN50v2-D20 is DS18B20, which can measure -55°C ~ 125°C with accuracy ±0.5°C (max ±2.0 °C). The sensor cable is made by Silica Gel, and the connection between metal probe and cable is double compress for waterproof, moisture-proof and anti-rust for long term usage.
LSN50v2-D20 supports temperature alarm feature, user can set temperature alarm for instant notice.
LSN50v2-D20 is powered by 8500mAh Li-SOCI2 battery, It is designed for long term use up to 10 years. (Actually Battery life depends on the use environment, update period. Please check related Power Analyze report).
Each LSN50v2-D20 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to local LoRaWAN server and it will auto-connect after power on.
Features:
- LoRaWAN v1.0.3 Class A
- Ultra-low power consumption
- External DS18B20 Probe (default 2meters)
- Measure range -55°C ~ 125°C
- Temperature alarm
- Bands: CN470/EU433/KR920/US915
EU868/AS923/AU915/IN865 - AT Commands to change parameters
- Uplink on periodically or Interrupt
- Downlink to change configure
Applications:
- Wireless Alarm and Security Systems
- Home and Building Automation
- Automated Meter Reading
- Industrial Monitoring and Control
- Long-range Irrigation Systems, etc.
