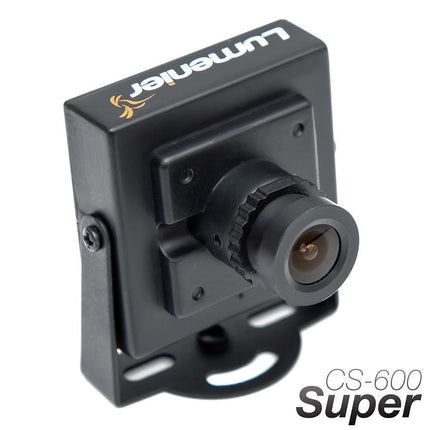

  • Lumenier CS-600 Sony Super - 600TVL D-WDR FPV Camera

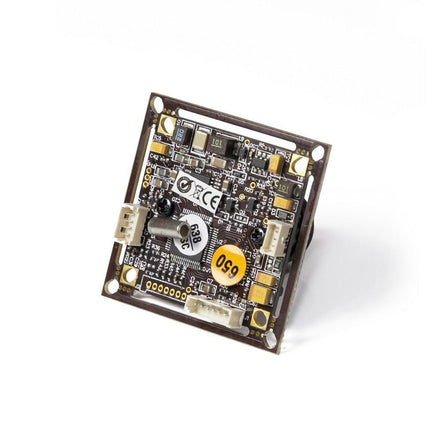

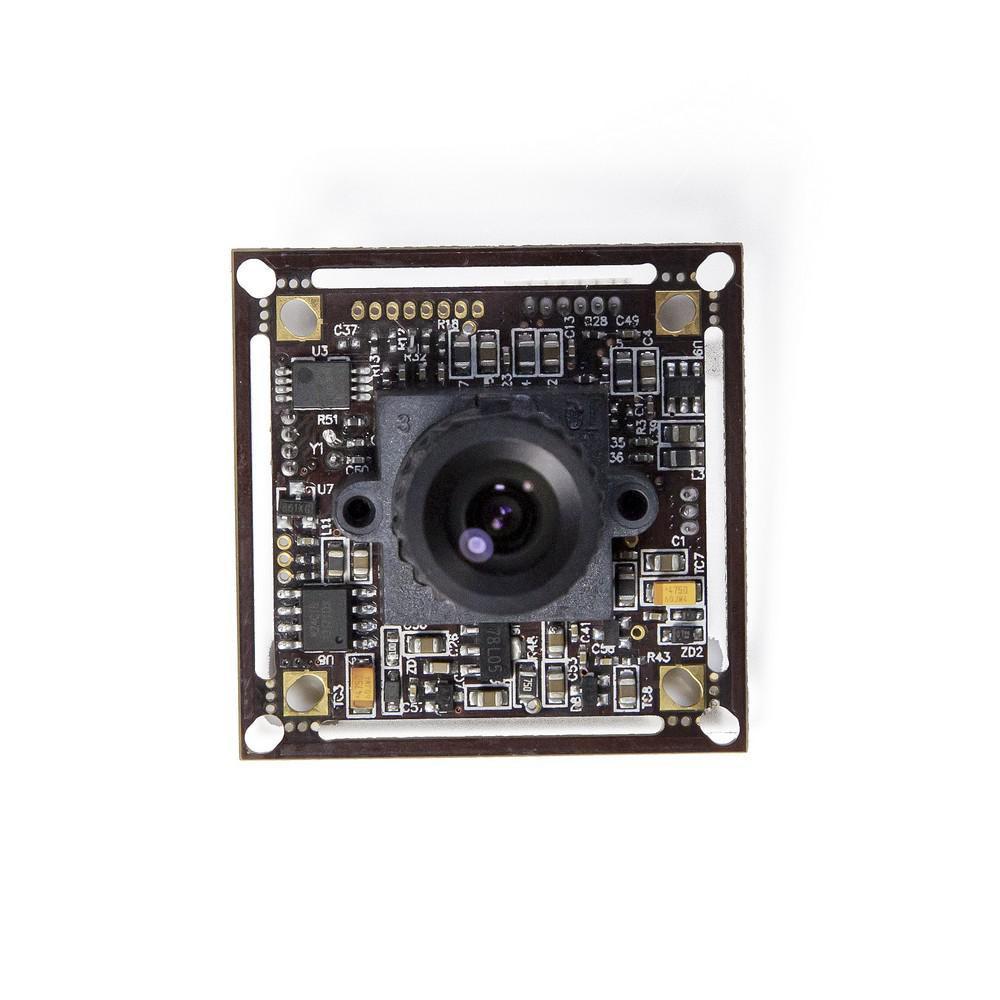

    The Sony Super HAD II CCD 600TVL FPV board camera with Nextchip 2040 DSP, Samsung and Panasonic resistance components and Tantalum capacitor by Lumenier. It comes with a dual 850nm IR filter which blocks the IR light making image colors true to life.

    This camera has become very popular with the FPV community for its affordable price and awesome performance. The CS-600 Super will outperform many more expensive models. GetFPV brings you the full package deal with the new Lumenier brand, and ships from the US. Not only do you get a superb camera, but also a Lumenier branded metal case with mounting bracket and a custom made camera cable for easy hookup to your FPV gear.

    Features

    • Blocks IR light for better color
    • Color 600TVL Black & white 650TVL High Picture Quality
    • 1/3'' SONY SUPER HAD II CCD
    • Default 2.8mm lens, optional 3.6mm and 2.1mm
    • Removable OSD menu
    • D-WDR
    • DNR (Digital Noise Reduction)
    • Low Power Consumption
    • Back light compensation (BLC)
    • Image mirroring functionality
    • Anti-exposure function
    • Low illumination: 0.01Lux
    • White dot repair
    • Weight: Board camera alone 15g, or with case 44g.
    • DC 9V-12V Power input (3s Lipo battery)

    Specifications

    Image Sensor1/3'' SONY SUPER HAD II CCD

    Horizontal Resolution 600TVL
    Signal System NTSC
    Auto White Balance Manual/Auto/Auto tracking
    Electronic Shutter Speed 1/60-1/100,000
    Back light compensation (BLC) off /BLC/ anti-exposure
    >Min. Illumination 0.01Lux/1.2F
    Video Output 1.0Vp-p 75 ohm BNC output
    Negative/ positive Negative/ positive optional
    Display Mode LED monitor/CRT monitor
    IR image optimize Anti exposure of the object in the middle
    Day/ Night Switch Auto/Color/B&W/Outside control (position start and end controllable)
    OSD Chinese/ English Menu
    Image adjust Yes 10%-90%
    Effective Pixel 768(H) X 494(V)
    Synchronization Internal
    S/N Ratio >60dB(AGC OFF)
    Auto Gain Control off/low/mid/high optional
    Motion Detection (MD) On/Off (multi-level sensitivity)
    Shading Area 8
    Power 9-12V DC (3s Lipo battery)
    Edge light compensation Yes
    Synchronize IR turn on and color turn to B&W Yes optional
    DNR 2DNR
    Day/ Night time switch 2-63 Switchable time
    White dot repair Yes
    Function Control OSD

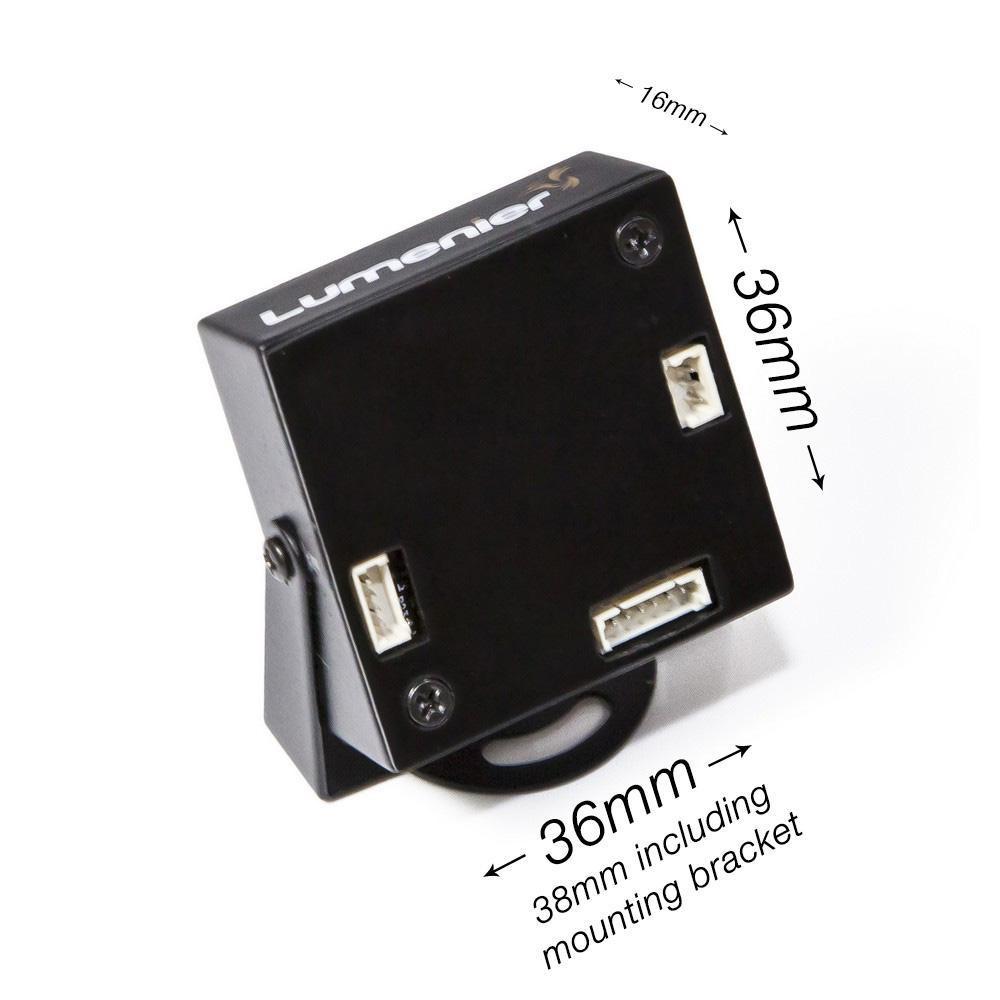

    Dimensions 36mm x 36mm (with case) / 32mm x 32mm
    Operation Temp. –10 C to 50 C

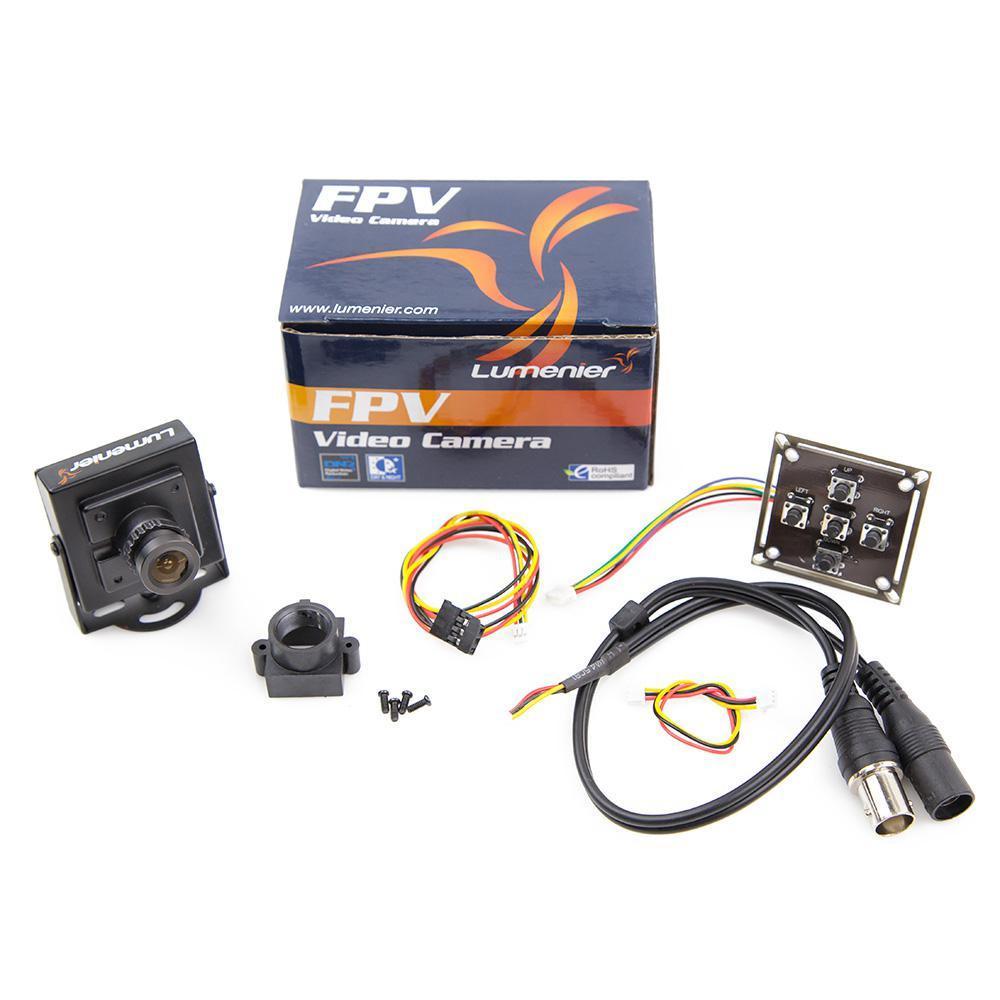

    Shipping Contents

    • 1x Lumenier CS-600 Super - 600TVL D-WDR Camera

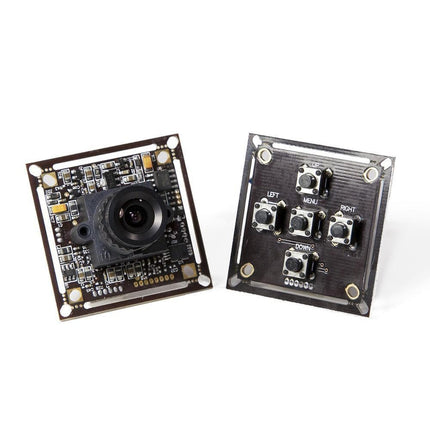

    • 1x OSD control board and cable
    • 1x Lumenier metal case with mounting bracket
    • 1x Custom camera cable with servo connection for easy FPV setup
    • 1x 1.25mm 3 pin cable and 1x with video and power connector
    • 1x Manual
