Mini Computer Router with Raspberry Pi CM4, Dual Gigabit Ethernet, 4GB RAM/32GB eMMC

  • $310.00
  • Save $30
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

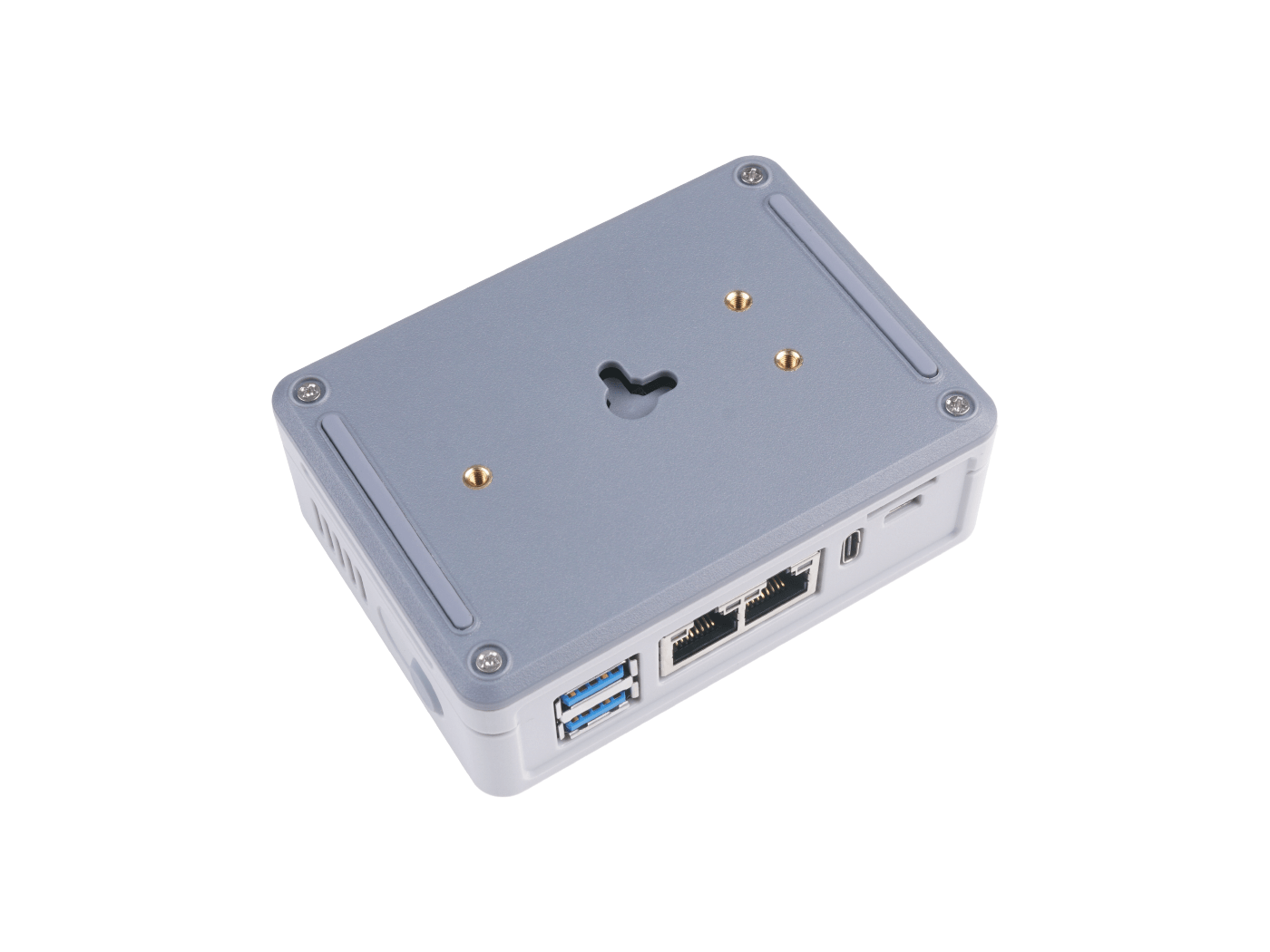

    Mini Computer Router with Raspberry Pi CM4, Dual Gigabit Ethernet, 4GB RAM/32GB eMMC

    The Dual Gigabit Carrier Board powered by Raspberry Pi Compute Module 4 is equipped with dual Gigabit Ethernet ports and dual USB 3.0 ports, making it suitable for soft router applications, while keeping the hardware to a minimum. It has pre-installed Raspberry Pi Compute Module 4 with 4GB RAM and 32GB eMMC to enable fast boot-up times and a smooth overall experience. Also, this comes included with a PC/ABS case with an Aluminum alloy on top which has a large sink in order to cool down the CM4 at extreme loads

    Features

    • Powered by Raspberry Pi Compute Module 4 with 4GB RAM/ 32GB eMMC
    • Compact size (75x64x21mm) with rich I/O peripherals
    • Dual Gigabit Ethernet connectors and OpenWrt firmware pre-installed to realize software router applications
    • Camera/ display connectivity using MIPI CSI, MIPI DSI, and micro-HDMI interfaces
    • Onboard dual USB 3.0 with an additional USB 3.0 9-pin header for more external ports
    • Micro-SD Card slot to load system image for non-eMMC version of CM4
    • More Expandability via FPC Connector (I2C, SPI)
    • External fan support with fan power connector
    • Power using USB Type-C
    • Aluminum alloy top with large heat sink for better heat dissipation
    • PC/ABS case with better protection which is suitable for industrial applications
    • Case with long rubber feet for better stability when placed on a flat surface
    • Keyhole slot wall mount with the ability to hang in two orientations
    • DIN rail mount support with 3 mounting holes

    Description

    The Dual Gigabit Carrier Board powered by Raspberry Pi Compute Module 4 is equipped with dual Gigabit Ethernet ports and dual USB 3.0 ports, making it suitable for soft router applications, while keeping the hardware to a minimum. We have pre-installed a Raspberry Pi Compute Module 4 with 4GB RAM and 32GB eMMC to enable fast boot-up times and a smooth overall experience. You can also replace the installed CM4 with any other CM4 of your choice!

    Out of the two Gigabit Ethernet Ports (RJ45), one Ethernet Port is connected to the Gigabit Ethernet PHY of the CM4 module which is based on Broadcom BCM54210PE. On the other hand, the other Gigabit Ethernet Port is connected to Microchip's LAN7800 which is a USB 3.0 to GbE (Gigabit Ethernet Bridge). The USB 3.0 interface here is extended from the PCIe interface of the CM4 Module. Also, both ports can support speeds up to 1Gbps.

    It features a variety of I/O peripherals such as MIPI CSI, MIPI DSI, micro-HDMI to connect displays/ cameras, a standard 9-pin USB 3.0 header for more USB expansion, a micro-SD card slot, and an FPC connector while maintaining a compact form factor! This board is ideal for HTPC makers, Linux developers, software router enthusiasts, and the majority of regular Raspberry Pi users.

    Also, this comes included with a PC/ABS case with an Aluminum alloy on top which has a large sink in order to cool down the CM4 at extreme loads. It provides better protection as well and is suitable to be used in industrial applications.

    Heat Maps

    The case has long rubber feet for better stability when placed on a flat surface. You can mount this case in two different methods. One is to use the keyhole slot wall mount and hang it on the wall (you can hang in 2 different orientations). The other is to use the 3 mounting holes and mount onto a DIN rail.

    Wall Mount (horizontal and vertical orientations)



    DIN Rail Mount

    OpenWrt Pre-Installed

    The Compute Module 4 comes with OpenWrt firmware pre-installed out-of-the-box. This means you just need to unbox the package, take out the board, connect to your existing home network and have your own mini router!

    OpenWrt is an open-source Linux operating system which runs on embedded devices/ routers. It offers more features, performance, and security than a traditional router. It has a filesystem that’s fully writable and includes a package management system. You can make use of these packages to suit your applications in various ways. Once you connect this board to your home network and access the router from a web browser, you will be presented with a beautiful and interactive dashboard as follows.

    You can navigate in this dashboard, and you will have access to a bunch of features such as:

    • Increase overall network performance when multiple devices are connected
    • Share files between devices via an external storage drive connected directly to the router
    • Increase network security
    • Run a BitTorrent client from the router
    • Connect a printer directly to the router to create a networked printer
    • Limit bandwidth usage of a particular device in the network
    • Active queue management
    • Real time network monitoring
    • Create Dynamic DNS
    • Set Up a VPN client or server
    • Block ads on the network
    By utilizing the above features, you will have unlimited possibilities with this mini router!

    Specifications

    Carrier Board

    Specification Details
    Networking Dual Gigabit Ethernet Connectors
    USB 3.0 to GbE
    (Gigabit Ethernet Bridge)
    Microchip's LAN7800
    USB 2 x USB 3.0 Ports
    1 x USB 3.0 9-Pin Header
    Storage Micro-SD Card Slot (load system Image for non-eMMC CM4 version)
    Camera 1 x MIPI CSI Connector
    Display 1 x MIPI DSI Connector
    1 x Micro HDMI Connector
    FPC Interface for I2C and SPI
    External Fan Power connector for fan
    Power 5V/3A using USB Type-C Port
    LAN7800 Industrial
    Temperature Range
    -40°C to +85°C
    Dimensions 75x64x21mm
    Weight 43g

    Compute Module 4

    Specification Details
    Processor Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
    Memory 4GB LPDDR4
    Storage 32GB eMMC
    Connectivity 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac Wi-Fi, Bluetooth 5.0, BLE with onboard and external antenna options
    Onboard Gigabit Ethernet PHY supporting IEEE1588
    1 × USB 2.0 interface
    PCIe Gen 2 x1 interface
    28 GPIO signals
    SD card interface for SD card or external eMMC
    Video Dual HDMI interface (up to 4Kp60 supported)
    2-lane MIPI DSI display interface
    2-lane MIPI CSI camera interface
    4-lane MIPI DSI display interface
    4-lane MIPI CSI camera interface
    Multimedia H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
    Input power 5V DC
    Operating temperature 0 to +80°C
    Dimensions 55 mm × 40 mm
    Production lifetime Raspberry Pi Compute Module 4 will remain in production until at least January 2028
    Compliance For a full list of local and regional product approvals, please visit:
    www.raspberrypi.org/documentation/hardware/raspberrypi/conformity.md

    Hardware Overview

    Applications

    • Software Router
    • IoT
    • Smart Home
    • Camera Projects

    Part List

    • 1 x Dual Gigabit Ethernet Carrier Board for Raspberry Pi CM4 with 4GB RAM, 32GB eMMC
    • 1 x Aluminum Case
    • 1 x International Wall Adapter Power Supply 5VDC 4A – Type-C (with US/AU/UK/EU plugs)
