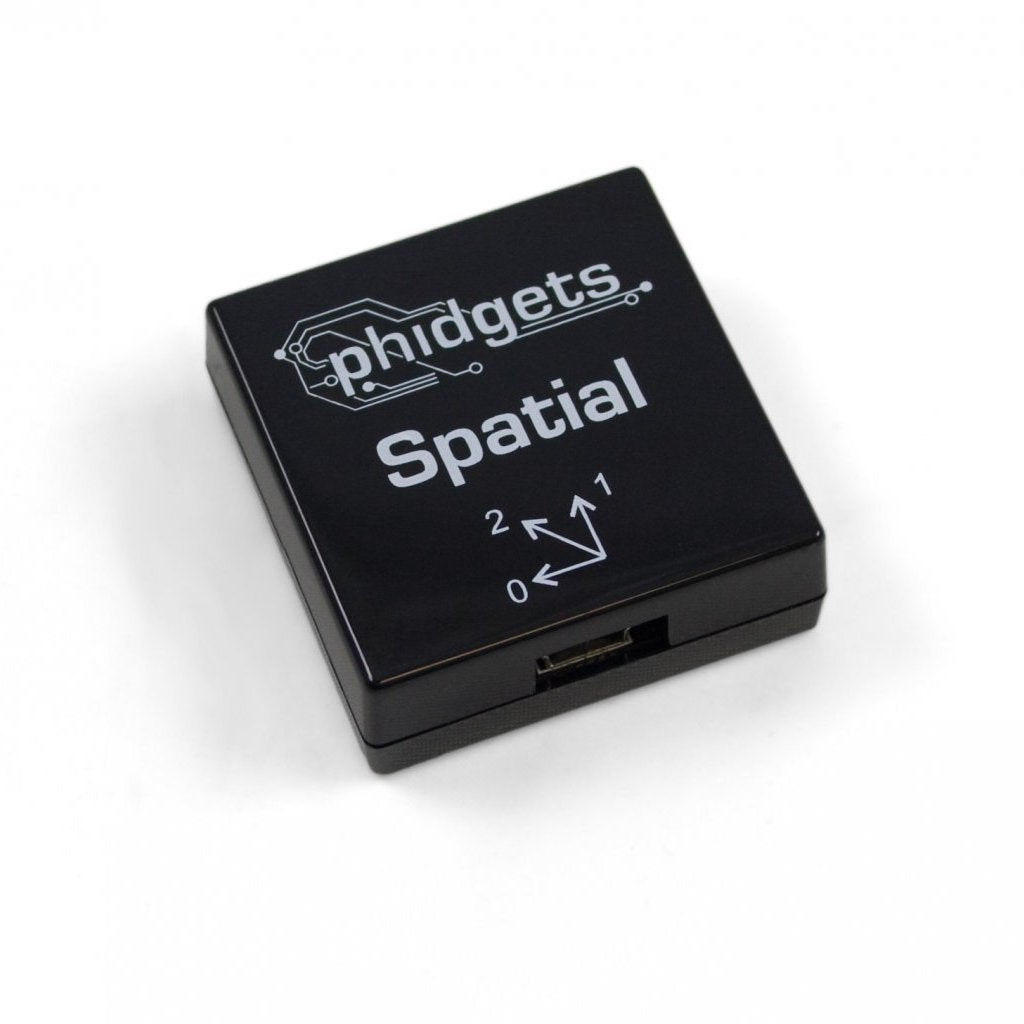

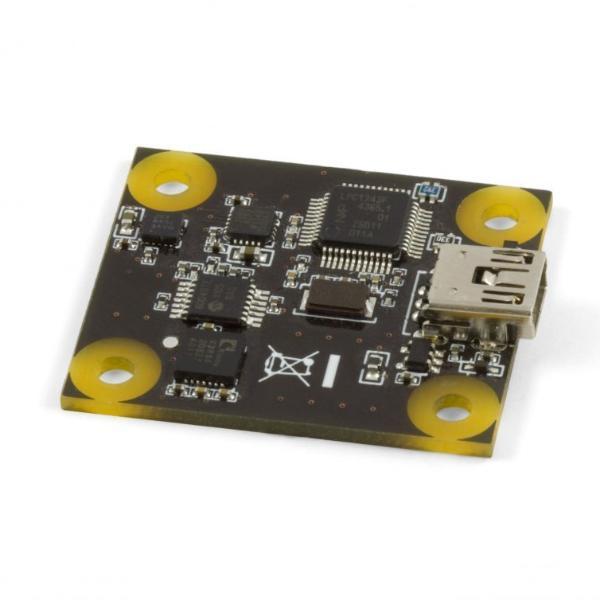

Phidget Spatial 0/0/3 Precision High Resolution 3 Axis Accelerometer ±8g
The PhidgetSpatial Precision 0/0/3 is a 3-axis accelerometer that can measure up to ±8g of acceleration in each axis, and has high precision when measuring acceleration within ±2g. The transition from high precision to low precision mode and back is completely seamless and automatic.
If precision is not an important factor for your application, consider the 1041 - PhidgetSpatial 0/0/3 instead.
The 1043 could be used to:
- Sense tilt angle in remotely controlled vehicles
- Capture motion input data for research purposes
- Detect the presence of nearby movement or vibration
Product Specifications
| Accelerometer |
| Acceleration Measurement Max |
± 2 g |
| Acceleration Measurement Resolution |
76.3 μg |
| Acceleration Bandwidth |
497 Hz |
| Accelerometer White Noise σ |
300 μg |
| Accelerometer Minimum Drift σ |
37 μg |
| Accelerometer Optimal Averaging Period |
103 s |
| Backup Accelerometer |
| Acceleration Measurement Max |
± 8 g |
| Acceleration Measurement Resolution |
976.7 μg |
| Accelerometer White Noise σ |
2.5 mg |
| Board |
| Controlled By |
USB |
| API Object Name |
Accelerometer |
| Current Consumption Max |
35 mA |
| Sampling Speed Min |
1 s/sample |
| Sampling Speed Max |
1 ms/sample |
| Sampling Speed Min (Webservice) |
1 s/sample |
| Sampling Speed Max (Webservice) |
16 ms/sample |
| Analog to Digital Converter Resolution |
16 bit |
| USB Voltage Min |
4.4 V DC |
| USB Voltage Max |
5.3 V DC |
| USB Speed |
Full Speed |
| Operating Temperature Min |
-40 °C |
| Operating Temperature Max |
