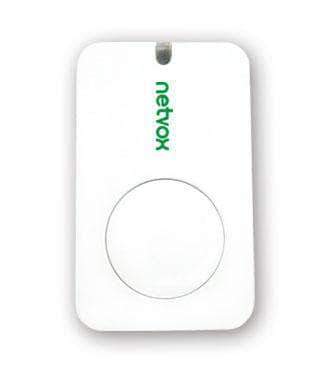

R311FC Netvox LoRaWAN Wireless Activity Timer
The R311FC device detects the duration of the movement or vibration (timekeeping) and sends the duration or timing information of the movement or vibration to the gateway for processing. The duration of the movement or vibration can be up to 1000 hours (theoretical value) and uses SX1276 wireless communication module. The communication is fully compatible with LoRaWAN™ Protocol (Class A).
Features:
-
Wireless Range Of 10 Km
-
LoRaWAN™ Class A Compatible
-
Frequency Hopping Spread Spectrum (FHSS)
-
Improved Interference Immunity
-
Improved Power Management For Longer Battery Life
-
Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
-
Battery Life*2:
⁻ 5 Years
(Conditions: Ambient Temperature 25 °C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
-
Over-The-Air Updates
-
Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
-
Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Battery: https://www.iot-store.com.au/products/lithium-button-cell-battery-cr2450-3v-600mah
Electric:
|
Input Power
|
2pcs 3.0V CR2450 Button Battery
|
|
Working Voltage
|
DC 2.4V～3.0V
|
|
Standby Current
|
42 UA /3.0V
|
|
Transmitting Current (Max)
|
120 MA / 3.0V
|
|
Receiving Current (Max)
|
11 MA / 3.0V
|
|
Battery Voltage Measurement Accuracy
|
±0.1V
|
Frequency:
|
TX Power
|
19dBm±1dBm
|
|
Rx Sensitivity
|
-136dBm
(LoRa，Spreading Factor=12，Bit Rate=293bps )
-121dBm
(FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
|
|
Antenna Type
|
Build-In Antenna
|
|
Communication Range
|
10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)
|
|
Data Transfer Rate
|
0.3kbps～50kbps
|
|
Spread Technique
|
LoRa/FSK
|
|
Available Frequency
|
AU915-928，AS923
|
Physical:
|
Main Body Dimension
|
57mm X 35mm X 14mm
|
|
Weight
|
48.9 G
|
|
Operating Temperature
|
-20℃ ～ 55℃
|
|
Environment Humidity Range
|
<90% RH (No Condensation)
|
|
Storage Temperature
|
-40℃ ～ 85℃
|
