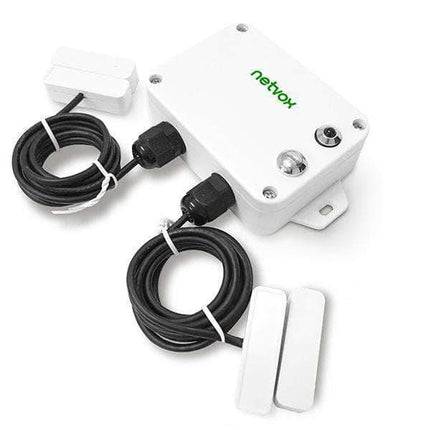

R718F2 Netvox LoRaWAN Wireless 2-Gang Reed Switch Open/Close Detection Sensor
R718F2 Netvox LoRaWAN Wireless 2-Gang Reed Switch Open/Close Detection Sensor
R718F2 utilizes two reed switches to detect whether two objects are separated or not. An example of R718F’s application is to detect the state of a door or window for security purposes. It is based on SX1276 wireless communication module, and the communication is fully compatible with LoRaWAN™ Protocol (Class A).
The reed switch is on (conducting) within the magnetic range, and is off (non-conducting) when it's out of the magnetic range. The module can detect the closing and opening signals so that the state of the door window status can be detected.
Features:
-
Wireless Range Of 10 Km
-
LoRaWAN™ Class A Compatible
-
Frequency Hopping Spread Spectrum (FHSS)
-
Improved Interference Immunity
-
Improved Power Management For Longer Battery Life
-
Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
-
Battery Life*2:⁻ 5 Years
(Conditions: Ambient Temperature 25 °C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
-
Over-The-Air Updates
-
Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
-
Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell
Electric
Input Power |
2 X 3.6V ER14505 AA Lithium Batteries |
Sleeping Mode |
26uA |
Wake Up Mode |
6.3mA@3.3V |
Receiving Current (Max) |
11mA @3.3V |
Transmitting Current (Max) |
120mA/3.3V |
Battery Voltage Measurement |
±0.1V |
Low Voltage Threshold |
3.2V |
Frequency
TX Power |
19dBm±1dBm |
Rx Sensitivity |
-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps ) |
Antenna Type |
Build-In Antenna |
Communication Range |
10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment) |
Data Transfer Rate |
0.3kbps~50kbps |
Spread Technique |
LoRa/FSK |
Available Frequency |
AU915-928, AS923 |
Physical
Dimension |
Main Part: L: 112mm*W: 65mm*H: 32mm |
Weight |
141g |
Environment Temperature Range |
-20℃ ~ 55℃ |
Environment Humidity Range |
<90% RH (No Condensation) |
Storage Temperature |
-40℃ ~ 85℃ |
IP Rating (Main Part) |
IP67 |
IP Rating (External Sensor) |
IP67 |
Documentation:
Payload Format and Examples
Netvox LoRaWAN Application Command V1.9
Netvox LoRaWAN Application Devicetype V1.9
Example of payload (ConfigureCmd)_R718CK2
example of payload (ReportDataCmd)
Frequency Conversion (Sub frequencies of AU915)
Lora Calibrate Tool User Manual
Programming Instruction STlink
