RAK WisNode Sensor Hub Modular Wireless

  • $179.00
  • Save $20
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

    RAK WisNode Sensor Hub Modular Wireless

    Have everything you need for a comprehensive end device in one place. No need to hustle around, the choice is made easy. Connect all the sensors you need to just one device.

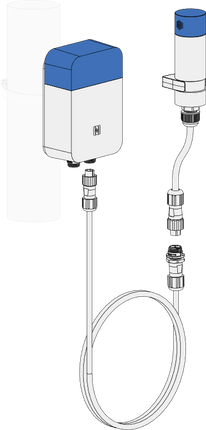

    The RAK2560 WisNode Sensor Hub is a modular sensor ecosystem consisting of the Sensor Hub Smart Datalogger and multiple pre-configured sensor probes. With pluggable, interchangeable probes, and the option to add third-party sensors to the mixture, the Sensor Hub is a suitable and versatile solution platform for various IoT applications where environmental monitoring is needed.

    The Sensor Hub consists of a robust waterproof enclosure with 2 sensor probe ports to connect the sensors or an external power source like a solar panel.

    Depending on the deployment location, the device can work in full battery mode or with an external power supply.

    Sensor Hub and its sensor probes are easily configured via the WisToolBox app, which is available for mobile and desktop.

    Sensor Hub Features:

    • Full LoRaWAN band support
    • Based on RAK4630 (MCU: nRF52840, Radio Chip: SX1262)
    • RUI3-based firmware
    • Auto-detection of the power source
    • Auto-detection of the Sensor Probes
    • 2~4 pcs 3.6 V ER18505 4000mAh Li-SOCl2 Non rechargeable batteries (not included)
    • 12 V DC power supply or solar panel
    • NB-IoT interface module (RAK5860) support (optional)
    • Embedded antenna
      • High-efficiency LoRa antenna 860~930 MHz
    • NFC tag for power on and smart connect over BLE
    • Prevent theft via the hall effect sensor on the exclusive mounting bracket
    • IP66-rated waterproof enclosure
    • Multiple Sensor Probes or Probe IO can be connected to a single Sensor Hub port with the Splitter cable

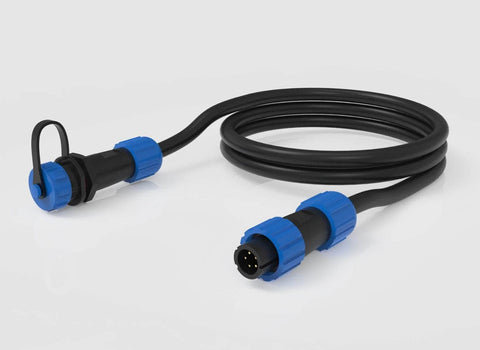

    • Distance between the sensors can be adjusted with the extension cable

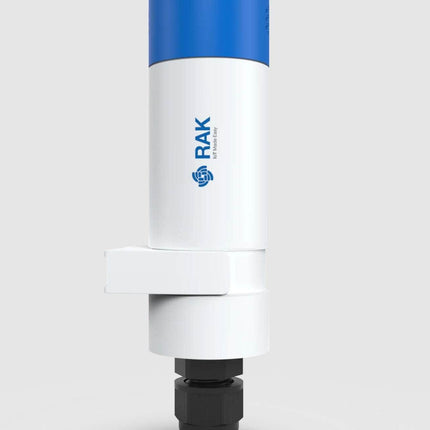

    Sensor Probe (sold separately)

    The Sensor Probe is an accessory for the Sensor Hub solution platform. It supports up to 2 preselected WisBlock sensors in various combinations to provide the needed data.

    Sensor Probe Features:

    • Auto-identification of the sensor type
    • One-wire protocol
    • Waterproof (IP67-rated for the probe body)
    • Supports up to 2 preselected WisBlock sensor modules

    More information can be found on the Sensor Probe and Sensor Probe IO pages.
