Industrial NDIR CO2 Sensor MODBUS-RTU RS485 & SDI-12

  • $189.00
  • Save $10
  • (Exc. GST)


  • Available in stock (Some options may not be in our stock, but short lead time)

  • Shopify secure badge
  • $ We Ship Worldwide from AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Further Discounts for Higher Quantities & Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

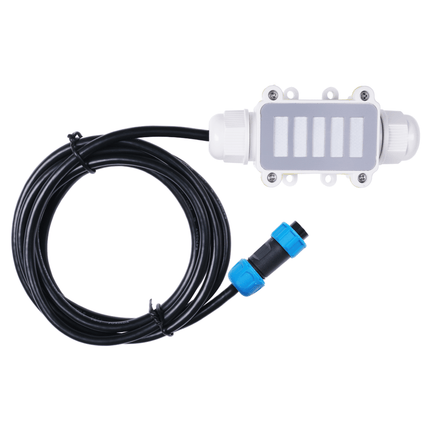

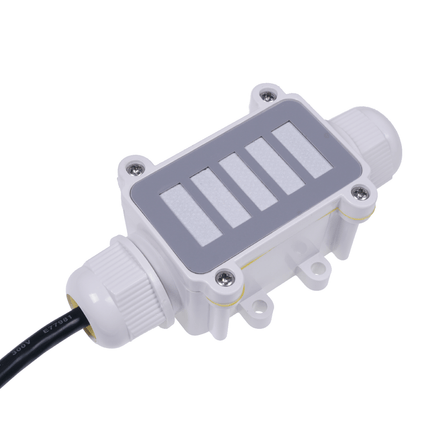

    Industrial NDIR CO2 Sensor MODBUS-RTU RS485 & SDI-12

    This digital NDIR CO2 concentration sensor supports Modbus (Modbus-RTU/Modbus-ASCII) RS485 and SDI-12 communication protocols, built-in calibration functionality, and compact in size, making it widely applicable in greenhouses, cities, poultry farms, transportation stations, and other application scenarios where CO2 level is needed.

    Features

    • High performance: high accuracy, fast response, and superior stability
    • support MODBUS RS485 and SDI-12
    • Compact size, best performance-to-price ratio
    • User-friendly: fully-calibrated, easy to install and integrate
    • Wide-range Power Supply: 5V ~ 16V
    • Wide Range & High Accuracy: 400ppm ~ 5,000 ppm, ± (50ppm+5%*MV)


    CO2 has a large impact on us - human activities, plants, and animals, basically everything on this planet. In agriculture, CO2 is vital for photosynthesis, and increases in CO2 concentration could be beneficial to crops such as wheat, rice, and soya beans, etc. [Source: Climate Change and World Agriculture] Whereas, a high CO2 level may lead to asphyxiation to human and animals. The CO2 emissions trapped inside the atmosphere are the major factor of global warming. CO2 also results in ocean acidification, which creates tremendous harm to marine life.

    The CO2 level is also an important indicator of whether the air quality in the room is sub-par,  which will suggest when we should turn on the HVAC (heating, ventilation, air conditioning) system of indoor environments no matter for offices, homes, or gyms to increase air circulation. Thus, accessing data on the CO2 level is important for humans to detect potential problems. When sufficient scientific data are available, we will know what actions to take under different circumstances more effectively.

    This is a digital CO2 concentration sensor based on NDIR (nondispersive infrared), which can continuously collect and calculate the CO2 concentration in the air per unit volume and output in the form of a universal interface. It's designed to adopt PTFE film combined with a protective enclosure, improving its breathable performance. It is more accurate, stable, reliable, low-power consumption, and user-friendly. It compacts in size and can be easily integrated into various application scenarios.

    This digital NDIR CO2 concentration sensor supports MODBUS RS485 serial communications, SDI-12 communication protocols, and is compatible with the wide power supply voltage of 5-16V. It has a built-in calibration functionality and can be widely applied in both indoor and outdoor environments. This product also adopts both single-air-chamber and double-channel.

    Applications

    • Smart Agriculture
    • Smart Cities
    • Building ventilation systems
    • Industry ventilation systems
    • Airport, train station, shopping mall, home, office, classroom, and others
    • public places for air quality measurement and indication
    • Lab, warehouse, and other places to monitor the CO2 level

    Specifications


    CO2
    Range 400~5000 ppm
    Accuracy ± (50ppm+5%*MV)(in 400~3000ppm)
    Resolution 1 ppm
    General Parameters
    Product Model SOLO CO2 5000 (A1)
    Interface RS-485
    Protocol MODBUS-RTU RS485/ MODBUS-ASCII RS485/ SDI-12 (v1.4)
    Response Time (T90) <5 minutes for 90% step change typical
    IP Rating IPx5
    (the PTFE filter is not waterproof)
    Operating Temperature -10 ~ +50 °C
    Operating Humidity 0 ~ 85% (non-condensing)
    Cable Length 2 meters

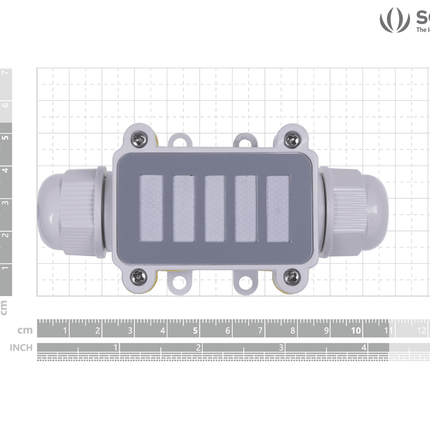

    Probe Dimensions 110 * 50 * 35 mm
    Device Weight 300g
    MODBUS RS-485
    Power Supply 5V ~ 16V
    Current Consumption Vin=16V; 22mA (typical)
    Vin=12V; 28mA (typical)
    Vin=9V; 34mA (typical)
    Vin=5V; 57mA (typical)
    Warm-up Time 120s (typical)
    Scan Interval 1s
    Poll Rate 1Hz
    Response Time ≤ 4ms
    SDI-12
    Power Supply 5V ~ 16V
    Current Consumption
    (Sleep Mode)
    Vin=16V; 28uA (typical)
    Vin=12V; 29uA (typical)
    Vin=9V; 30uA (typical)
    Vin=5V; 35uA (typical)
    Current Consumption
    (Active Mode)
    Vin=16V; 20mA (typical)
    Vin=12V; 27mA (typical)
    Vin=9V; 33mA (typical)
    Vin=5V; 55mA (typical)
    Warm-up Time 15ms
    Scan Interval 120s (typical)
