Industrial Soil Moisture, Temperature & EC Sensor MODBUS-RTU RS485 (S-Soil MTEC-02B)

  • $189.00
  • Save $30
  • (Exc. GST)


  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  •

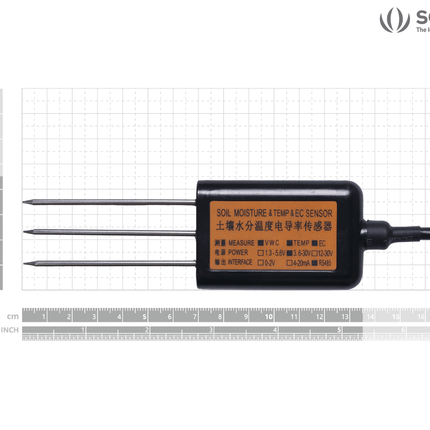

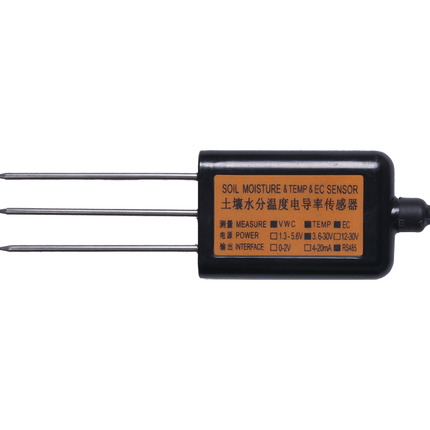

    Industrial Soil Moisture, Temperature & EC Sensor MODBUS-RTU RS485 (S-Soil MTEC-02B)

    This industrial-grade MODBUS-RTU RS485 Soil Moisture & Temperature & EC Sensor features high accuracy, reliability, stability, and durability. It can be widely used in monitoring soil moisture, soil temperature, and soil EC in professional application scenarios.

    Soil moisture is the water stored in the soil. Soil temperature is the warmth of the soil. Soil electrical conductivity (EC) is the level of salts in soil (salinity). These parameters are very important indicators of soil fertility and health, which ultimately affects the plants. When there is a high soil salinity, the salt will make it difficult for the plants to consume water even though there is a high moisture level in the soil. This will ultimately "burn" the plants. Meanwhile, too much moisture in the soil is not only bad for the plants but also wastes water and adds extra burdens to our planet earth.

    Plants grow best at their preferred environment, at the optimal ranges of soil moisture, temperature, and EC level. It's important for growers to get access to the data of these parameters, to get insights on what actions need to be taken to ensure plant health and higher yield.

    This Soil Moisture & Temperature & EC Sensor MODBUS-RTU RS485 (S-Soil MT-02B) is designed with industry standards, featuring high precision and high sensitivity and durability. Incorporating three sensors (soil moistures sensor, soil temperature sensor, and soil electrical conductivity) into one, with auto temperature compensation, this sensor ensures the accuracy of measurements regardless of the environment changes.
    By measuring the dielectric constant of the soil, it can stably measure the soil VWC (volumetric water content) regardless of various soil types. The measurement conforms to current international standards for soil moisture measurement.

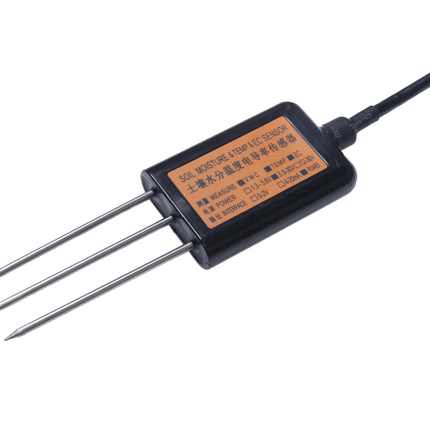

    The stainless steel probe can be permanently inserted in the soil with quick testing for long-term use. This soil sensor is IP68 rated, very robust and durable, suitable to be applied at long-term monitoring of soil moisture, temperature and electrical conductivity at scientific experiments, water-saving irrigation, gardening, greenhouses, outdoor farming, horticulture, golf turf management, forestry, precision agriculture, and other professional environmental monitoring scenarios. It can also be applied in the water, nutrient solution, and other kinds of substrates where the EC level is needed.

    Features

    • High Performance: high accuracy, reliability, and stability
    • Compact Design: 3-in-1, soil moisture, temperature, and EC sensor
    • Universal Protocol: MODBUS-RTU RS-485
    • Wide range power supply: 3.6V ~ 30V
    • Industrial-grade Robustness: IP68 rated, suitable for long-term applications
    • Widely Applicable: can be used in soil, water, nutrient solution, and other substrates
    • Strong Anti-interference: made of flame-retardant epoxy resin
    • High Durability: anti-corrosion, with excellent performance for long-term use
    • User-friendly: easy to use, install and integrate

    Specifications

    General Parameters
    Product Model S-Temp&VWC&EC-02B
    Interface RS-485
    Protocol MODBUS-RTU RS485
    Power Supply 3.6 ~ 30V DC
    Current Consumption

    6mA@24V DC

    (quiescent dissipation)

    Operating Temperature -40℃ ~ +85℃
    Probe Material Anti-corrosion special electrode
    Sealing Material Black flame-retardant epoxy resin
    IP Rating IP68

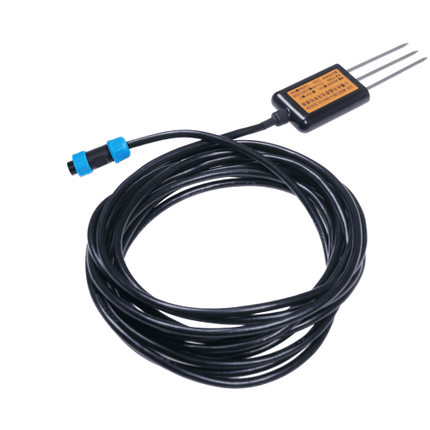

    Cable Length 5 meters
    Installation All buried or probe into the media to be measured
    Device Weight 210g
    Soil Temperature
    Range -40℃ ~ +80℃
    Accuracy ± 0.5 ℃
    Resolution 0.1℃
    Soil Moisture
    Range

    From completely dry to fully saturated

    (from 0% to 100% of saturation)

    Accuracy

    ±2% (0~50%)

    ±3% (50~100%)

    Resolution

    0.03% (0~50%)

    1% (50~100%)

    Electrical Conductivity
    Range 0 ~ 10000 μs/cm
    Accuracy ± 3%
    Resolution 10 μs/cm
    Temperature Compensation

    Built-in temperature compensation sensor,

    Range: 0-50°C



    Wiring Diagram
