TC01/TC11-LB LoRaWAN Thermocouple Converter

  • $129.00
  • Save $20
  • (Exc. GST)

  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

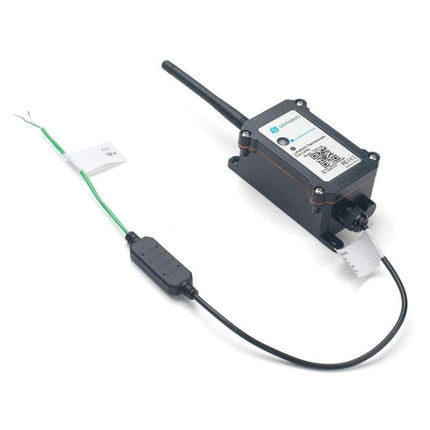

  • TC01/TC11-LB LoRaWAN Thermocouple Converter

    The Dragino TC01/TC11-LB is a LoRaWAN Thermocouple Converter for the Internet of Things solution. It is used to measure the industrial environment temperature, and then upload to the IoT server via the LoRaWAN network.

    The TC11-LB is used with K-Type thermocouples and can measure -50°C ~ 200°C. TC01-LB is with 2 open wires so the user can connect a 3rd party K, J, N, R,S T, E, or B-type thermocouple.

    TC01/TC11-LB supports a temperature alarm feature, user can set a temperature alarm for instant notice. TC01/TC11-LB supports the Datalog feature, It will record the data when there is no network coverage and users can retrieve the sensor value later to ensure no miss for every sensor reading.

    TC01/TC11-LB supports BLE configuration and wireless OTA update which make users easy to use.

    TC01/TC11-LB is powered by an 8500mAh Li-SOCI2 battery, it is designed for long-term use up to several years.

    Each TC01/TC11-LB is pre-loaded with a set of unique keys for LoRaWAN registrations, register these keys to the local LoRaWAN server and it will auto connect after power on.


    • LoRaWAN 1.0.3 Class A
    • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
    • Ultra-low power consumption
    • K Type Thermocouple (-50 ~ 200°C)  (For model TC11)
    • 2 wire to 3rd party Thermocouple (For model TC01)
    • Temperature alarm
    • Datalog Feature
    • Support Bluetooth v5.1 and LoRaWAN remote configure
    • Support wireless OTA update firmware
    • Uplink on periodically
    • Downlink to change configure
    • 8500mAh Li/SOCl2 Battery




    Common DC Characteristics:

    • Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
    • Operating Temperature: -40 ~ 85°C

    LoRa Spec:

    • Frequency Range,  Band 1 (HF): 862 ~ 1020 Mhz
    • Max +22 dBm constant RF output vs.
    • RX sensitivity: down to -139 dBm.
    • Excellent blocking immunity


    • Li/SOCI2 un-chargeable battery
    • Capacity: 8500mAh
    • Self-Discharge: <1% / Year @ 25°C
    • Max continuous current: 130mA
    • Max boost current: 2A, 1 second

    Power Consumption

    • Sleep Mode: 5uA @ 3.3v
    • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
