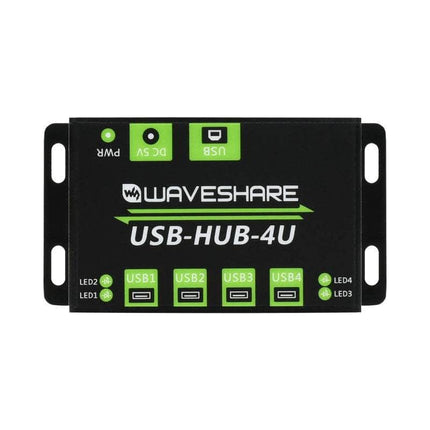

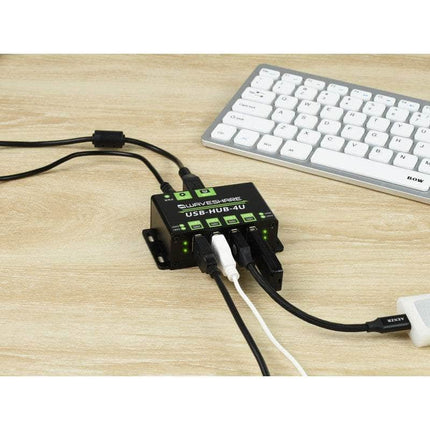

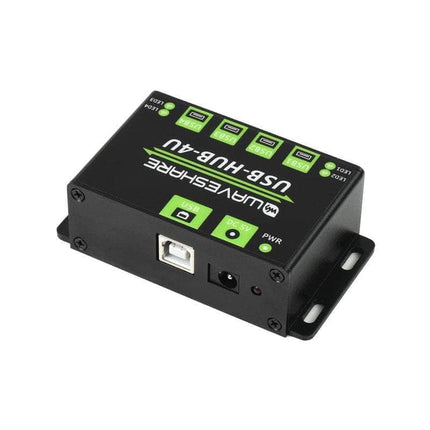

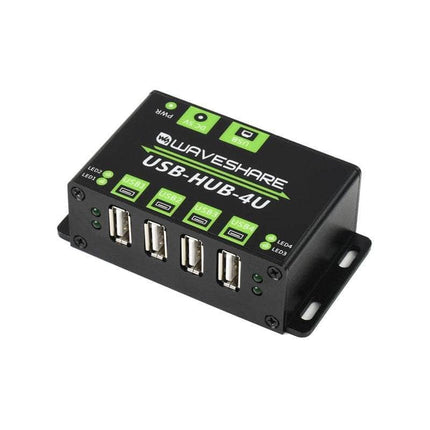

Industrial Grade USB HUB, Extending 4x USB 2.0 Ports
Industrial Grade USB HUB, Extending 4x USB 2.0 Ports
Features:
- 4x extended USB ports, compatible with USB 2.0 / 1.1
- Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 4x concurrent USB connections
- ESD protection for each USB port, preventing electric surge damage and data loss
- Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
- Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under-voltage lock-out, 8KV ESD protection, filtering protection, etc.
- LED indicators for monitoring operating statuses of power supply and USB ports
- Industrial grade metal case, rugged & durable, with mounting holes for easy installation
Specifications
| STANDARD | USB 2.0 |
|---|---|
| DATA RATE | up to 480Mbps |
| USB HUB INPUT |
operating voltage: 5V connector: USB-B |
| USB OUTPUT |
operating voltage: 5V@Imax:1.2A① connector: USB-A |
| EXTERNAL POWER |
power supply voltage: DC 5V② connector: DC jack |
| OPERATING ENVIRONMENT | -40℃ ~ 85℃ |
| OS SUPPORT | Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP |
Interface Introduction
Outline Dimensions
Wiki: USB-HUB-4U
