2 Ports Serial RS232/RS485/RS422 to Ethernet Converter USR-N520

  • $179.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

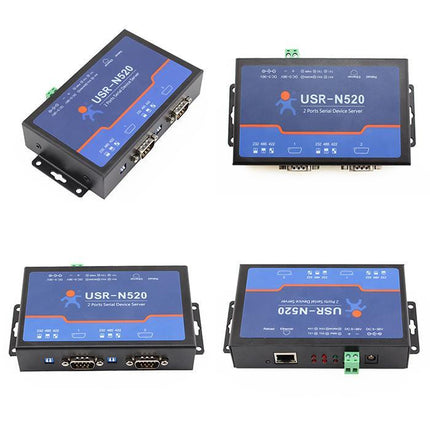

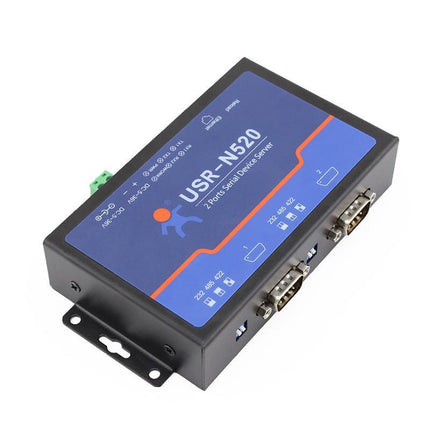

  • 2 Ports Serial RS232/RS485/RS422 to Ethernet Converter USR-N520

    2-port serial to Ethernet servers USR-N520 can realize transparent transmission between TCP/UDP data package and RS232/RS485/RS422 interface.

    ● 2-port RS-232/422/485 serial to Ethernet servers
    ● Power supply accepts wide voltage input range DC 5-36V
    ● Support TCP server/client, UDP server/client, https client, Virtual COM
    ● Support Modbus RTU to Modbus TCP
    ● Support flow control CTS/RTS, XON/XOFF
    ● Support 2 RS-232, RS-485/422 3IN1 serial port to 1 10/100Base-T(X) self-adaptive Ethernet interface
    ● Configuration via Web Server page, AT commands, and Windows Utility

    Note: This kit includes the AU power adapter, DB9 cable, and connectors.

    Features of 2 ports RS232/485/422 Serial Device Servers

    • Cortex-M4 kernel, industrial working temperature range and TCPIP protocol stack.
    • Auto-MDI/MDIX, RJ45 port with 10/100Mbps
    • TCP Server, TCP Client, UDP Client, UDP Server and HTTPD Client work mode
    • Support network printing
    • Support Modbus multi-host polling
    • Two ports can work independently at the same time
    • Support Modbus RTU to Modbus TCP
    • Can distinguish which serial port connects to the device via port number
    • Support virtual serial port and provide corresponding software USR-VCOM
    • Serial baud rate from 600bps to 230.4K bps; Check bit of None, Odd, Even, Mark and Space
    • DNS and DHCP supported
    • Provide PC TCP/IP socket programming example such as VB, C++, Delphi, Android and IOS
    • Built-in webpage; also can customize webpage for users
    • Reload button, one key to restore default settings
    • RJ45 with Link/Data indicator light, built-in isolation transformer and 2 KV electromagnetic isolation
    • The global unique MAC address bought from IEEE (begin with D8-B0-4C); user can define MAC address
    • Support upgrade firmware via network
    • Support keepalive, rapidly detect dead links
    • Support account and password can be used to page login and network settings
    • Support one channel Websocket, realize bidirectional transparent transmission between webpage and serial 0
    • Two serial ports;each serial can work as rs232,rs485 or rs422;DB9 female;provide rs485/rs422 converter
    • Two channel serial communication indicator: TX/RX
    • Support DC adapter and 5.08-2 terminal power supply
    • Support UDP broadcast function

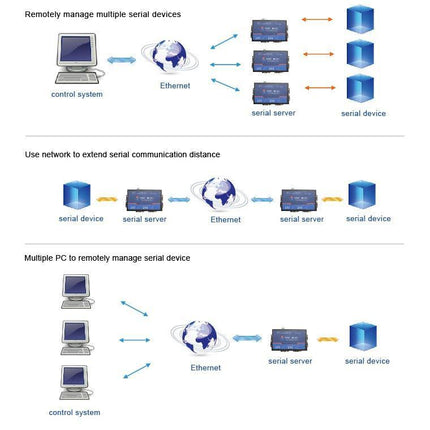

    Simple Transparent transmission

    The transparent transmission means that whatever is transferred, our device plays the role of a channel and sends data to the target without modification. On-site monitoring equipment sends data to Serial Device Servers transparent data transmission terminal by itself port, the terminal CUP receives data by serial port and package data.

    Various parameter setting method

    Software Settings
    Download settings software, search related Serial Device Servers in the LAN through the serial port server IP, name, MAC address, or the version number. Then set the parameters you need, otherwise, keep the default.
    Web-page Settings

    1. Open your browser and enter the default IP address of the Serial Device Servers.
    2. Open the login page of Serial Server, Enter the username and password (default admin).
    3. After setting parameter, Click Save and Restart, then setting will take effect.

    Serial AT commands Settings
    User can set parameter by module itself without going through another computer to configure. This setting method is used in the following situation: user have to configure IP address and destination IP address on site. AT command can meet the demand. After MCU connects serial server module by TTL (UART), MCU can configure setting by AT command.

    Application Field of 2 ports RS232/485/422 Serial Device Servers

    • Industrial data transmission, industrial automation
    • security and protection monitoring, public security
    • Smart home, power control, environmental monitoring, intelligent agriculture
    • Door check on work attendance system, POS system, rice selling system
    • Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
    System Information
    Processor Cortex-M4
    Basic Frequency 120MHz
    Flash 512K byte
    Ethernet
    Port Number 1
    Interface Standard RJ45
    Rate 10/100 Mbps MDI/MDIX, auto switch between cross and direct connection
    Protection 2KV electromagnetism isolation, shell insulation blocking
    Network Protocol IP, TCP, UDP, DHCP, DNS, https, ARP, ICMP, Websocket, httpsD Client
    Receive Buffer Max 16k bytes buffer
    Serial
    Port Number 2 (RS232/485/422*2), 2 serial ports can simultaneously work at the different working modes.
    Interface Standard
    RS-232: TX/RX/RTS/CTS
    RS-485: A+/B-
    RS422: TX+/TX-/RX+/RX-
    Data Bits 5, 6, 7, 8
    Stop Bit 1, 2
    Check Bit None, Even, Odd, Space, Mark
    Baud Rate 600 bps ~ 230K bps
    Flow Control RTS/CTS/Xon/Xoff
    Buffer Send and receive 2k bytes respectively
    Protection ESD protection, anti-surge
    SocketA
    Transparent Transmission Mode TCP Server/TCP Client/UDP Server/UDP Client
    Supported Function Networking printing, Modbus Gateway, USR-Cloud, self-defined registration package, self-defined network and serial heartbeat package
    SocketB TCP Client/UDP Client
    Software
    Virtual Serial(USR-VCOM) Windows 2000 or higher (32 bit/64 bit)
    Configuration Built-in webpage, computer set-up software, serial command
    Basic Parameter
    Size 150 x 79 x 30 mm
    Operating Temp. -40 ~ 85°C
    Storage Temp. -45 ~ 105°C, 5 ~ 95% RH
    Input Voltage DC 5 ~ 36V
    Working Current
    95mA (aver) @ 5V
    45mA (aver) @ 12V
    Power <1W
    More
    Certificate CE, FCC, ROHS, KCC and WEEE pending
    Warranty 2 years
    Accessory 12V power supply, serial line, cable, converter



    2 serial ports rs232 to ethernet converters/rs485 to ethernet converter/ RS-232/422/485 serial device server USR-N520

    Model name

    Description

    USR-N510

    1 RS232/485/422 to Ethernet device server

    USR-N510-4

    1 RS485 to Ethernet device server

    USR-N520

    2 RS232/485/422 to Ethernet device server

    USR-N520-6

    2 RS232/485 to Ethernet device server

    USR-N540

    4 RS232/485/422 to Ethernet device server

    USR-N540-4

    4 RS485 to Ethernet device server

    USR-N580

    8 RS485 to Ethernet device server

    basic function of 2 serial ports rs232 to ethernet converters/rs485 to ethernet converter USR-N520

    Basic Function of Serial to Ethernet Servers

    Industrial Hardware Design of rs232 to ethernet converters/rs485 to ethernet converter USR-N520

    Industrial Hardware Design

    Industrial solution TI cortex-M4

    Watch dog, serial to ip converter/serial port to ethernet converter/rs232 to lan converter USR-N520

    Watch dog

    Hardware watchdog design,
    never crash in 24 hours

    serial to ip converter/serial port to ethernet converter/rs232 to lan converter: Serial Ports

    Serial Ports

    Baud rate: 600bps~230.4Kbps
    Hardware flow control: RTS/CTS
    Software flow control: XON/XOFF
    Serial data can be divided into frames flexibly

    rs485 over ethernet/serial to ethernet device servers/rs232 to ip converter/rs422 to ethernet converter USR-N520: Serial Port Switching Among RS232/RS485/RS422

    Serial Port Switching Among RS232/RS485/RS422

    rs485 over ethernet/serial to ethernet device servers/rs232 to ip converter/rs422 to ethernet converter  USR-N520: Power supply supports Anti-reverse

    Power supply supports Anti-reverse

    Wide voltage: 5~36V

    Function Structure of 2 serial ports serial to Ethernet servers USR-N520

    Function Structure

    serial rs232 to ethernet converter/485 to ethernet/converter serial to ethernet USR-N520:TCP Server

    Work mode

    TCP Server

    Serial to Ethernet servers USR-N520 listens on the setting port
    and waits for a TCP client connection.
    The data which the serial ports sent out transparently
    transmit to all connected TCP clients via USR-N520.

    TCP client mode

    Serial to Ethernet servers USR-N520 initiates a TCP connection to the set IP address.
    If the connection fails, USR-N520 will keep trying to reconnect until it succeeds.
    Once the connection is successful, the data will be transparently
    transmitted between PC and serial device in bi-directional.

    work mode of serial rs232 to ethernet converter/485 to ethernet/converter serial to ethernet  USR-N520:TCP Client

    UDP mode

    Serial to Ethernet servers USR-N520 will transmit serial data from serial device to
    target network device by UDP connection.
    USR-N520 will listen to port and transmit all received data to serial device.

    work mode of rs232 to rj45 converter/modbus to ethernet converter/rs485 to ip converter/converter rs485 to ethernet USR-N520: httpsD Client

    httpsD Client

    Supports https Client mode which can transmit serial data to the https server in https format(GET/POST).

    rs232 to rj45 converter/modbus to ethernet converter/rs485 to ip converter/converter rs485 to ethernet USR-N520:httpsD Client
    rs232 to rj45 converter/modbus to ethernet converter/rs485 to ip converter/converter rs485 to ethernet USR-N520 Supports WebSocket Sever

    WebSocket

    Supports WebSocket Sever,
    Built Websocket link with devices by Websocket of webpage HTML5
    Data transmission between built-in webpage and serial port in bi-directional
    Custom webpage and websocket are acceptable
    Achieves the functions of displaying data in real-time

    2 serial ports serial to Ethernet servers USR-N520, Virtual Com Software

    Virtual Com Software

    modbus rs485 to ethernet converter USR-N520 supports Socket B function

    Features

    Socket B function

    Serial to Ethernet servers USR-N520 supports the secondary network link, which can send data to two servers.
    Used for data backup, remote diagnosis, and other requirements.

    modbus rs485 to ethernet converter USR-N520 supports Serial & Network Heartbeat Packet

    Serial & Network Heartbeat Packet

    Network Heartbeat Packet: Serial server maintains the normal connection with the server by sending heartbeat
    packet regularly. Serial Heartbeat Packet: Serial server informs serial device is active, can be applied in
    actively catching sensor data.

    modbus rs485 to ethernet converter/serial port to lan converter USR-N520 Support modbus RTU/modbus TCP function

    Support modbus gateway

    modbus rs485 to ethernet converter/serial port to lan converter USR-N520

    More function

    Customize webpage, Synchronized baud rate,
    net printing, registration package, cloud

    serial to ethernet device servers/serial to rj45 converter/ USR-N520 provides software
    Industrial serial to ethernet converter USR-N520: Unattended Weighing System

    Application

    [ Unattended Weighing System]

    Connect serial to Ethernet servers USR-N520 to barrier gate and it can realize remote
    control of barrier gate by Ethernet in control center.

    application of 2 serial ports serial to Ethernet servers USR-N520: Electric power
    application of serial over ethernet server/ethernet to serial converter USR-N520:Traffic control
    application of rs232 to rs485 converter/serial over ethernet converter USR-N520: industrial automation
    Documents
    [User Manual]USR-N520-User-Manual-EN-V1.0.4
    [AT Command] USR-N520-AT-Command-Set_V1.0.0
    [User Manual] USR-N520 Quick Start Guide
    [Datasheet] USR-N520 Datasheet
    [Certificate] ROHS2.0-Certificates-For-Serial-Etherent
    [Certificate] M4 Series CE FCC ROHS WEEE Certificate
    [User Manual] USR-N5X0 User Manual
    [application case] USR-N5X0 Connects to USR Cloud
    Development Files
    [Socket_Demo] Socket_Demo.zip
    [Config Protocol] E45&M4 Series Config Protocol V1.
    Utilities
    [[PC Test Software]] USR-TCP232-Test-V1.3
    [Configuration Software]USR-TCP232-M4_V2.3.4.106
    [ Virtual COM Software]USR-VCOM_V3.7.2.529_Setup
