ADC click - MikroElektronika 12-bit Analog to Digital Converter

  • $30.00
  • Save $15
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  • ADC click - MikroElektronika 12-bit Analog to Digital Converter

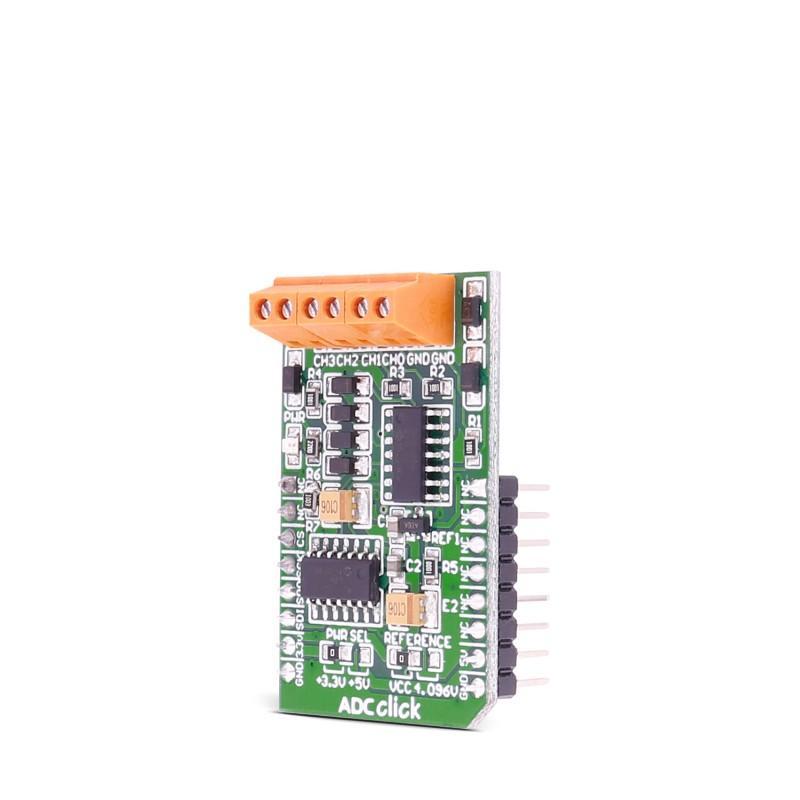

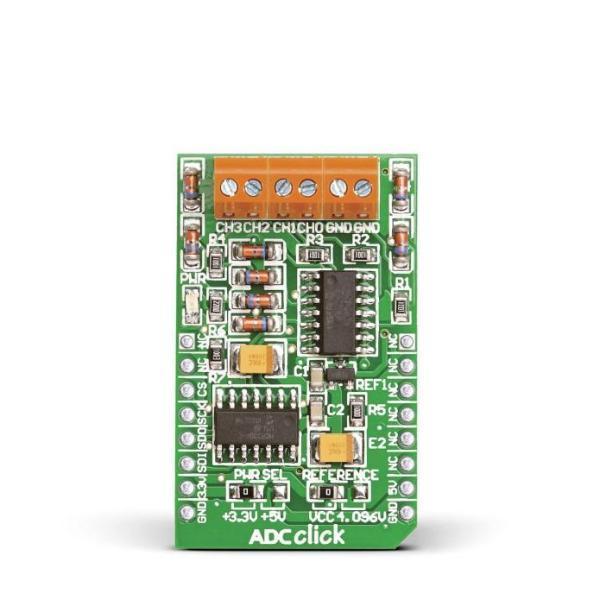

    ADC click carries the MCP3204 12-bit Analog-to-Digital converter. The click is designed to run on 3.3V by default. Place PWR SEL SMD jumper to 5V position if used with 5V systems. It communicates with the target microcontroller over SPI interface.

    MCP3204 features

    MCP3204 Analog-to-Digital converter features 50k samples/second, 4 input channels and low power consumption (500nA typical standby, 2µA max).

    Reading Analog inputs

    There are four analog input screw terminals for each of the supported A/D channels. We added two more terminals for GND reference. Each analog input voltage is converted to an appropriate 12-bit digital value, which can be read using industry standard SPI communication interface.

    Specifications

    Type ADC
    Applications Board can be used in applications such as data acquisition, instrumentation, measurement, etc.
    On-board modules Analog-to-Digital Converter (ADC) MCP3204
    Key Features 12-bit resolution of Analog-to-Digital conversion
    Key Benefits Low power consumption (500nA typical standby)
    Interface SPI
    Input Voltage 3.3V or 5V

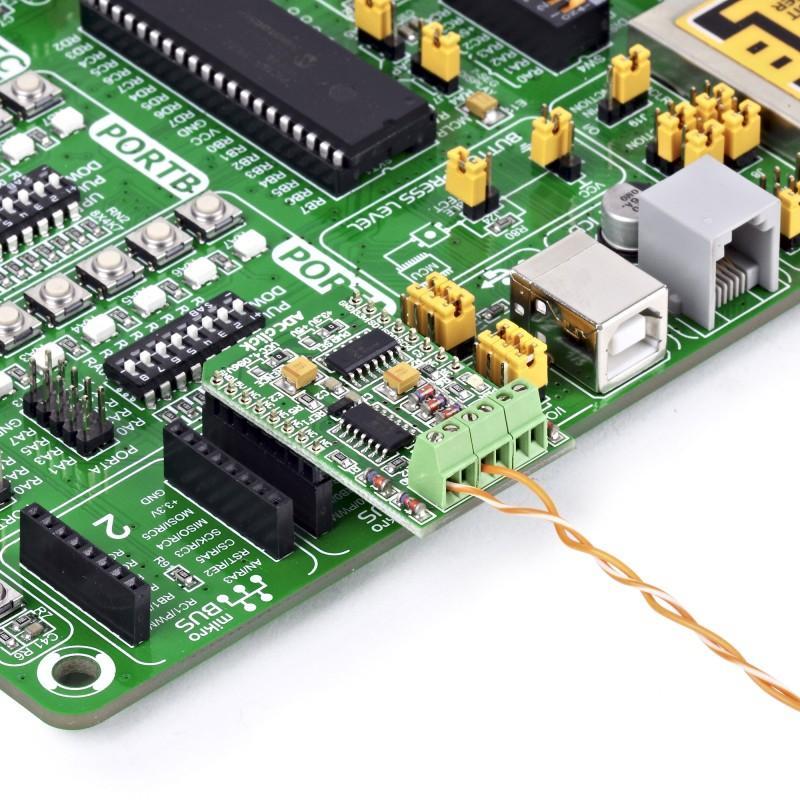

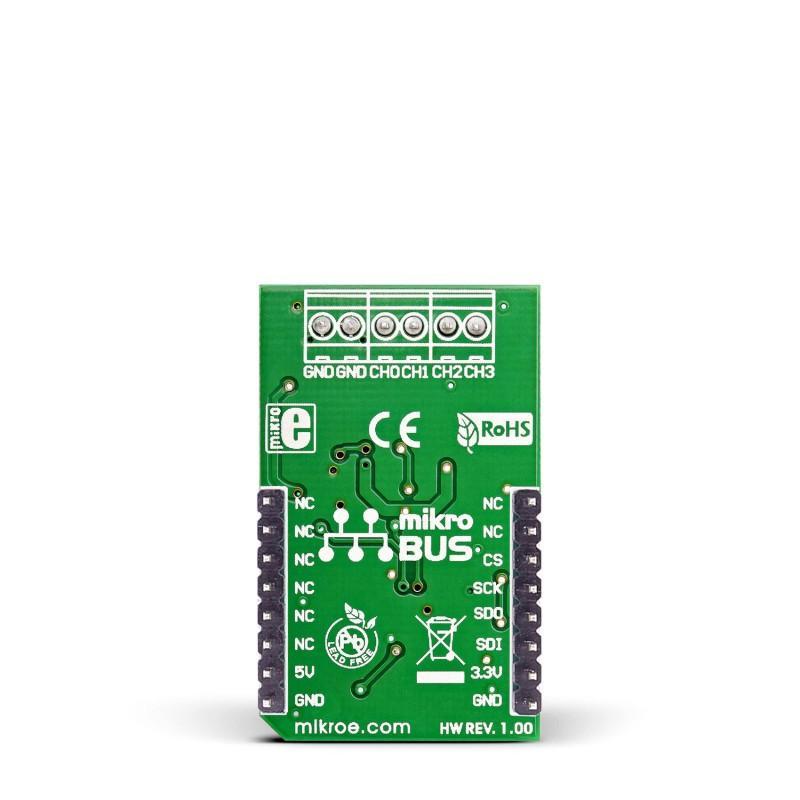

    Compatibility mikroBUS
    Click board size M (42.9 x 25.4 mm)
