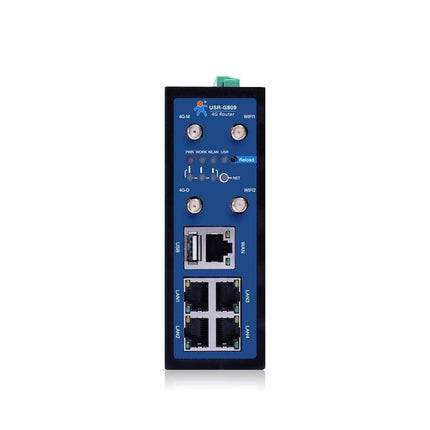

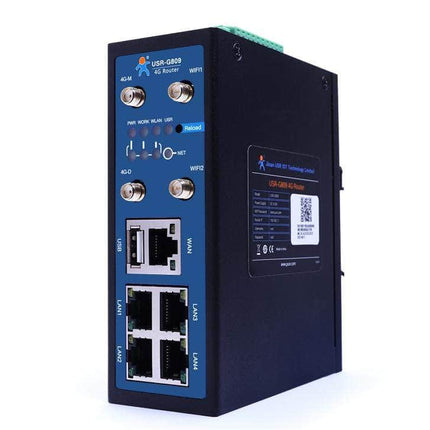

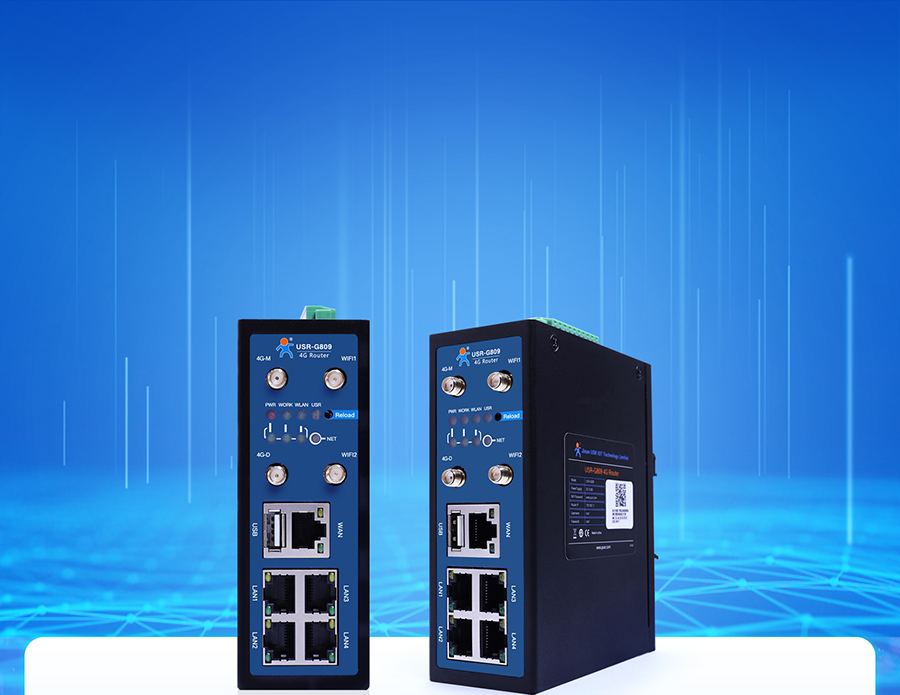

Industrial 4G LTE cellular VPN WiFi router USR-G809
Industrial 4G LTE cellular VPN WiFi router USR-G809
Freq. Bands: B1-B2-B3-B4-B5-B7-B8-B28 (Telstra and all other AU providers)
The USR-G809 is an industrial cellular VPN router that integrates 4G LTE, Wi-Fi, DIDO, serial port, Ethernet ports(4 LAN and 1 WAN), and VLAN, VPN technologies to provide state-of-the-art Internet connectivity and high-speed data access for equipment networking.
- Industrial design, metal enclosure, protection class IP30
- Wide input voltage DC 9-36V, with reverse polarity protection
- ESD, Surge, EFT/Burst protection
- Supports 3G/4G networks across Australia, supports APN / VPDN private network access
- Supports 2.4GHz WiFi, scaling more devices access, support wired and wireless connecting Internet
- Compatible with 5.8GHz WiFi(optional)
- Supports VPN(PPTP, L2TP, IPSec, OpenVPN, GRE), and VPN encryption function, suitable for various networking
- and high-security requirements Scenarios
Specifications
HardwareSpecifications |
||
Cellular Interface |
Antenna |
2x SMA-K Note North America models: 2 x SMA 4G antenna connectors. |
SIM card |
1 x (3 V & 1.8 V) Standard 2FF SIM, drawer-type sim card slots |
|
Ethernet |
1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation transformer protection |
|
4 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX,1.5KV network isolation transformer protection |
||
Indicators |
LED |
PWR: red, always on after powered on Work: green, blinking when the router is ready and working properly WLAN: green, always solid on when WiFi is enabled and working properly USR:user-defined. Net indicator: Red always on after connected to 2G network Green always on after connected to 3G network Orange always on after connected to 4G network Signal strength:3 solid bars, strongest signal |
Terminal block |
Pinout |

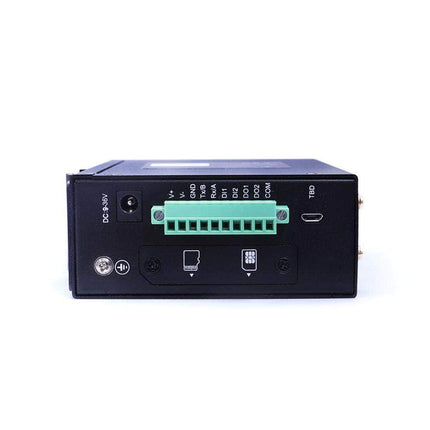

V+, V- : 2 cores terminal power supply socket,built-in power supply phase-reversal protection GND: ground terminal Tx/B: RS-232/RS485pin(setupby software) Rx/A: RS-232/RS485pin(setupby software) DI:2 x Digital input,passive switch DO:2 x Digital open collector output, max output 36 V, 300 mA COM: common terminal, use in conjunction with DOs |
WiFi Interface |
Standards & Frequency |
IEEE 802.11b/g/n,2.4GHz, AP mode |
Data speed |
IEEE 802.11b/g,maximum 54Mbps.IEEE 802.11n,maximum 150Mbps |
|
Antenna |
2x RP-SMA-K |
|
Transmission distance |
80 meters by line of sight. Actual transmission distance depends on the environment of the site. |
|
Power Supply |
Adaptor |
DC 12V/1A |
Connector |
DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or industrial terminal block,reverse polarity protection |
|
Input voltage |
DC 9~36V |
|
Working power |
Average 522mA/12V, Maximum 811mA/12V |
|
Serial Interface |
RS485/RS232(alternative) |
industrial terminal block. Note: RS232 default. |
Baud rate(bps) |
1200,2400,4800,9600,19200,38400,57600,115200,230400 |
|
Data bits |
8 |
|
Stop bits |
1,2 |
|
Parity |
NONE,ODD,EVEN |
|
Physical Characteristics |
Housing |
Metal shell,IP30 |
Dimensions |
125.0*103.0*45.0mm (L*W*H,antenna pedestal,terminal block and DIN Rail are not included) |
|
Installation method |
Ear mounting, DIN-Rail mounting |
|
EMC |
StaticIEC61000-4-2, level3 Pulsed Electric FieldIEC61000-4-4, level3 SurgeIEC61000-4-5, level3 |
|
Operating temperature |
-20℃~+70℃ |
|
Storage temperature |
-40℃~+125℃ |
|
Operating humidity |
5%~95%RH(non-condensing) |
|
Others |
Reload |
Pinhole button, restore factory defaults/firmware resume/firmware upgrading with USB |
TBD |
Debug interface (TTL Level) |
|
USB |
Firmware upgrading |
|
TF |
TF card slot |
|
Ground protection |
Screw |
|
Embedded Watchdog |
The device runs self-detection, auto recovers from malfunctions |
|
Certificate |
CE |
Multifunctional, high performance 4G industrial router
Realize data transparent transmission, Modbus RTU, and ModbusTCP conversion.
With 1*RS232/RS485
2*DI switch input
2*DO control output
Rich hardware interface, suitable for multiple scenariosAbnormal alarm, monitoring at any time
Real-time monitoring of the status of routers, and immediately send SMS and email alarms when abnormalities occur. It can also drive the DO relay for emergency braking, which greatly guarantees safety.
VLAN division, independent subnet
Improve network switching efficiency and ensure network stability; Improve network security and avoid broadcast storms; The network is more flexible, the data is safer,
and the operation is more
Data security, multiple VPN
G809 fully supports mainstream VPN protocols, including PPTP, L2TP, IPSec, OpenVPN, and GRE; Multiple high-encryption methods make data safe transmission up to financial-level standards.

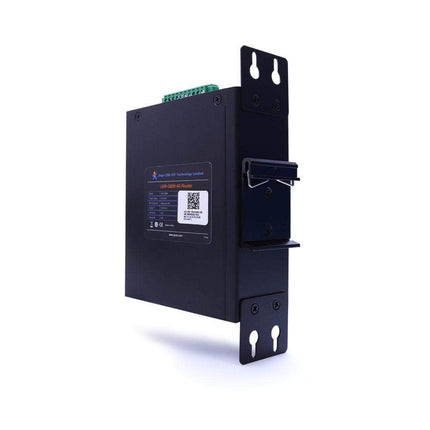

Wall-mounting and DIN-rail mounting options available
Two installation methods are free to choose, adapt to diverse on-site installation;
Only one device, one SIM card, one-time installation, once and for all;
It is convenient and fast, saves time and money, and labor, and can be used in
Diverse applications without fear of complexity
G809 wireless router provides wireless access to the network; Provide network for wireless devices, Ethernet devices, sensors, switch control, etc.; It can also expand network services on more devices through the switch plus serial device server ;
Applications
In the smart agriculture solution based on 4G industrial router G809, the environmental information collected by sensors is reported to the irrigation system server through the DTU function, and the site location is reported via the GPS data.The liquid level and soil moisture are used to determine whether to drive the irrigation system to achieve precise irrigation.
Meteorological monitoring case
The smart agricultural meteorological monitoring system, relying on the meteorological stations, collects meteorological data (atmospheric temperature, atmospheric humidity, atmospheric pressure, light intensity, wind speed, precipitation, wind direction, wind speed, etc.) in real-time without interruption, and transmits real-time video to the cloud platform in time to form a data report, which fully and intuitively presents the climate status.
Smart store solutions
The IP camera installed in the store sends the real-time video to the monitoring
center through a wired connection to the 4G industrial router G809, the access control switch, and infrared switches are connected to the DI input of the router to check the status of illegal breaking in, the DO output is used to control the automatic alarm.
This information is sent to the mobile phone of the management personnel
through a short message. As a core networking driver, G809 escorts the security of stores.
