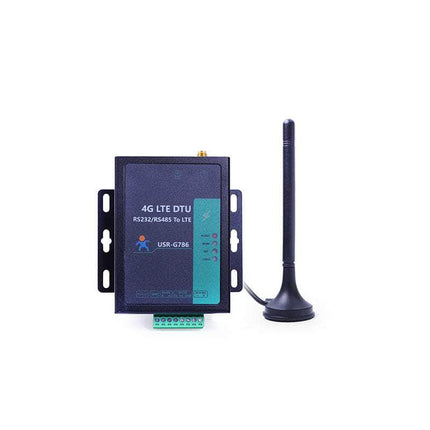

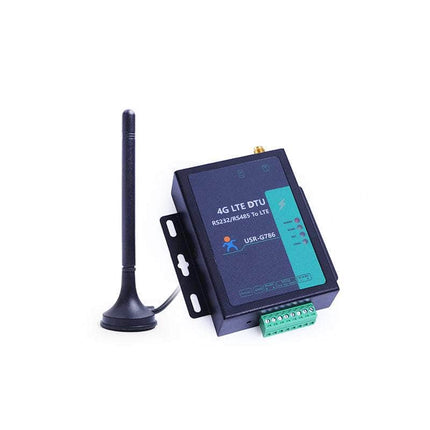

Industrial 4G/3G Serial RS485 Electrical Isolation Protection Cellular Modem USR-G786-G (Global Freq.)

Industrial 4G/3G Serial RS485 Electrical Isolation Protection Cellular Modem USR-G786-G (Global Freq.)

  • $210.00
  • Save $50
  • (Exc. GST)

  • Available in stock

  • Shopify secure badge
  • $ We Ship from our stock in AU (Perth), and Prices (AUD) are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders (Request for Quote)
  • $ We Accept Purchase Orders & Net30 Payment for Educational Institutes
  • Industrial 4G Serial RS485 Electrical Isolation Protection Cellular Modem USR-G786-G (Global Freq.)

    USR-G786-G is an RS485 Electrical Isolation Protection 4G IP cellular modem which has perfect functions and covers most of the conventional application scenarios. User can use the cellular modem USR-G786-G to realize data transmission between RS232 / RS485 and 4G network through simple configuration.


    • Global Bands, Covering Global Regions

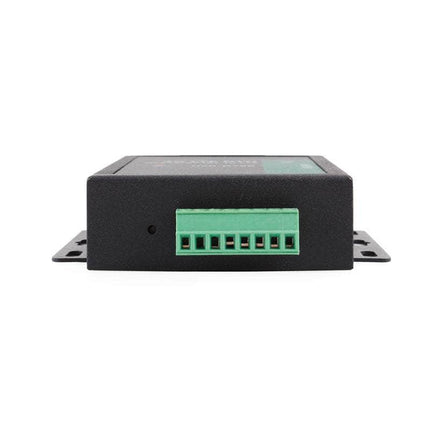

    • Terminal Interface
    • RS485 Electrical Isolation
    • High Reliability, High Rate
    • Low Latency
    • Support USR Cloud Platform
    • FOTA Remote Upgrade

    Basic Function


    G786-G has perfect functions and covers most of the conventional application scenarios. It supports bands B1/B2/B3/B4/B5/B6/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B38/B39/B40/B41, and has the characteristics of high rate and low latency. User can realize data transmission between RS232 / 485 and 4G network through simple configuration.


    Network transparent mode


    In this mode, user's serial device can directly send data to the network server through G786-G, G786-G can also forward the received server data to the serial device.


    In this mode, users do not need to pay attention to the data conversion process between serial data and network data packets, can achieve data transparent transmission between serial devices and network servers by simply configuring parameters.


    G786-G supports two independent sockets connection.

    Support protocol customization


    G786-G supports customized development based on many different protocols such as MQTT and Modbus required by users.


    In the network transparent mode, the user can set the device to send an identity package to the server. Identity package is to enable the server to identify the device, or as a password to obtain server function authorization. Identity package data can be an ICCID code, IMEI code, or user-defined data.


    In the network transparent mode, users can set the device to send the heartbeat package to meet specific needs. Heartbeat package can be sent to the network or the serial device. Sending to the network is to keep the connection stable and reliable while ensuring that the device is connected properly, the server can determine the online status of the device through the heartbeat package.


    (The contents of identity package and heartbeat package, heartbeat interval can be modified by AT command)

    Parameter Configuration


    Can be configured by serial/network/SMS AT commands, setup software.


    Serial AT command: In the network transparent mode, users can query and set parameters through "password + AT command" without switching to command mode.


    Network AT command: In the network transparent mode, users can query and set parameters by sending "password + AT command" through the network.


    SMS AT command: users can query and configure device parameters by SMS.

    RS485 Electrical Isolation Protection


    Terminal type, lightning surge protection. RS485 serial port supports 1KV surge protection, power isolation and over-current protection, which can effectively avoid the impact of environmental changes on the normal operation of the device.

    Remote Upgrade Management


    G786-G supports remote management platform,


    users can quickly realize the automatic upgrade of the device firmware, which helps to improve the performance of the device, ensuring the long-term and reliable operation of the device.

    More Characteristic Protection


    APN Private Network


    EFT impulse Testing




    Hardware Watchdog


    Ensure the security
    of data transmission


    RS485 Power Supply 2KV


    Contact ±8KV


    Watchdog circuit,
    stable operation
    without downtime
    in 24 hours





    Smart Agriculture Network Transmission


    G786-G quickly uploads the temperature/humidity, light, carbon dioxide and other values collected by various sensors to the cloud platform through the 4G wireless network. Through data summary and analysis, Remote Monitoring System can remotely control the start and stop of fans, sprinkler irrigation, drip irrigation, lamps and other equipment to provide a good greenhouse environment for crop growth.


    This application can realize real-time monitoring of greenhouse data, reduce human operation and maintenance costs, optimize crop growth environment, and promote the development of agricultural IoT.

    Smart Light Control


    G786-G connects the serial port to the field controller, accesses the remote monitoring centre through 4G wireless network to realize transparent transmission of data.


    The monitoring centre can remotely realize the grouping or batch control of street lights as needed, automatically or manually turn on / off the street lights. At the same time, it can also remotely monitor technical parameters such as voltage, current, and power, which greatly improves the level of urban intelligent management.

    Network Monitoring of Oil and Gas Pipeline


    G786-G supports 4G/3G high-speed network, high rate, low latency, fast response, and can quickly report gas flow, pressure, temperature and other data collected by terminal equipment to the SCADA monitoring system.  SCADA monitoring system dynamically displays the data changes of each monitoring point and shows the alarming data, to provide protection for life and property safety.


    • Development Files

    • Documents
    RoHS Certificates for 4G LTE modem
    USR-G786 User Manual
    • Utilities
    USR-CAT4 V1.0.2
