Industrial-Grade
- -20 to 50 °C Operating Temperature
- 5 to 24 VDC Wide Input Voltage Range
- Heavy Cast Aluminum Casing

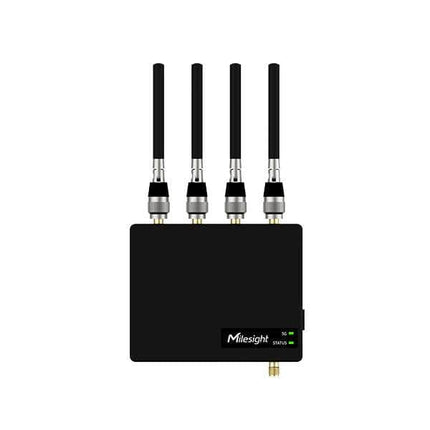

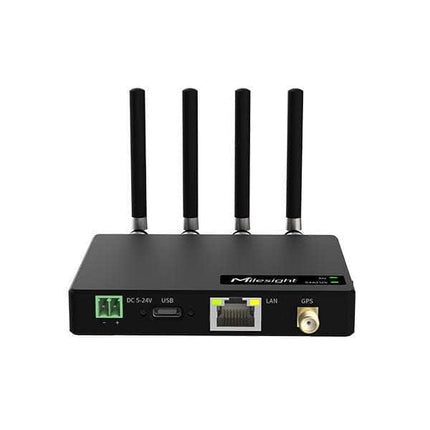

Milesight UF31 5G Dongle Modem Ultra Fast
Milesight UF31 5G Dongle Modem Ultra Fast
The UF31 5G Dongle is a 5G-to-wired device that provides USB Type-C for data & power transmission. It is born to offer a 4G to 5G migration solution for mobility, embedded system, and general-purpose applications in the most economical and effortless way.
Ultra Fast 4G/5G Connectivity
- 5G Sub-6/LTE/WCDMA
- 4.13 Gbps Downlink Peak Rate
- 4 × 4 MIMO Downlink
- SA & NSA Modes
Plug & Play Networking
- No Configuration Is Required
- No Need for Software Installation
Delivering 5G connection by simply plugging the UF31 5G dongle to the machines or robots, as long as there is power.

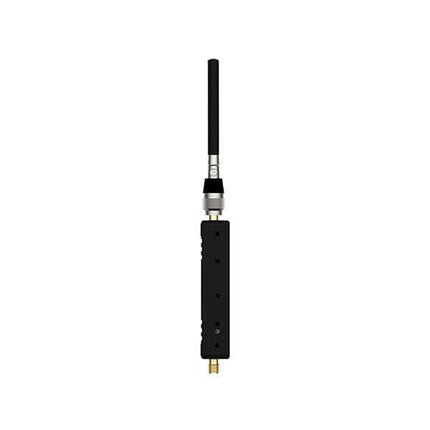

Pint Size Design
The pint-size (90 x 72 x 15 mm) makes UF31 is easily to be installed in limited space like the interior of machines or robots.
Specifications
| Hardware System | CPU | Quad-core ARM Cortex-A55，2 GHz |
| Memory | 1 GB LPDDR4X RAM and 1 GB NAND Flash | |
| Cellular Interface | Network | 5G NR SA & NSA/4G LTE/WCDMA |
| Frequency | 5G Sub-6: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79 LTE FDD: B1/B3/B5/B7/B8/B18/B19/B20/B28/B32 LTE TDD: B38/B40/B41/B42/B43/B46 WCDMA: B1/B5/B8 |
|
| Antenna Connector | 4 × 50 Ω SMA Connectors (Center PIN: SMA Female) | |
| SIM Slots | 1（Micro SIM-3FF） | |
| Ethernet Interface | Numbers | 1 × 10/100/1000 Mbps LAN Port |
| Mode | Full or Half Duplex (Auto-Sensing) | |
| GNSS | Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| Technology | GPS/GLONASS/Beidou/Galileo/QZSS | |
| Others | USB | 1 × USB 3.0 (Type-C) for Power Supply, Network Supply and Debug |
| Reset Button | 1 × RESET (Internal) | |
| LED Indicators | 1 × STATUS，1 × Cellular Network | |
| Built-in | Watchdog, Timer | |
| Software | Network Protocols | IPv4/IPv6, TCP, UDP, DHCPv4/DHCPv6, HTTP, HTTPS, DNS, ARP, Telnet, SSH, etc. |
| Security 1 | Access Control, Port Mapping, Custom Rules | |
| Management | Web, CLI, DeviceHub | |
| Power Supply | Power Input | 1. 5-24 VDC, with Surge-Protection and Reverse Polarity Protection 2. 5V/3A by USB Type-C Port |
| Power Connector | 2-pin 3.5 mm Terminal Block | |
| Physical Characteristics | Ingress Protection | IP30 |
| Housing & Color | Metal, Black | |
| Dimension | 90 x 72 x 15 mm (3.54 x 2.83 x 0.59 in) | |
| Installation | Desktop, Wall Mounting, DIN Rail Mounting | |
| Environmental | Operating Temperature | -20°C to +50°C (-4℉ to +122℉) |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) | |
| Ethernet Isolation | 1.5 kV RMS | |
| Relative Humidity | 0% to 95% (Non-condensing) at 25°C/77℉ |
