Phidget RFID Read-Write Enclosed 1024_0B

  • $119.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts

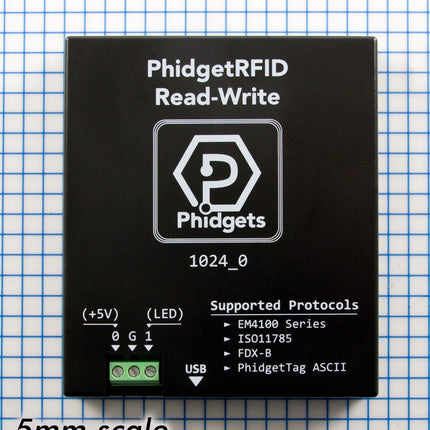

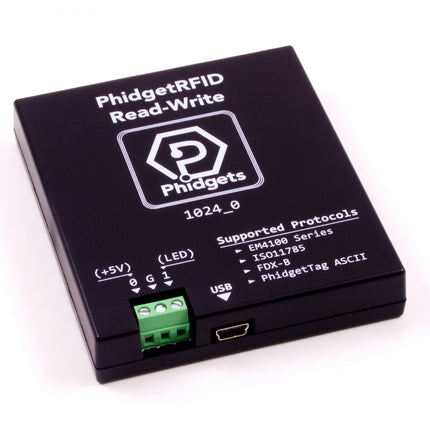

  • Phidget RFID Read-Write Enclosed 1024_0B

    Note: The 1024_0B is identical to the 1024_0, except that it comes pre-assembled in a plastic shell enclosure and you have the option of which length of USB cable you want to include.

    The PhidgetRFID Read-Write reads RFID tags that are brought in close proximity to the reader and returns the tag identification number. Writing data to T5577 tags is also supported. For a list of compatible RFID tags that we have available, see the Compatible Products tab.

    RFID (Radio Frequency IDentification) systems use data strings stored inside RFID tags to uniquely identify people or objects when their tags are scanned by an RFID reader. These types of systems are found in many applications such as passport protection, animal identification, inventory control systems, and secure access control systems.

    The PhidgetRFID Read-Write supports reading and writing in 3 protocols; EM4100, ISO11785 FDX-B, and PhidgetTag. The PhidgetTag protocol simply stores up to 24 ASCII characters to the tag, eliminating the necessity for a table of corresponding tag numbers and names in your program. Phidgets sells EM4100 read-only tags that can be read with either of our RFID readers, and writable tags which can be written with the 1024 using any protocol. Any 3rd-party EM4100 or ISO11785 tags can be read.

    Because passive tags require a strong RF field to operate, their effective range is limited to an area in close proximity to the RFID reader. The distance over which the RFID tag is usable is affected by such things as the tag shape and size, materials being used in the area near the reader, and the orientation of the reader and tag in respect to each other and in their operating environment. The smaller a tag, the closer it must be to the reader to operate.

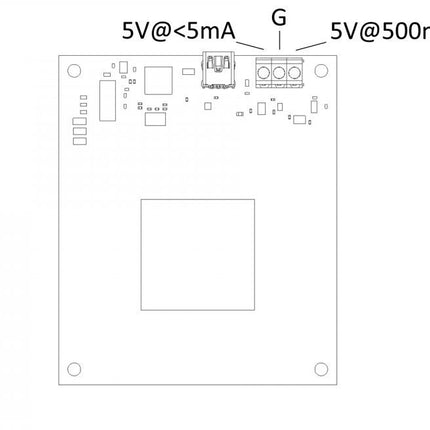

    The 1024 has two digital outputs, labelled "+5V" and "LED". These work the same as any other Phidgets Inc. digital output, except that the "+5V" output has a higher current rating. You can use these outputs to have an LED or buzzer to indicate when a tag read has occured.

    Product Specifications

    Board
    Controlled By USB (Mini-USB)
    API Object Name RFID
    USB Speed Full Speed
    RFID Reader
    API Object Name RFID
    Antenna Resonant Frequency Min 125 kHz
    Antenna Resonant Frequency Max 150 kHz
    Protocol EM4100, ISO11785 FDX-B, PhidgetTag
    USB Speed Full Speed
    Electrical Properties
    Available External Voltage (+5V) 5 V DC
    Available External Voltage (LED) 5 V DC
    Available External Current (+5V) 400 mA
    Available External Current (LED) 16 mA
    Output Impedance (LED) 250 Ω
    Current Consumption Min 27 mA
    Current Consumption Max 150 mA
    Physical Properties
    Recommended Wire Size 16 to 26 AWG
    Operating Temperature Min 0 °C
    Operating Temperature Max 70 °C
    Digital Outputs
    Number of Digital Outputs 2
    Digital Output Voltage Min 0 V DC
    Digital Output Voltage Max 5 V DC
