Phidget RFID Tag - 30mm Disc Black - 3911
Phidget RFID Tag - 30mm Disc Black - 3911

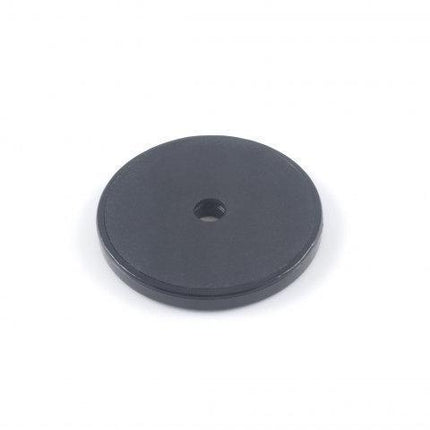

A plastic disc with an EM4012 tag embedded in it. A nail or screw through the hole in the center makes for easy mounting.
This plastic RFID tag has a robust design for factory or manufacturing use. It can be attached to anything using a screw or bolt through the hole in the center of the tag or stuck on with adhesive. The tag contains a unique ID that can be read by the 1024 – RFID reader at a distance of 11cm or less.
Product Specifications
Tag Properties | |
---|---|
Protocol | EM4102 |
Tag Characteristics | Passive, Read-Only |
Transmission Frequency | 125 kHz |
Encoding Method | Manchester |
Message Length | 64 bit |
Unique ID Length | 40 bit |
Typical Read/Write Distance (with 1024 - PhidgetRFID R-W) |
100 mm |
Physical Properties | |
Material | ABS |
Color | Black |
Diameter | 30 mm |
Hole Diameter | 4 mm |
Thickness | 3.2 mm |
Weight | 2.6 g |
IP Rating | IP67 |
