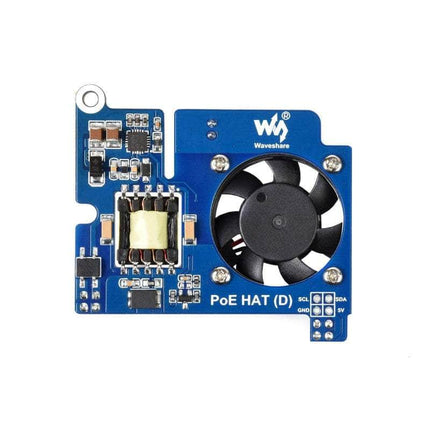

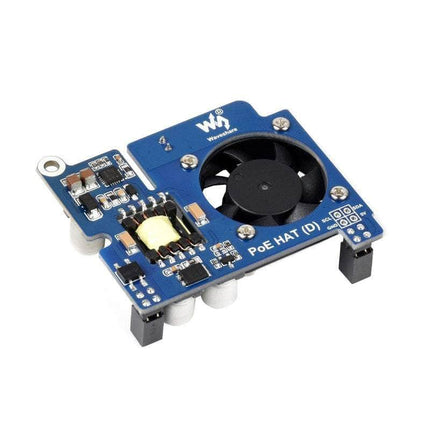

Power over Ethernet HAT (D) for Raspberry Pi
Power over Ethernet HAT (D) for Raspberry Pi
The PoE HAT (D) is an 802.3af-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af-compliant power-sourcing equipment, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
- Supports Raspberry Pi 3B+/4B, compatible with the Raspberry Pi official case
- PoE (Power Over Ethernet) capability, IEEE 802.3af-compliant
- Fully isolated switched-mode power supply (SMPS)
- Onboard high-speed active cooling fan, better heat dissipation
Specifications
| POE POWER INPUT | 37V ~ 57V DC in |
|---|---|
| POWER OUTPUT | 5V 2.5A DC out |
| NETWORK STANDARD | IEEE 802.3af PoE |
| DIMENSIONS | 58.90 × 54.92mm |

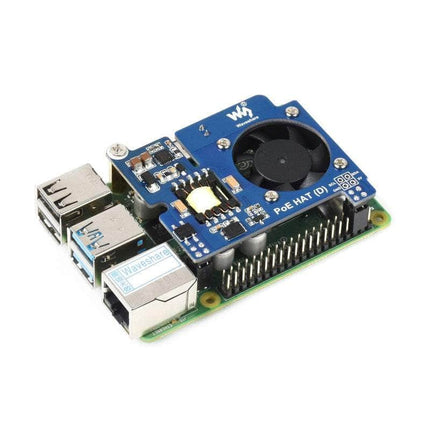

Application Example
Power Over Ethernet
Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable
Raspberry Pi, official cases, and PoE equipment are NOT included.

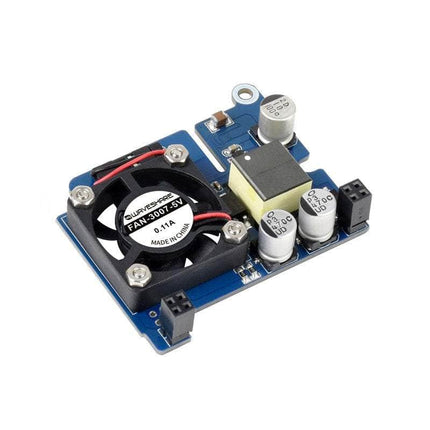

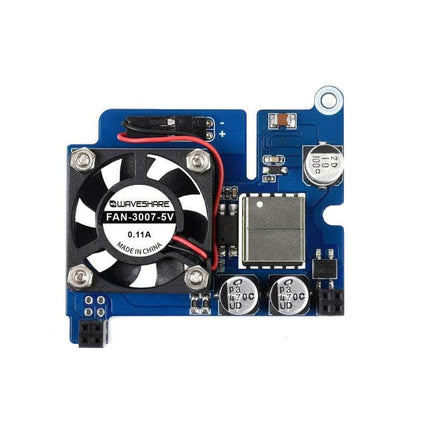

Active Cooling Fan
Onboard Resources
Outline Dimensions
WIKI: PoE_HAT_(D)
