TTL To RS485 Isolated Converter DIN-Rail

  • $27.00
  • Save $14
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

    TTL To RS485 Isolated Converter DIN-Rail

    DIN Rail-Mount TTL To RS485 Galvanic Isolated Converter, 600W Lightningproof & Anti-Surge, Multi-Isolation Protection

    Features:

    • Compatible with TTL/RS485 standard, converting the TTL signal into differential RS485 signal, supporting half-duplex communication
    • Compatible with 3.3V ~ 5V TTL signal level, provides anti-reverse and over-voltage protection for power supply interface
    • Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal
    • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
    • Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightning proof & anti-electrostatic
    • Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock resistance
    • Onboard RS485 output terminal 120R resistor, enabled/disabled via switch
    • Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective

    Specifications

    PRODUCT TYPE Galvanic isolated TTL To RS485 converter
    POWER SUPPLY INTERFACE Power supply 3.3V ~ 5V
    Protection over-voltage, reverse-proof
    DEVICE PORT TTL/RS485 standard compatible
    TTL Connector screw terminal
    Transmission distance about 10m
    Transmission mode point-to-point
    RS485 Connector screw terminal
    Protection 600W lightning proof and surge-suppress, 15KV ESD protection
    Terminal resistor 120R, enabled/disabled via switch
    Transmission Distance About 1.2km
    Transmission Mode point-to-multipoint (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
    APPEARANCE Case Rail-mount ABS case, suitable for 35mm DIN rail
    Dimensions 91.6 × 58.7 × 23.3mm

    Primary Function

    Converting The TTL Signal Into a Balanced Differential RS485 Signal
    For Interface Converting, Expanding Nodes And Long-Distance Communication

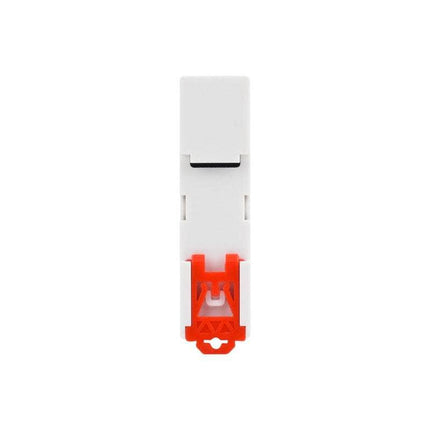

    DIN Rail-Mount Support

    Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely

    Multiple Protection, Safe And Stable

    Onboard power and signal isolation, provide stable isolated voltage, high reliability and strong anti-interference. Onboard Lightningproof Diodes and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning proof & anti-electrostatic. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage protection, improves shock resistance

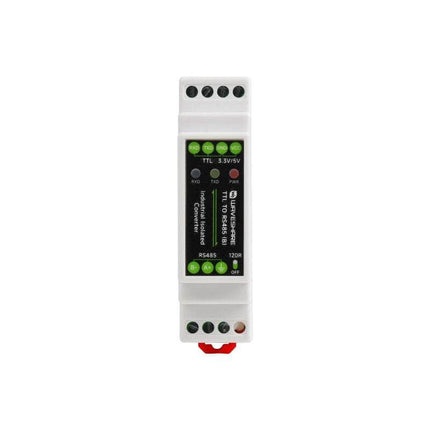

    Interface Introduction

    TOP SIDE SCREW TERMINAL BOTTOM SIDE SCREW TERMINAL
    VCC Power Input
    DC 3.3V~5V power supply
    DIP SWITCH 120R enable switch
    GND Ground SGND RS485 signal ground
    TXD TTL transmit data pin A+ RS485 differential signal positive
    RXD TTL receive data pin B- RS485 differential signal negative

    Communication Connection Diagram

    TTL convert to RS485, point to point, half-duplex communication, suitable for interface conversion


    TTL convert to RS485, point-to-multipoint, half-duplex communication, suitable for expanding nodes


    Two groups TTL To RS485 conversion, point-to-point, half-duplex communication, suitable for extending the communication distance of TTL


    Application Examples

    The TTL To RS485 (B) can be widely used for point-to-point, point-to-multipoint, long distance cascaded communication network between two hosts, or between host and MCU/Peripheral. It also can be used in the application scenarios that require TTL To RS485 conversion such as Industrial Automation and IoT.

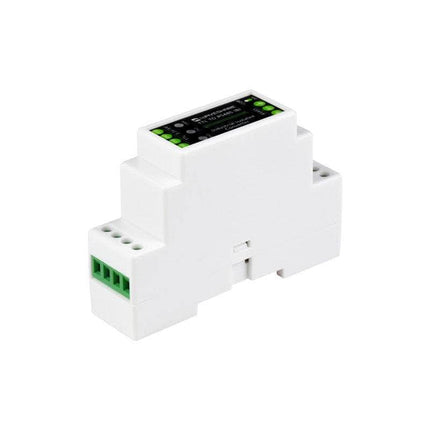

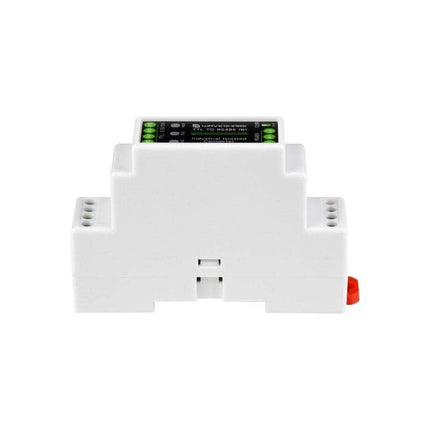

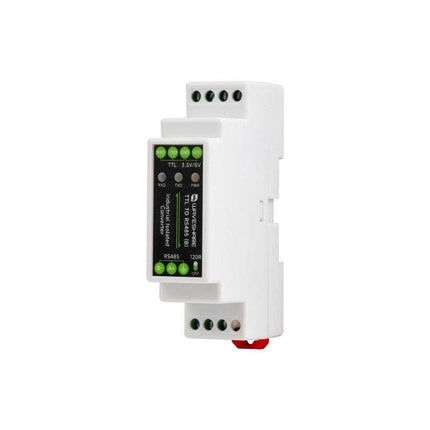

    Product Show

    Dimensions
