Milesight UPS01 Uninterruptible Power Supply 12000 mAh Compact Battery Backup
Milesight UPS01 Uninterruptible Power Supply 12000 mAh Compact Battery Backup
- Compact Design with IP67 and IK08 Protection
- High Capacity up to 12000 mAh, Long Endurance, Plug and Play
- Data Protection
- Plug and Play
- Real-time Alarming
- Tricolor Indicators
The UPS01 is building a successful power supply solution featured with 12000 mAh that is able to serve connectivity needs for terminal devices for up to 32 hours.
Data Protection
By offering a resilient power supply, the UPS01 is poised to ensure seamless data transmission between terminal devices and remote platforms when a power outage happens. Besides, the heating film also allows it to work in a low-temperature environment for continuous power supply.

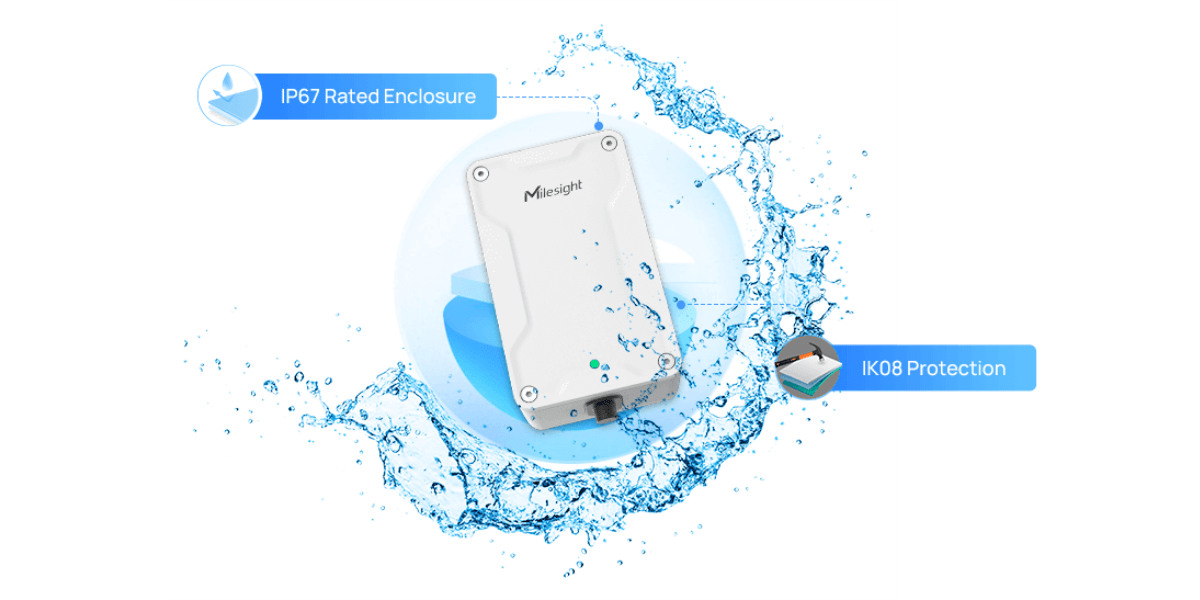

Compact Design with IP67 and IK08 Protection
With a greater reliance on sophisticated technology, the UPS01 favors a rugged design with IP67 and IK08 and can be served in the most demanding environment and meet mission-critical.
Real-time Alarming
The UPS01 owes its powerful function to cutting-edge technology and ensures the device and network resilience while sending alarms of power outages, saving manufacturers expenses of unnecessary maintenance downtime and keeping your business operating without interruption.
Typical Application
![](/static/pc/en/product/accessories/uninterruptible-power-supply-ups101/ups01-installation-03.png?t=1698205817946)
DIN Rail Mounting
![](/static/pc/en/product/accessories/uninterruptible-power-supply-ups101/ups01-installation-01.png?t=1698205817946)
Pole Mounting
![](/static/pc/en/product/accessories/uninterruptible-power-supply-ups101/ups01-installation-02.png?t=1698205817946)
Wall Mounting
Specifications

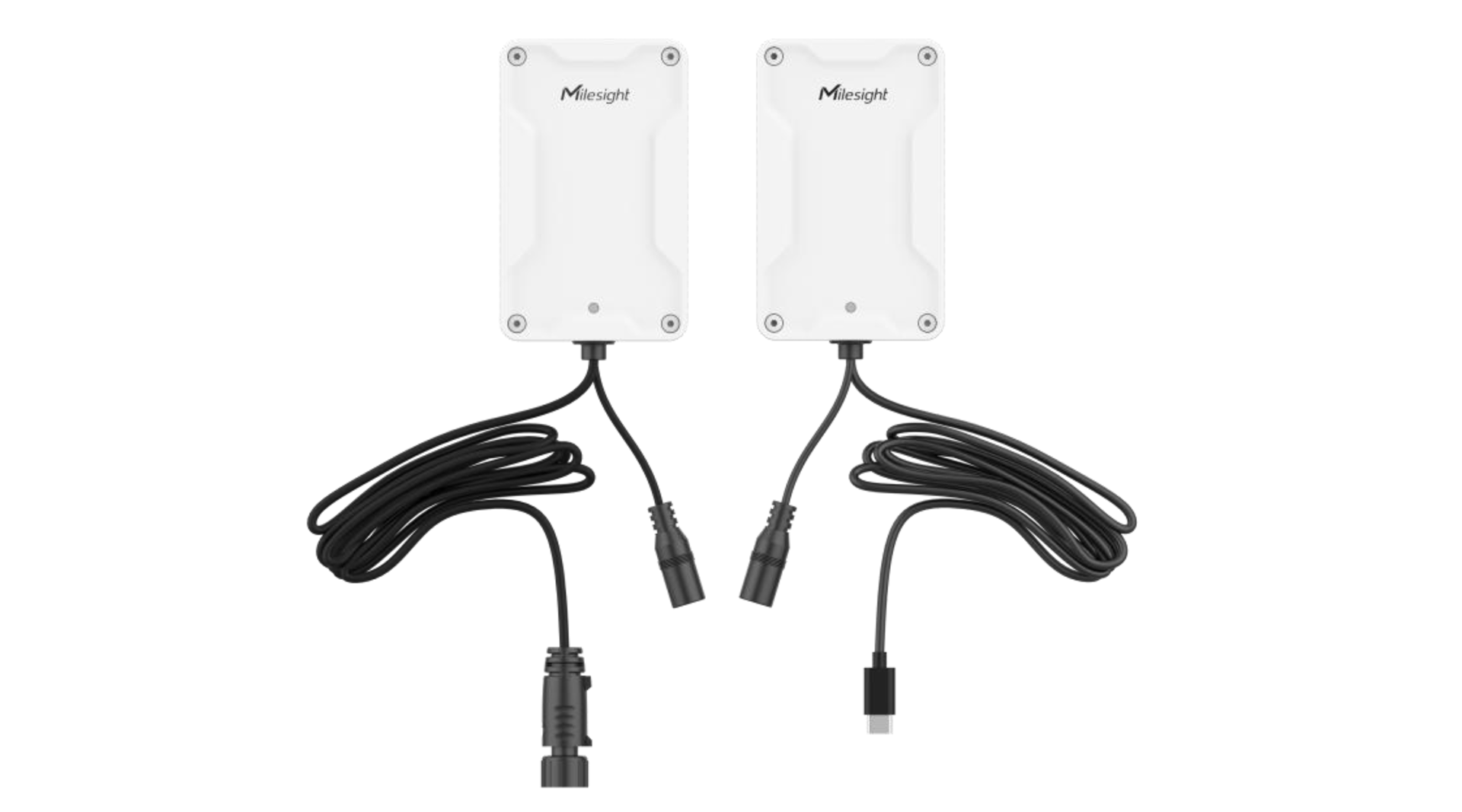

- Type-C Version
- M12 Version
Power | |
---|---|
Power Input | 9~20V⎓2A |
Input Connector | DC Jack Female Connector |
Power Output | 5V⎓4A |
Output Connector | Type-C |
Battery Capacity | 4 x 3000mAh Lithium-ion Rechargeable Batteries |
Battery Supply Time1 | 6 ~ 32h |
Others | |
LED Indicator | 1×Traffic Light Indicator (Battery Capacity & Diagnose) |
Button | 1×Reset Button (Internal) |
Software Features | Power Monitoring, Alarm, Upgrade (Only with Milesight Devices ) |
Physical Characteristics | |
Cable Length | DC IN: 30 cm Type-C: 100 cm |
Ingress Protection | IP67 & IK08 |
Material & Color | Aluminum, White & Silver |
Dimension | 96×60×45mm (3.78×2.36×1.77 in) (Without Cable) |
Operating Temperature | Charge Temperature: -20°C to +45°C (-4℉ to +113℉) Discharge Temperature: -20°C to +60°C (-4℉ to +140℉) |
Relative Humidity | 0% - 95% (Non-condensing) |
Installation | Wall Mounting, DIN Rail Mounting, Pole Mounting, Desktop Mounting |
