Wio-E5 CAN FD RS485 LoRaWAN Dev Kit

  • $139.00
  • Save $20
  • (Exc. GST)


  • Available in stock

  • $ We Ship from our stock in AU (Perth) with pickup option, and Prices are Exc. GST
  • $ We Offer Quantity Discounts for Large Orders 10+ qty (Request for Quote)
  • $ We Accept Purchase Orders & Net 30 Payment for Eligible Accounts
  •

    Wio-E5 CAN FD RS485 LoRaWAN Dev Kit

    Wio-E5 CAN Development Kit is based on the Wio-E5 STM32WLE5JC Module and supports CAN FD, CAN2.0, and RS485 communication. It supports industrial standards, provides a waterproof case and solar charging interface, and comes with high extensibility and compatibility. It's ideal for car hacking and LoRaWAN Long Range sensor network management.

    Features

    • Support various communication methods: CAN FD, CAN 2.0, and RS485
    • High extendability with various sensors: full GPIOs led out to rich interfaces, including RS-485, Grove modules for GPS, environmental detection, etc
    • High compatibility: support Global LoRaWAN Long Range frequency plan with a long-distance transmission range of 10km (ideal value in open area)
    • Easy to use: User-friendly waterproof case & solar charging interface provided for better outdoor deployment and enable temporary use when lacking an external power source
    • Support industrial standards: a wide working temperature at -40 ℃ ~ 85℃, high sensitivity between -116.5 dBm ~ -136 dBm, and power output up to +20.8dBm at 3.3V

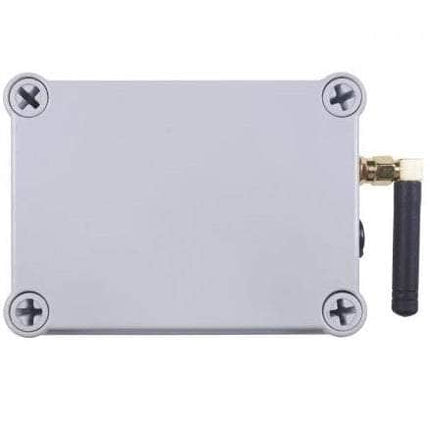

    It consists of a Wio-E5 CAN bus Dev Board, an antenna(EU868/US915), and a waterproof case. The embedded Wio-E5 STM32WLE5JC Module supports Long Range protocol on the global frequency band. It leads out full GPIOs of Wio-E5 supporting various data protocols and interfaces including RS-485, Grove, male/female headers, etc. It would be a perfect choice for fast testing and rapid prototyping of your Long Range IoT projects. Also, the Wio-E5 STM32WLE5JC Module is the world-first combo of Lang Range RF and MCU chip into one single tiny chip and is FCC and CE certified. It is powered by ARM Cortex-M4 core and Semtech SX126X Long Range chip, supports Long Range protocol on the worldwide frequency and (G)FSK, BPSK, (G)MSK, and Long Range modulations.

    It features an ultra-long transmitting range of up to 10km in an open area, extremely low chip power consumption which the sleep current is as low as 2.1 uA(WOR mode), and user-friendly interfaces which are developed to unlock the full functionality of the Wio-E5 module, CAN FD and CAN 2.0 communication, it has led out full 28 pins of Wio-E5 and provides rich interfaces including Grove connectors, RS-485 terminal, male/female pin headers for you to connect sensors and modules with different connectors and data protocols, saving your time on wire soldering. You could also easily power the board by connecting the battery holder with 2 AA batteries, enabling temporary use when lacking an external power source. It is a user-friendly board for easy testing and rapid prototyping. It is designed with industrial standards with a wide working temperature at -40 ℃ ~ 85℃, high sensitivity between -116.5 dBm ~ -136 dBm, and power output up to +20.8dBm at 3.3V.

    Learn more about Wio-E5 here.

    What is CAN-BUS?

    CAN stands for Controller Area Network, it is used to allow microcontrollers and devices to communicate with each other within a vehicle without a host computer which allows for control and data acquisition. These devices are also called Electronic Control Units (ECU) and they enable communication between all parts of a vehicle.

    Today, you can find up to 70 ECUs in a modern car. CAN is a serial communication bus designed for industrial and automotive applications. For example, they are found in vehicles, farming equipment, industrial environments, etc.

    How does CAN-BUS work?

    The fuel level, door sensors, odometer, and many more parts of a car have to communicate with each other somehow, and CAN BUS is what they used to do. These CAN-compatible components, called “nodes” are connected with a 3-string copper wire, with no central router to govern the data flow. Every node can hear the messages of every other node.

    Every node has an ID, where the ones with the higher priority ID can have the priority to “talk” first while the others “listen”. This is to ensure that there are never two nodes talking at the same time. The most significant benefit of CAN-BUS is to be able to just connect components without having to worry about signal routing.

    Learn more about CAN-BUS here.

    You can also interact with the devices through a Human-Machine Interface(HMI):

    • Wio Terminal---Sense and tag the Real-World data with over 300 Groves created by Seeed and visualize through Azure IoT Central Platform to create an end-to-end IoT project.
    • reTerminal CM4104032---reTerminal is powered by a Raspberry Pi Compute Module 4 (CM4) which is a Quad-Core Cortex-A72 CPU running at 1.5GHz and a 5-inch IPS capacitive multi-touch screen with a resolution of 720 x 1280.

    Application

    • Long Range sensor network management: Many sensors in the industry are transmitted through CAN BUS. With the Wio-E5 CAN Dev board you can use the on-board CAN-BUS function to read the sensors and send the data through Long Range.
    • Car hacking: Since the circuit board can receive 5-28V input, the user can connect the circuit board to the OBD interface, get the data of the car.

    Application 1: Car Tracking System

    Materials:

    Wio - E5 CAN Dev Kit Grove - GPS(Air530) Wio Terminal Grove - Wio-E5

    Descriptions:

    What a perfect combo for you to make a GPS tracking system! Connect the grove interface on the Wio-E5 CAN Dev board to a grove - GPS(Air530), which gives you real-time insights into your vehicle. And you can communicate to your car with a Wio terminal connecting a Grove - Wio-E5 since two Wio-E5 can detect each other, also take the advantage of the embedded buzzer and LED of the Wio Terminal to create an alarm system!

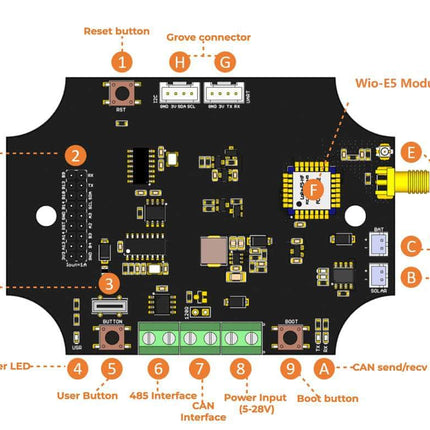

    Hardware Overview





    Specification

    Items

    Specifications

    Voltage supply

    5V/USB, 3.7V Lipo Battery, 4.5~28V DC input

    Voltage output

    3.3V

    Power output

    Up to 20.8dBm at 3.3V

    Frequency

    AU915/EU868/US915/AS923/KR920/IN865

    Protocol

    LoRaWAN

    Sensitivity

    116.5dBm~-136dBm

    Modulation

    Long Range, (G)FSK, (G)MSK, BPSK

    CAN 2.0 speed

    Up to 1Mb/s

    CAN FD speed

    Up to 5Mb/s



    Documents:

    Wio-E5 CAN Dev Kit datasheet

    Wio-E5 datasheet and specifications
    Wio-E5 AT Command Specification
    STM32WLE5JC Datasheet
